P20: Pneumatic Piston Seals Manufacturers, Suppliers, Exporters

Max Spare : P20

Profile : Piston Seals

Details :

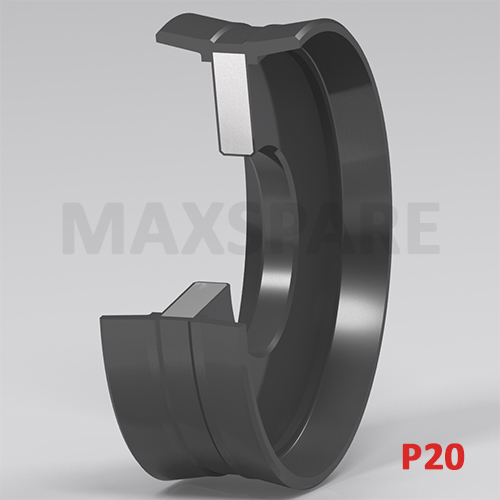

P20 is a complete double acting pneumatic piston seal with a double cup seal and a vulcanized metal disc support. It performs both sealing and guiding functions. It is easily fastened to the piston without additional sealing element. This profile also available for single acting pistons (refer Maxspare P19) with identical housing. Standard elastomer is Nitrile rubber 80 Shore A and vulcanized to a metal disc. FKM is recommended for high temperature application.

MATERIAL

Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C (NBR)
	:	-40° C to + 220° C (FKM)
Pressure	:	12 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Dry and oil-free air.

APPLICATION

Nitrile Rubber 80/85 Shore A.FKM Rubber 80/85 Shore A.

FEATURES

Prevent metallic contact between the cylinder and piston.
Muti-functional sealing element – Sealing, guiding and cushioning element.
Long service life.
Easy Installation.
Low friction and smooth running due to sealing geometry retaining the lubricating film.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P200320802	0.00	32.00	4.5/14.70	NBR	DUP-400
P200050801	5.00	16.00	3.60/12.00	NBR	DUP-486
P200051002	5.00	20.00	3.50/6	NBR	DUP-470
P200060803	6.00	20.00	4.00/12.00	NBR	DUP-101
P200060804	6.00	28.00	4.00/12.00	NBR	DUP-169
P200060901	6.35	38.10	3.00/12.70	NBR	DUP-133
P200060802	6.35	44.45	3.5/12.7	NBR	DUP-249
P200071001	7.95	56.13	7.62/29.21	NBR	DUP-317
P200080818	8.00	20.00	15.00	NBR	DUP-132
P200081006	8.00	25.00	4.00/12.00	NBR	DUP-385
P200086402	8.00	26.00	9.50	FKM	DUP-390
P200800803	8.00	32.00	15	NBR	DUP-143
P200080815	8.00	32.00	3.50/11.30	NBR	DUP-369
P200080819	8.00	32.00	5.00/13.50	NBR	DUP-145
P200081004	8.00	32.00	5/11.60	NBR	DUP-471
P200080814	8.00	35.00	15	NBR	DUP-376
P200086601	8.00	35.00	15.70	FKM	DUP-351
P200080806	8.00	35.00	18	NBR	DUP-208
P200080813	8.00	40.00	4.6/18	NBR	DUP-307
P200080809	8.00	50.00	18	NBR	DUP-229
P200080808	8.00	50.00	4/19.60	NBR	DUP-215
P200080817	8.00	63.00	6.00/22.00	NBR	DUP-474
P200081005	8.50	50.00	17.50	NBR	DUP-123
P200090901	9.50	61.00	4/15	NBR	DUP-343
P20009C301	9.52	43.65	25.40	XNBR	DUP-226
P200090902	9.52	50.80	4/14.30	NBR	DUP-348
P200090807	9.52	53.97	3.17/14.28	NBR	DUP-264
P200096401	9.52	60.32	5/14.47	FKM	DUP-313
P20009C302	9.52	63.50	25.4	XNBR	DUP-235
P200090804	9.52	63.50	3.5/14.3	NBR	DUP-239
P200090903	9.52	65.00	3.5/14.30	NBR	DUP-128
P20090802	9.60	56.00	3.3/14	NBR	DUP-245
P200090803	9.60	69.85	3.3/14.2	NBR	DUP-241
P200100801	10.00	40.00	4/18	NBR	DUP-137
P20010S801	10.00	40.00	5.00/18.00	NBR	DUP-492
P200100905	10.00	40.00	6.50/24	NBR	DUP-355
P200100912	10.00	40.00	7/18	NBR	DUP-466
P200106601	10.00	50.00	18	FKM	DUP-346
P200106503	10.00	50.00	20.50	FKM	DUP-148
P200100802	10.00	50.00	4.60/18	NBR	DUP-213
P200100808	10.00	50.00	4/10	NBR	DUP-316
P200100909	10.00	50.00	4/14	NBR	DUP-380
P200100901	10.00	50.00	4/18	NBR	DUP-281
P20010S802	10.00	50.00	5.00/18.00	NBR	DUP-491
P200106501	10.00	50.00	5/18.00	FKM	DUP-388
P200100903	10.00	50.00	5/21	NBR	DUP-333
P200100904	10.00	50.00	6.50/24	NBR	DUP-354
P200106401	10.00	63.00	16.00	FKM	DUP-273
P200100810	10.00	70.00	4.60/13.00	NBR	DUP-481
P200100902	10.20	45.00	4/15.00	NBR	DUP-318
P200100913	10.20	50.00	5.00/15.00	NBR	DUP-159
P200116501	11.00	50.00	6/15.00	FKM	DUP-118
P200116401	11.00	53.00	6/15	FKM	DUP-337
P200120811	11.50	107.95	4.5/20.5	NBR	DUP-244
P200120820	12.00	60.00	20	NBR	DUP-454
P200120806	12.00	60.00	25	NBR	DUP-144
P200120804	12.00	63.00	22	NBR	DUP-146
P200120807	12.00	70.00	22	NBR	DUP-141
P200121004	12.00	70.00	8/25	NBR	DUP-358
P20012T201	12.00	72.00	6.00/20.00	SILICON	DUP-409
P200120802	12.00	80.00	30	NBR	DUP-140
P200120821	12.00	80.00	5.00/22.00	NBR	DUP-463
P200120822	12.00	80.00	5/25	NBR	DUP-468
P200120814	12.00	90.00	25	NBR	DUP-288
P200120816	12.00	100.00	6.6/25	NBR	DUP-308
P200120823	12.00	100.00	8.00/25.00	NBR	DUP-483
P200120825	12.00	120.00	3.00/26.00	NBR	DUP-125
P200120819	12.70	76.20	3.5/14.30	NBR	DUP-403
P200120904	12.70	76.20	3.50/14	NBR	DUP-349
P200120803	12.70	90.40	4.76/19.05	NBR	DUP-328
P200120801	12.70	100.00	25	NBR	DUP-154
P200120818	12.70	101.60	5.95/19.05	NBR	DUP-352
P200120401	12.70	152.40	6.35/23.81	NBR	DUP-247
P200121005	12.72	92.07	31.75	NBR	DUP-227
P200120812	12.80	101.60	5/17.6	NBR	DUP-242
P200130801	13.00	94.50	8.50/26.00	NBR	DUP-478
P200140801	14.00	63.00	22	NBR	DUP-206
P200150902	15.00	63.00	6/27.00	NBR	DUP-397
P200160818	16.00	25.00	4.00/12.00	NBR	DUP-153
P200160815	16.00	50.00	4.60/18.00	NBR	DUP-155
P200161004	16.00	50.00	5/18	NBR	DUP-131
P200166601	16.00	50.00	5/18	FKM	DUP-407
P20016S701	16.00	50.00	5/18	NBR	DUP-461
P200164305	16.00	55.00	5/20	SILICON	DUP-382
P20016S802	16.00	60.00	6.00/25.00	NBR	DUP-472
P200160805	16.00	63.00	22	NBR	DUP-232
P200160904	16.00	63.00	4/21.50	NBR	DUP-114
P200160903	16.00	63.00	7.50/29	NBR	DUP-353
P200160811	16.00	75.00	15/33	NBR	DUP-389
P200160813	16.00	80.00	10/23	NBR	DUP-415
P200160910	16.00	80.00	12/30	NBR	DUP-414
P200160804	16.00	80.00	25	NBR	DUP-139
P200160902	16.00	80.00	30	NBR	DUP-294
P200164303	16.00	80.00	5/20	SILICON	DUP-331
P200160807	16.00	80.00	5/22.50	NBR	DUP-312
P200161002	16.00	80.00	5/22.50	NBR	DUP-342
P200164304	16.00	80.00	6/20	SILICON	DUP-367
P200164306	16.00	80.00	6/25	SILICON	DUP-421
P200160812	16.00	80.00	7/25	NBR	DUP-410
P200160810	16.00	90.00	8/25	NBR	DUP-384
P20016T202	16.00	93.00	6/25	SILICON	DUP-462
P200160901	16.00	100.00	6/25	NBR	DUP-234
P200160816	16.50	155.00	10.00/22.00	NBR	DUP-142
P200176401	17.00	40.00	3/26	FKM	DUP-460
P200170801	17.00	75.00	9.50/32.00	NBR	DUP-151
P200180804	18.00	60.00	4.60/21	NBR	DUP-467
P200180901	18.00	100.00	30.50	NBR	DUP-399
P200180803	18.00	125.00	8/30	NBR	DUP-287
P200190901	19.00	100.70	26	NBR	DUP-423
P200190801	19.00	114.30	5.5/19.5	NBR	DUP-243
P200190806	19.00	150.00	9/25	NBR	DUP-391
P200190807	19.00	150.00	9/25	NBR	DUP-401
P200190808	19.05	127.00	7/16	NBR	DUP-402
P200190802	19.05	139.70	6.85/23.81	NBR	DUP-262
P200190401	19.05	152.40	6.35/23.81	NBR	DUP-248
P20019C301	19.08	114.30	38.1	XNBR	DUP-254
P200200817	20.00	76.00	5/25	NBR	DUP-473
P200200901	20.00	80.00	5.60/22.50	NBR	DUP-336
P200200814	20.00	95.00	7/25	NBR	DUP-404
P200200807	20.00	100.00	25	NBR	DUP-204
P200200815	20.00	100.00	48	NBR	DUP-408
P20020L501	20.00	100.00	6.60/26	PU	PPA-2323
P200200908	20.00	100.00	7.00/26.00	NBR	DUP-152
P200200909	20.00	100.00	7.00/33.50	NBR	DUP-173
P200206602	20.00	125.00	26	FKM	DUP-266
P200200810	20.00	125.00	26.00	NBR	DUP-275
P200200804	20.00	125.00	30	NBR	DUP-149
P200200813	20.00	125.00	8.2/28	NBR	DUP-278
P200206403	20.00	125.00	8.2/28	FKM	DUP-464
P200200818	20.00	140.50	31.50	NBR	DUP-105
P200200819	20.00	150.00	10.60/29.00	NBR	DUP-493
P200201003	20.00	150.00	11.20/28.60	NBR	DUP-220
P200200907	20.00	150.00	12/30	NBR	DUP-395
P200200802	20.00	160.00	30	NBR	DUP-193
P200201006	20.00	200.00	10.60/40	NBR	DUP-340
P200200816	20.00	200.00	12/40	NBR	DUP-416
P200210801	21.00	60.00	26	NBR	DUP-150
P200210803	21.70	101.60	10.35	NBR	DUP-405
P200220801	22.00	59.00	23	NBR	DUP-343
P200220901	22.00	140.00	6/29	NBR	DUP-413
P200240801	24.00	130.00	15/40.00	NBR	DUP-117
P200240802	24.00	160.00	11/30.00	NBR	DUP-476
P200246401	24.00	160.00	30.00	FKM	DUP-167
P200250803	25.00	125.00	10/30	NBR	DUP-458
P200250805	25.00	125.00	8.00/26.00	NBR	DUP-109
P200250804	25.00	205.00	22.00/45.00	NBR	DUP-477
P200250806	25.40	82.55	4.50/14.00	NBR	DUP-156
P200250802	25.40	127.00	12/40	NBR	DUP-359
P200276502	27.00	160.00	11/30	FKM	DUP-371
P200276402	27.00	160.00	12/31	FKM	DUP-455
P200276602	27.00	160.00	30	FKM	DUP-256
P200271002	27.00	160.00	30	NBR	DUP-453
P200270802	27.00	160.00	31	NBR	DUP-138
P200276503	27.00	160.00	9/30	FKM	DUP-374
P200270806	27.00	200.00	11/30.00	NBR	DUP-289
P200273201	27.00	200.00	12/35	EPDM	DUP-236
P200271001	27.00	200.00	12/35	NBR	DUP-363
P200276403	27.00	200.00	15.00/35.00	FKM	DUP-489
P200270808	27.00	240.00	11.50/35.00	NBR	DUP-102
P200301004	30.00	200.00	10.60/35	NBR	DUP-377
P200301001	30.00	250.00	15/40	NBR	DUP-198
P200310901	31.50	200.00	21.30/43.50	NBR	DUP-115
P200310802	31.75	304.80	8/26.5	NBR	DUP-319
P200320902	32.00	100.00	3.20/24.00	NBR	DUP-469
P200320901	32.00	160.00	22/45	NBR	DUP-425
P200320801	32.00	200.00	10/36	NBR	DUP-274
P200350801	35.00	150.00	10.00/40.00	NBR	DUP-171
P200361001	36.00	250.00	15/40	NBR	DUP-334
P200380801	38.00	90.00	24.30	NBR	DUP-488
P200386401	38.00	177.80	28	FKM	DUP-406
P200386501	38.10	92.07	6/22.22	FKM	DUP-394
P200400801	40.00	125.00	30.00	NBR	DUP-107
P200406501	40.50	114.00	25.00	FKM	DUP-487
P200666401	66.68	101.60	6/21	FKM	DUP-420
