Profile : Piston Seals

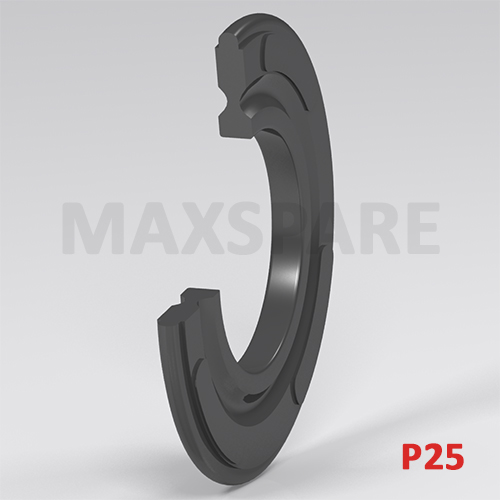

Spareage : P25
P25 Assembly

Details :
P25 is a pneumatic piston seal used for compact pistons that can be pressurized on both sides with grooves on the front face for pressure activation. This seal design is suitable for short stroke cylinders and the rounded sealing lip and flexible body provides good tightness with low friction and maintain effective lubrication.
MATERIAL
  • Pneumatic Cylinders.
  • Pneumatic Valves.
  • Short-stroke cylinders.
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C (NBR)
: -40° C to + 220° C (FKM)
Pressure : 12 Bar
Speed : 1.0 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Dry and oil-free air.
APPLICATION
Nitrile Rubber 80/85 Shore A.FKM Rubber 80/85 Shore A.
FEATURES
  • Compact design.
  • Suitable for short stroke cylinders.
  • Long service life.
  • For use in dry and oil-free air.
  • Easy installation.
  • Low friction.
  • Maintain lubrication.

Manufactured by: Max Spare Limited
Product ID: 437i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
P2500508025.4010.001.50NBR     SUA-2628
P2500508015.5010.001.60NBR     SUA-2022
P2500608026.0010.001.20NBR     SUA-2274
P2500609016.0010.001.60NBR     SUA-104
P2500609026.0010.001.60NBR     SUA-2486
P2500608016.5012.001.60NBR     SUA-1607
P2500664016.5012.001.60FKM     SUA-2375
P2500709017.0013.001.50NBR     SUA-1752
P2500740017.0016.002SILICON     SUA-1676
P2500744017.0016.002SILICON     SUA-2006
P2500810038.0012.001.60NBR     SUA-2036
P2500908019.0014.002.3NBR     SUA-866
P2500966019.3016.001.50FKM     SUA-2107
P2500964019.3016.101.60FKM     SUA-2166
P2500908059.3016.101.60NBR     SUA-2639
P25009AG019.5018.002.62FKM     SUA-1749
P2500908049.8015.502.20NBR     SUA-1997
P25010890110.0016.001.50PU     PUA-579
P25010100110.0016.002NBR     SUA-1693
P25010090110.4015.301.60NBR     SUA-1706
P25011080211.0015.001.6NBR     SUA-936
P25011090311.0015.001.60NBR     SUA-2487
P25011090111.0015.001.65NBR     SUA-1471
P25011080311.4016.001.50NBR     SUA-1844
P25011080511.4016.001.50NBR     SUA-2372
P25011100111.4522.152NBR     SUA-689
P25011090211.5016.001.65NBR     SUA-1757
P25012080112.0016.001.60NBR     SUA-1927
P25012430112.0016.001.60SILICON     SUA-2672
P25012100212.0018.002NBR     SUA-1662
P25012100112.7015.872.2NBR     SUA-1437
P25014080414.0019.002.30NBR     SUA-2419
P25014080114.0020.002.10NBR     SUA-1843
P25014100314.0020.002.20NBR     SUA-1490
P25014100214.0022.003NBR     SUA-1368
P25014100614.0022.003NBR     SUA-1754
P25014100414.5020.002.30NBR     SUA-1652
P25014080214.5020.502.20NBR     SUA-2004
P25014100514.5021.502.80NBR     SUA-1651
P25015100115.3021.902.30NBR     SUA-1755
P25016100116.0022.003NBR     SUA-1704
P25016100216.0024.003NBR     SUA-1937
P25017090117.0024.003NBR     SUA-2143
P25017080317.0025.002.10NBR     SUA-1768
P25017090417.0025.002.70NBR     SUA-149
P25017080417.0025.002.90NBR     SUA-1842
P25017090317.0025.004.50NBR     SUA-2677
P25017100317.5025.002.10NBR     SUA-573
P25017100117.5025.003NBR     SUA-1532
P25017080617.5025.003NBR     SUA-2000
P25017640117.5025.003FKM     SUA-2132
P25017080217.9025.002.1NBR     SUA-1234
P25017080517.9030.002.10NBR     SUB-3307
P25018080118.0025.002NBR     SUA-2360
P25019080119.0025.002.2NBR     SUA-957
P25019080219.9032.002.10NBR     SUB-3352
P25020080120.0025.002.20NBR     SUA-739
P25020640320.0032.002.20FKM     SUB-2227
P25021080121.0025.002.6NBR     SUA-1481
P25022110122.0030.002.60NBR     SUB-4762
P25022100322.0032.002.50NBR     SUB-2912
P25022100222.5030.003NBR     SUB-2344
P25022080122.6032.002.60NBR     SUB-2829
P25023110123.0030.502.60NBR     SUB-4588
P25023090123.4131.352.90NBR     SUB-2762
P25024090224.0032.002NBR     SUB-3291
P25024870124.0032.002.60PU     PUB-1506
P25024080124.0032.002.90NBR     SUB-3875
P25024100124.0032.003NBR     SUB-1776
P25024660124.0032.003FKM     SUB-3019
P25024100224.0032.003NBR     SUB-3054
P25024L30124.0032.003AFLAS     SUB-3140
P25024080224.0032.003NBR     SUB-3985
P25024090524.0032.003NBR     SUB-4021
P25024090324.0032.003.00NBR     SUB-498
P25024090424.0032.003.20NBR     SUB-3929
P25024090124.0032.003.40NBR     SUB-3189
P25025100125.0032.003NBR     SUB-2736
P25025080125.0032.003NBR     SUB-2837
P250250902125.0032.003.00NBR     SUB-4625
P25025090125.4031.753NBR     SUB-3717
P25026100126.5040.002.50NBR     SUB-2790
P25026080126.5040.002.50NBR     SUB-4771
P25027100227.0040.002NBR     SUB-3425
P25027090127.5040.002.90NBR     SUB-4796
P25027080127.9040.002.10NBR     SUB-3742
P25029U20129.0040.003.00FKM     SUB-4859
P25030100130.0040.002.70NBR     SUB-3052
P25031100131.0040.003.00NBR     SUB-4247
P25031100231.4040.003.40NBR     SUB-4321
P25032090232.0039.002.70NBR     SUB-3124
P25032090132.0039.003NBR     SUB-2749
P25032080332.0040.002.50NBR     SUB-3926
P25032100432.0040.002.80NBR     SUB-3119
P25032100532.0040.002.80NBR     SUB-3344
P25032080232.0040.002.90NBR     SUB-3873
P25032320132.0040.002.90EPDM     SUB-4308
P25032100132.0040.003NBR     SUB-1441
P25032660132.0040.003FKM     SUB-2036
P25032100332.0040.003NBR     SUB-2840
P25032090432.0040.003NBR     SUB-3492
P25032090532.0040.003NBR     SUB-3493
P25032100232.0040.003.10NBR     SUB-2786
P25032090332.0040.003.10NBR     SUB-3290
P25032090732.0040.003.20NBR     SUB-3809
P25032100632.0040.003.50NBR     SUB-3459
P25033080533.0040.003NBR     SUB-2183
P25033100133.0040.003NBR     SUB-2738
P25033100233.0040.003NBR     SUB-2752
P25033640233.0040.003.05FKM     SUB-4877
P25033090133.0040.003.10NBR     SUB-2778
P25033100333.4040.002.70NBR     SUB-4323
P25034100134.0042.003NBR     SUB-3077
P25038640138.1047.624.00FKM     SUB-1496
P25038080138.5050.002.10NBR     SUB-4862
P25039090139.0050.004NBR     SUB-3980
P25040100540.0050.002NBR     SUB-3202
P25040100340.0050.003.40NBR     SUB-2651
P25040100640.0050.003.40NBR     SUB-3439
P25040080140.0050.003.50NBR     SUB-2974
P25040090240.0050.003.50NBR     SUB-3289
P25040320140.0050.003.60EPDM     SUB-4309
P25040110140.0050.003.70NBR     SUB-2809
P25040640140.0050.003.70FKM     SUB-3102
P25040080240.0050.003.70NBR     SUB-3874
P25040100140.0050.003.8NBR     SUB-1577
P25040100240.0050.003.8NBR     SUB-2381
P25040090340.0050.003.80NBR     SUB-3491
P25040100440.0050.004NBR     SUB-3053
P25041100141.0050.003.20NBR     SUB-4875
P25041080141.0051.002.90NBR     SUC-3164
P25041L301.41.0051.803.80AFLAS     SUC-3268
P25042100142.0058.003NBR     SUC-2533
P25043100143.6060.003.50NBR     SUC-2129
P25047100147.0059.002NBR     SUC-2074
P25047100247.0060.002NBR     SUC-2091
P25047320147.1065.504.30EPDM     SUC-2955
P25048080148.0060.003.70NBR     SUC-2107
P25050100150.0062.003.20NBR     SUC-1909
P25050640150.8063.003.45FKM     SUC-1872
P25051080151.0063.002.10NBR     SUC-2083
P25051090151.0063.003.50NBR     SUC-2950
P25052080152.0062.003.50NBR     SUC-1992
P25053090153.0062.004NBR     SUC-1922
P25053L30153.0062.503.80AFLAS     SUC-2451
P25041L30153.0062.503.80AFLAS     SUC-2452
P25053080153.0063.003.70NBR     SUC-1970
P25053080253.0063.003.70NBR     SUC-2108
P25053090253.0063.003.70NBR     SUC-2215
P25053100753.0063.003.70NBR     SUC-2237
P25053090353.0063.003.80NBR     SUC-2327
P25053090553.0063.003.80NBR     SUC-2460
P25053100853.0063.004NBR     SUC-2309
P25053090453.0063.004NBR     SUC-2328
P25053660353.0063.004.00FKM     SUC-1564
P25053090653.0063.004.00NBR     SUC-2545
P25053100353.0063.005NBR     SUC-1804
P25053100453.2663.003.70NBR     SUC-2059
P25054660153.2663.003.70FKM     SUC-2464
P25053100253.2663.004NBR     SUC-1381
P25053080353.5063.003.70NBR     SUC-295
P25053640453.5063.005.50FKM     SUC-2201
P25053100653.6063.003.70NBR     SUC-2897
P25054090154.0063.003.70NBR     SUC-1853
P25054080454.0063.003.70NBR     SUC-1921
P25054100254.0063.003.80NBR     SUC-2014
P25057100157.9070.905.20NBR     SUC-2971
P25060100160.0075.005.50NBR     SUC-2359
P25063090163.0078.006NBR     SUD-1694
P25064090164.0080.005.90NBR     SUD-1577
P25065090165.0080.005.20NBR     SUD-1454
P25065660165.0080.005.40FKM     SUD-1605
P250651001265.0080.005.40NBR     SUD-1769
P25065080265.0080.005.50NBR     SUD-1984
P25065650165.0080.005.70FKM     SUD-1408
P25065090265.0080.005.70NBR     SUD-1473
P25065L30165.0080.005.90AFLAS     SUD-2285
P25065100365.0080.006NBR     SUD-1150
P25066090166.0080.005.6NBR     SUD-1294
P25066100266.0080.005.60NBR     SUD-1749
P25066S80166.0080.005.70NBR     SUD-1194
P28066080166.6879.389.52NBR     SUD-2117
P25067090167.0080.003.50NBR     SUD-2254
P25068100168.0080.002NBR     SUD-678
P25068080368.0080.002.00NBR     SUD-2507
P25068080268.0080.003.70NBR     SUD-1719
P25068660168.0080.005FKM     SUD-1617
P25068100568.0080.005.40NBR     SUD-2440
P25068100268.0081.003.50NBR     SUD-1517
P25068660268.0081.003.70FKM     SUD-1853
P25068100468.5080.504NBR     SUD-1932
P25070100170.0080.003.70NBR     SUD-1596
P25071100371.0090.004.00NBR     SUD-2493
P25075100375.0085.003.70NBR     SUD-2390
P25075100275.0090.005.50NBR     SUD-1500
P25078650178.00100.005.00FKM     SUD-2462
P25084090284.00100.005.60NBR     SUD-2165
P25084090484.00100.005.60NBR     SUD-2274
P25084090184.00100.006NBR     SUD-1578
P25084090384.00100.006.00NBR     SUD-2218
P25085090485.00100.005.00NBR     SUD-2311
P25085090185.00100.005.3NBR     SUD-1307
P2508580185.00100.005.50NBR     SUD-1612
P25085660185.00100.005.50FKM     SUD-1784
P25085090385.00100.005.50NBR     SUD-2000
P25085650185.00100.005.50FKM     SUD-2194
P25085100185.00100.005.60NBR     SUD-1450
P25085090585.00100.005.60NBR     SUD-2477
P25085100785.00100.005.70NBR     SUD-2321
P25085100285.00100.006NBR     SUD-1731
P25085100385.00100.006NBR     SUD-1736
P25085100585.00100.006.00NBR     SUD-2494
P25088100188.00100.002NBR     SUD-1570
P25088100288.00100.002NBR     SUD-1796
P25088080288.00103.005.90NBR     SUE-990
P25095100195.00110.005.50NBR     SUE-1042
P251001001100.00125.004.50NBR     SUE-1347
P251101004110.00125.005.20NBR     SUE-1273
P251104501110.00125.005.20SILICON     SUE-386
P251100802110.00125.005.50NBR     SUE-1334
P251100801110.00125.005.50NBR     SUE-953
P251100901110.00125.005.60NBR     SUE-1280
P251101001110.00125.005.8NBR     SUE-735
P251101003110.00125.006NBR     SUE-959
P251121002112.00125.006NBR     SUE-1293
P251130901113.00125.002.20NBR     SUE-1621
P251250801125.00140.005.60NBR     SUF-1073
P251256601125.00140.005.60FKM     SUF-967
P251261001126.00140.005.80NBR     SUF-879
P251300901130.00150.007.80NBR     SUF-1181
P251306601130.00150.008.00FKM     SUF-1136
P251341001134.00150.005NBR     SUF-861
P251351001135.00150.005.80NBR     SUF-854
P251401001140.00160.007.5NBR     SUG-470
P251406601140.00160.007.50FKM     SUG-723
P251406401140.00160.007.50FKM     SUG-879
P25140CF01140.00160.007.60PU     PUG-127
P251401002140.00160.007.60NBR     SUG-795
P251456601145.00160.105.30FKM     SUG-636
P251600801160.00180.006.70NBR     SUH-510
P251606401160.00180.006.70FKM     SUH-589
P251796601179.40200.007.60FKM     SUH-411
P251801001180.00199.508NBR     SUH-410
P251801002180.00200.007.50NBR     SUH-439
P251800902180.00200.007.80NBR     SUH-635
P251816501181.00200.007.60FKM     SUH-565
P251861001186.20200.006.50NBR     SUH-586
P252306701230.00250.007.50FKM     SUK-113
P252306601230.00250.008FKM     SUK-287
P252301001230.00250.008.00NBR     SUK-338




For customised items please Click here
Login
