P26: Pneumatic Piston Seals Manufacturers, Suppliers, Exporters

Max Spare : P26

Profile : Piston Seals

Details :

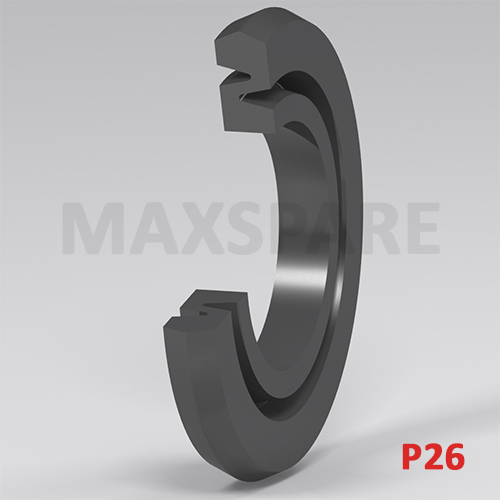

P26 is a double acting pneumatic seal for piston required only small housing diamensions. It is mainly mounted on pneumatic cylinders but can also be used on pneumatic valves. The seal profile is rounded in the center on the dynamic lip and has two projections on the static lip. It is very easy to install due to its symmetrical profile. Particularly sliding even at low pressure.

MATERIAL

Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C (NBR)
	:	-40° C to + 220° C (FKM)
Pressure	:	12 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Dry and oil-free air.

APPLICATION

Nitrile Rubber 80/85 Shore A.FKM Rubber 80/85 Shore A.

FEATURES

The compact design.
Suitable for short piston designs.
The rounded sealing profile and the flexible centre part give good tightness with low friction and maintain an effective lubricating film.
Widely proven design.
Large supply range available.
Very good tribological properties (wear, friction).
Long service life.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P26005D501	5.93	12.51	2.06	HNBR	SUA-2402
P260066402	6.00	13.00	2.30	FKM	SUA-2675
P260061001	6.50	10.00	1.40	NBR	SUA-1669
P260060801	6.50	12.00	1.70	NBR	SUA-1579
P260066501	6.50	12.00	1.70	FKM	SUA-2055
P260070901	7.00	12.00	2	NBR	SUA-2088
P260070801	7.00	12.00	2.10	NBR	SUA-2331
P260071001	7.00	12.00	2.20	NBR	SUA-1569
P260076402	7.00	12.00	2.30	FKM	SUA-2676
P26007S801	7.50	14.25	2.70	NBR	SUA-729
P260076501	7.50	16.50	2.30	FKM	SUA-112
P26007D501	7.72	16.57	2.25	HNBR	SUA-2403
P260090804	9.00	16.00	2.10	NBR	SUA-2333
P260090805	9.00	16.00	2.10	NBR	SUA-2345
P260090806	9.00	16.00	2.10	NBR	SUA-2706
P260101002	10.00	15.00	2	NBR	SUA-2328
P260100801	10.00	18.00	2	NBR	SUA-1145
P260121001	12.00	19.00	2.30	NBR	SUA-1954
P260120901	12.00	20.00	2	NBR	SUA-1594
P260126601	12.00	20.00	2.30	FKM	SUA-1965
P260131002	13.00	18.00	2.3	NBR	SUA-1167
P260136602	13.00	18.00	2.50	FKM	SUA-762
P260130802	13.00	20.00	2.10	NBR	SUA-1846
P260130903	13.00	20.00	2.10	NBR	SUA-2203
P260130601	13.00	20.00	2.10	NBR	SUA-2237
P26013O301	13.00	20.00	2.10	NBR	SUA-2479
P260130803	13.00	20.00	2.40	NBR	SUA-2175
P26013-SUA-539	13.00	20.00	2.5	NBR	SUA-539
P260140801	14.00	21.00	2.20	NBR	SUA-1675
P260141001	14.50	22.00	2.5	NBR	SUA-1557
P260156401	15.00	22.00	2.10	FKM	SUA-2279
P26015L501	15.00	22.00	2.30	PU	PUA-233
P260156402	15.50	22.50	2.10	FKM	SUA-646
P260160801	16.00	22.00	2.30	NBR	SUA-2423
P260161002	16.00	25.00	2.80	NBR	SUA-2078
P260166501	16.00	26.00	2.80	FKM	SUB-2633
P260170803	17.00	22.00	3.50	NBR	SUA-2174
P260170804	17.00	25.00	2	NBR	SUA-2272
P260170802	17.00	25.00	2.85	NBR	SUA-1925
P260170901	17.50	25.00	2.20	NBR	SUA-2005
P260176602	17.50	25.00	2.20	FKM	SUA-2238
P260176501	17.50	25.00	2.20	FKM	SUA-2244
P260180804	18.00	25.00	2.10	NBR	SUA-2332
P260180808	18.00	25.00	2.10	NBR	SUA-2842
P260180806	18.00	25.00	2.10	NBR	SUA-628
P260180805	18.00	25.00	2.30	NBR	SUA-420
P260180803	18.00	25.00	2.30	NBR	SUA-490
P260181002	18.00	25.00	3.30	NBR	SUA-698
P260191001	19.00	28.00	2.50	NBR	SUB-2789
P260190802	19.00	28.00	2.50	NBR	SUB-3891
P260196601	19.00	28.00	2.50	FKM	SUB-5039
P260190801	19.85	29.50	2.80	NBR	SUB-3401
P260200801	20.00	30.00	3	NBR	SUB-2798
P260201004	20.00	30.00	3	NBR	SUB-3309
P260201003	20.00	37.20	2.70	NBR	SUB-2628
P26021L502	21.00	30.00	2.50	PU	PUB-541
P260210803	21.00	30.00	2.50	NBR	SUB-3890
P260210804	21.00	30.00	2.50	NBR	SUB-4366
P260210902	21.00	30.00	2.8	NBR	SUB-2426
P26021L501	21.00	30.00	2.80	PU	PUB-1436
P260211001	21.00	30.00	3	NBR	SUB-127
P260220901	22.00	30.00	2.80	NBR	SUB-4087
P260226501	22.00	32.00	2.80	FKM	SUB-2706
P260226401	22.22	31.75	2.70	FKM	SUB-4560
P260236501	23.00	32.00	2.5	FKM	SUB-2356
P260230901	23.00	32.00	2.50	NBR	SUB-3410
P260230805	23.00	32.00	2.50	NBR	SUB-3889
P260230807	23.00	32.00	2.50	NBR	SUB-4972
P260230803	23.00	32.00	2.80	NBR	SUB-3627
P260236503	23.00	32.00	2.90	FKM	SUB-3836
P260231002	23.00	32.00	3	NBR	SUB-1142
P260230806	23.00	32.00	3.00	NBR	SUB-4896
P260231003	23.00	32.00	3.00	NBR	SUB-4998
P260241001	24.00	32.00	3.00	NBR	SUB-4423
P260250901	25.00	35.00	2.80	NBR	SUB-2890
P260261004	26.00	34.00	2.90	NBR	SUB-4909
P260266601	26.00	34.00	2.90	FKM	SUB-5040
P260260801	26.00	35.00	2.50	NBR	SUB-3886
P260260802	26.00	35.00	2.50	NBR	SUB-4895
P26026L401	26.00	35.00	2.80	PU	PUB-1158
P260261003	26.00	35.00	2.80	NBR	SUB-3084
P260266501	26.00	35.00	2.90	FKM	SUB-4621
P260261001	26.00	35.00	3	NBR	SUB-126
P260270801	27.50	40.00	3.50	NBR	SUB-3893
P260301001	30.00	40.00	3	NBR	SUB-1365
P260306601	30.00	40.00	3	FKM	SUB-3629
P260310801	31.00	40.00	2.50	NBR	SUB-3065
P260310901	31.00	40.00	2.50	NBR	SUB-3411
P260316401	31.00	40.00	2.50	FKM	SUB-3775
P260309001	31.00	40.00	2.70	NBR	SUB-2835
P260316501	31.00	40.00	2.70	FKM	SUB-2869
P260311002	31.00	40.00	2.9	NBR	SUB-2560
P260316502	31.00	40.00	2.90	FKM	SUB-3854
P260316503	31.00	40.00	3	FKM	SUB-1713
P260311001	31.00	40.00	3	NBR	SUB-635
P260320901	32.00	40.00	2.70	NBR	SUB-2634
P260323401	32.00	40.00	3.00	EPDM	SUB-4773
P260320902	32.00	40.00	3.20	NBR	SUB-3752
P260334101	33.00	42.00	2.70	SILICON	SUB-4574
P260330801	33.00	42.00	2.70	NBR	SUB-4825
P260130804	34.00	40.00	3	NBR	SUB-3608
P260350901	35.00	45.00	2.60	NBR	SUB-2891
P260356501	35.00	45.00	2.60	FKM	SUB-4559
P260350801	35.00	46.00	3	NBR	SUB-2013
P260350802	35.00	46.00	3.30	NBR	SUB-3894
P260360801	36.00	45.00	2.50	NBR	SUB-3827
P260360802	36.00	45.00	2.50	NBR	SUB-3887
P260360901	36.00	45.00	2.80	NBR	SUB-4289
P260366501	36.00	45.00	2.80	FKM	SUB-4556
P260361001	36.00	45.00	3	NBR	SUB-2817
P26037U201	37.00	46.00	2.50	FKM	SUB-4011
P260390601	39.00	48.00	2.30	NBR	SUB-4367
P260406401	40.00	50.00	2.70	FKM	SUB-3781
P260406501	40.00	50.00	2.80	FKM	SUB-2366
P260400902	40.00	50.00	2.80	NBR	SUB-2889
P260400803	40.00	50.00	3.50	NBR	SUB-3395
P260400801	40.00	50.00	3.7	NBR	SUB-1604
P260401002	40.00	50.00	5.80	NBR	SUB-3137
P260401001	40.00	51.00	2.70	NBR	SUC-1809
P260400901	40.00	51.00	4	NBR	SUC-1462
P260410901	41.00	50.00	2.50	NBR	SUB-2710
P260410802	41.00	50.00	2.50	NBR	SUB-3888
P260410804	41.00	50.00	2.80	NBR	SUB-4824
P260416501	41.00	50.00	2.90	FKM	SUB-3835
P260410801	41.00	50.00	3	NBR	SUB-1143
P260416502	41.00	50.00	3.00	FKM	SUB-1492
P260410902	41.00	50.00	3.50	NBR	SUB-3029
P260410805	41.00	51.00	2.50	NBR	SUC-3352
P260424101	42.00	51.00	5.60	SILICON	SUC-3070
P260440801	44.00	60.00	3.40	NBR	SUC-2604
P260451001	45.00	60.20	3.70	NBR	SUC-1410
P26046D501	46.30	51.00	2.50	HNBR	SUC-1074
P260466501	46.30	61.30	3.80	FKM	SUC-1819
P260481101	48.00	60.00	2.00	NBR	SUC-2639
P260480801	48.00	60.00	3.40	NBR	SUC-2603
P260481001	48.00	60.00	3.7	NBR	SUC-976
P260486601	48.00	60.00	3.70	FKM	SUC-2849
P260501001	50.00	67.40	2.70	NBR	SUC-1810
P260510902	51.00	63.00	3.40	NBR	SUC-1867
P260510901	51.00	63.00	3.40	NBR	SUC-2040
P260510801	51.00	63.00	3.40	NBR	SUC-2601
P260511002	51.00	63.00	3.7	NBR	SUC-931
P260511006	51.00	63.00	3.70	NBR	SUC-2439
P260520802	52.00	64.00	3.80	NBR	SUC-3071
P260530903	53.00	60.00	4	NBR	SUC-2456
P260530901	53.00	63.00	2.50	NBR	SUC-2012
P260536601	53.00	63.00	2.70	FKM	SUC-2180
P260530902	53.00	63.00	3.70	NBR	SUC-2398
P260531001	53.00	63.00	4	NBR	SUC-1816
P260530904	53.00	63.00	4	NBR	SUC-2497
P260550901	55.00	65.00	4.00	NBR	SUC-2816
P260550902	55.00	65.00	4.50	NBR	SUC-3052
P260559901	55.00	65.00	6.10	SBR	SUC-2199
P260580901	58.00	70.00	3.4	NBR	SUC-1707
P260586501	58.00	70.00	3.40	FKM	SUC-2285
P260586502	58.00	70.00	3.90	FKM	SUC-2945
P260651001	65.00	79.00	5.30	NBR	SUD-1441
P260651003	65.00	80.00	5.5	NBR	SUD-872
P260650901	65.00	80.00	6	NBR	SUD-1923
P26066T901	66.00	80.00	3.70	FKM	SUD-2355
P260680901	68.00	80.00	3.40	NBR	SUD-1561
P260680801	68.00	80.00	3.40	NBR	SUD-1980
P260681004	68.00	80.00	3.90	NBR	SUD-2384
P260681001	68.00	80.00	4	NBR	SUD-630
P260686602	68.00	80.00	5.10	FKM	SUD-1975
P260726601	72.00	80.00	5.50	FKM	SUD-1886
P260780801	78.00	90.00	4.20	NBR	SUD-1168
P260804401	80.00	95.00	5.60	SILICON	SUD-1378
P260856401	85.00	100.00	5	FKM	SUD-1879
P260850801	85.00	100.00	5.4	NBR	SUD-1107
P260856501	85.00	100.00	5.40	FKM	SUD-1425
P260854401	85.00	100.00	5.60	SILICON	SUD-1379
P260850902	85.00	100.00	6	NBR	SUD-1922
P260850802	85.00	110.00	5	NBR	SUE-1100
P260881001	88.00	100.00	3.40	NBR	SUD-1423
P260880801	88.00	100.00	3.40	NBR	SUD-1613
P260886501	88.00	100.00	4.00	FKM	SUD-2370
P260910901	91.00	110.00	4	NBR	SUE-1461
P261001001	100.00	125.00	4.9	NBR	SUE-674
P261071001	107.00	128.00	7.00	NBR	SUF-1190
P261080901	108.50	124.50	4.50	NBR	SUE-1566
P261100901	110.00	125.00	4.4	NBR	SUE-817
P261100801	110.00	125.00	4.40	NBR	SUE-1112
P261100902	110.00	125.00	4.40	NBR	SUE-1570
P261101001	110.00	125.00	4.90	NBR	SUE-1541
P261106501	110.00	125.00	4.90	FKM	SUE-587
P261106603	110.00	125.00	5.30	FKM	SUE-1462
P261150801	115.00	130.00	4.40	NBR	SUF-941
P261656401	165.00	180.00	4.80	FKM	SUH-637
P262366601	236.00	250.00	5.50	FKM	SUK-265
P262401001	240.00	260.00	7.50	NBR	SUM-146
P262428903	242.00	280.50	9.50	PU	PUM-165
P262428902	242.00	283.80	9.50	PU	PUM-163
P262428901	242.00	287.00	9.50	PU	PUM-160
P263180901	318.00	330.50	4.90	NBR	SUM-789
P265016601	501.00	525.00	7.60	FKM	SUVG-779
