Max Spare : S01
Profile : Rod Seals
Details :

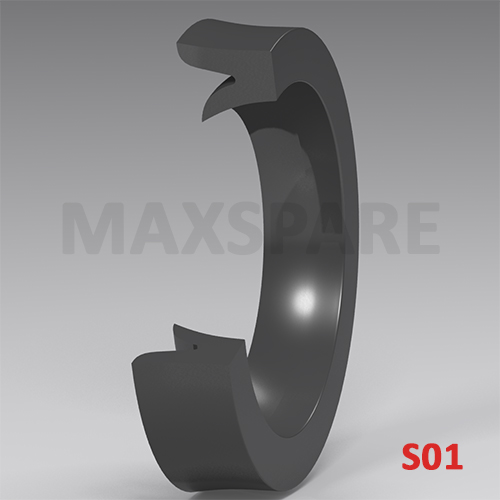

S01 is a single acting pneumatic rod seal with u-shaped cross section. Its asymmetric profile with longer and thicker static sealing lip guarantees a secure seat in the grooves. The special lip design for pneumatic application to maintain lubricating film and minimize friction.
MATERIAL
Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C (NBR)
:
-40° C to + 220° C (FKM)
Pressure
:
12 Bar
Speed
:
1.0 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Dry and oil-free air.
APPLICATION
Nitrile Rubber 80/85 Shore A.
FKM Rubber 80/85 Shore A.
FEATURES
Compact design.
Long service life.
Easy Installation.
Low friction.
Manufactured by:
Max Spare Limited
Product ID:
419i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
S010046601
4.00
10.00
4.00
FKM
SUA-2796
S010071001
7.93
14.28
3.96
NBR
SUA-1333
S01010L401
10.00
20.00
8
PU
PUA-467
S010100601
10.00
21.00
6.40
NBR
SUA-2568
S010113201
11.11
19.05
3.96
EPDM
SUA-2454
S010124601
12.70
21.00
5.10
SILICON
SUA-2259
S010141102
14.00
20.00
3.50
NBR
SUA-485
S010141101
14.28
20.63
4.76
NBR
SUA-2513
S010156601
15.87
22.22
4.76
FKM
SUA-2725
S010176401
17.46
23.81
4.60
FKM
SUA-2359
S010190903
19.05
25.40
5.4
NBR
SUB-2117
S010196101
19.05
26.50
7.50
FKM
SUB-1450
S010191001
19.08
25.40
4.76
NBR
SUB-2796
S010206701
20.00
26.00
5.00
FKM
SUB-4372
S01020L501
20.00
26.00
5.50
PU
PUB-1140
S010206601
20.00
28.00
5
FKM
SUB-3675
S010201003
20.00
28.00
6.00
NBR
SUB-4552
S010226601
22.00
30.00
4.25
FKM
SUB-4673
S010224301
22.00
30.00
5.00
SILICON/FABRIC
SUB-4171
S010250901
25.00
35.00
7.00
NBR
SUB-1399
S010256601
25.40
38.10
8.00
FKM
SUB-4072
S010260801
26.00
33.00
3.4
NBR
SUB-2277
S010264001
26.00
38.00
6.60
SILICON
SUB-4155
S010284301
28.00
40.00
6.60
SILICON
SUB-4156
S010286501
28.58
41.28
7.93
FKM
SUB-4056
S01030BF01
30.16
38.10
6.35
SILICON
SUB-4783
S010326601
32.00
45.00
7.00
FKM
SUB-1673
S010386602
38.00
50.00
9.30
FKM
SUB-1413
S010383301
38.10
50.80
11.00
EPDM
SUC-2737
S010380901
38.10
50.80
9.52
NBR
SUC-1099
S010406601
40.00
54.00
8
FKM
SUC-2498
S010426401
42.00
51.00
15.00
FKM
SUC-3138
S010446601
44.45
60.20
7.80
FKM
SUC-171
S010456601
45.00
55.00
10
FKM
SUC-1973
S010456501
45.00
55.00
7.00
FKM
SUC-2794
S010473201
47.63
63.50
11.00
EPDM
SUC-2668
S010470801
47.63
63.50
11.00
NBR
SUC-2669
S010476501
47.63
63.50
11.00
FKM
SUC-2670
S010473302
47.63
63.50
9.52
EPDM
SUC-3092
S010506701
50.00
58.50
10.37
FKM
SUC-1883
S010501003
50.00
60.00
12.30
NBR
SUC-2539
S010501002
50.00
63.00
11.20
NBR
SUC-2540
S010521101
52.00
60.00
10.00
NBR
SUC-3269
S010566603
56.00
69.00
8.00
FKM
SUC-2979
S010600901
60.00
70.00
8.00
NBR
SUC-2830
S010671001
67.00
80.00
6
NBR
SUD-1264
S010701003
70.00
79.50
6.00
NBR
SUD-1950
S010706501
70.00
95.00
12.00
FKM
SUD-2177
S010886601
88.90
101.60
11.00
FKM
SUE-1404
S010921001
92.00
105.00
6
NBR
SUE-885
S010921002
92.08
106.40
7.93
NBR
SUE-1007
S010951001
95.00
104.00
6.00
NBR
SUE-1311
S011006601
100.00
110.00
6.00
FKM
SUE-546
E011001101
100.00
127.00
13.50
NBR
SUF-919
S011012301
101.60
111.12
9.52
NBR
SUE-409
S01113P401
113.74
129.48
6.35
NBR
SUF-171
S011221001
122.00
135.00
6
NBR
SUF-606
S011950801
195.26
203.20
12.70
NBR
SUJ-497
S011950401
195.26
203.20
12.70
NBR
SUJ-499
S012676501
267.00
283.00
6.30
FKM
SUM-943
S013008701
317.36
331.84
12.70
PU
PUM-172
S014828301
482.60
516.25
17.14
NBR/FABRIC
SUVG-260
