Max Spare : S02
Profile : Rod Seals
Details :

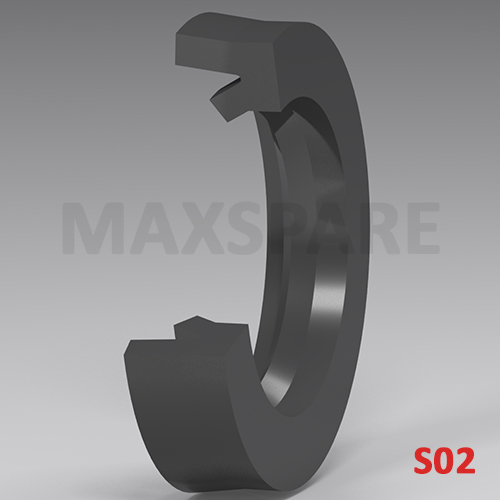

S02 is a single acting pneumatic rod seal with u-shaped cross section. Its asymmetric profile with longer and thicker static sealing lip guarantees a secure seat in the grooves. The special lip design for pneumatic application to maintain lubricating film and minimize friction.
MATERIAL
Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C (NBR)
:
-40° C to + 220° C (FKM)
Pressure
:
12 Bar
Speed
:
1.0 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Dry and oil-free air.
APPLICATION
Nitrile Rubber 80/85 Shore A.
FKM Rubber 80/85 Shore A.
FEATURES
Compact design.
Long service life.
Easy Installation.
Low friction.
Manufactured by:
Max Spare Limited
Product ID:
49i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
S020020801
2.50
5.00
2.10
NBR
SUA-615
S020030801
3.50
10.00
4.00
NBR
SUA-2521
S02004Q201
4.00
8.00
3
PU
PUA-525
S020041005
4.00
8.00
3
NBR
SUA-1156
S020040901
4.00
9.00
3.5
NBR
SUA-733
S020046603
4.00
10.00
4.00
FKM
SUA-2464
S020041003
4.00
10.00
4.2
NBR
SUA-734
S020046601
4.00
10.00
4.2
FKM
SUA-886
S02004CF01
4.00
12.00
4.50
PU
PUA-929
S020040802
4.00
12.00
4.50
NBR
SUA-2431
S020050704
5.00
17.00
6.00
NBR
SUA-709
S020051002
5.50
12.00
4
NBR
SUA-1329
S020051003
5.50
17.50
6.00
NBR
SUA-656
S020066602
6.00
10.00
3
FKM
SUA-1084
S020061003
6.00
10.00
3
NBR
SUA-926
S02006L501
6.00
10.00
3.00
PU
PUA-530
S020063301
6.00
10.00
3.00
EPDM
SUA-2378
S020061002
6.00
12.00
3
NBR
SUA-922
S02006-SUA-694
6.00
12.00
4.2
FKM
SUA-694
S020066401
6.00
13.00
5.00
FKM
SUA-2304
S020066702
6.35
12.70
3.96
FKM
SUA-2522
S020061006
6.50
20.50
12.00
NBR
SUA-2341
S020071102
7.50
14.00
4.1
NBR
SUA-940
S0200880804
8.00
12.00
2.5
NBR
SUA-1417
S020081102
8.00
12.00
3.00
NBR
SUA-2673
S020081006
8.00
13.00
3.20
NBR
SUA-2199
S020081008
8.00
13.00
3.80
NBR
SUA-2684
S020080901
8.00
13.50
3.20
NBR
SUA-2261
S020086501
8.00
14.00
3.90
FKM
SUA-1007
S020081001
8.00
14.00
4
NBR
SUA-735
S020086602
8.00
14.00
4.00
FKM
SUA-700
S020086601
8.00
14.00
4.03
FKM
SUA-2525
S020080805
8.00
14.00
4.30
NBR
SUA-2606
S02008V201
8.00
14.00
4.40
NBR
SUA-1771
S020081002
8.00
16.00
5.5
NBR
SUA-904
S020081007
8.00
16.00
5.50
NBR
SUA-2683
S020092001
9.50
15.70
4.00
NEOPRENE
SUA-2336
S020101009
10.00
13.00
2
NBR
SUA-2071
S020101001
10.00
13.60
2.30
NBR
SUA-1404
S020106503
10.00
13.60
2.30
FKM
SUA-2246
S020100807
10.00
13.60
2.30
NBR
SUA-2398
S020100905
10.00
14.00
2.20
NBR
SUA-2198
S020101007
10.00
14.00
2.30
NBR
SUA-1620
S020100901
10.00
14.00
2.30
NBR
SUA-1626
S020100806
10.00
14.00
2.30
NBR
SUA-2263
S020101104
10.00
14.00
2.30
NBR
SUA-2382
S020101011
10.00
14.00
2.70
NBR
SUA-2163
S020090801
10.00
14.00
3
NBR
SUA-1010
S020101008
10.00
14.00
3.50
NBR
SUA-1621
S02010L401
10.00
14.00
4
PU
PUA-598
S020100907
10.00
15.00
3.5
NBR
SUA-604
S020100805
10.00
16.00
4.5
NBR
SUA-1201
S020100908
10.00
16.00
4.5
NBR
SUA-737
S020106602
10.00
16.00
4.5
FKM
SUA-918
S02010L502
10.00
16.00
4.50
PU
PUA-752
S020100809
10.00
16.00
4.50
NBR
SUA-2477
S020106603
10.00
16.00
4.50
FKM
SUA-2480
S020106101
10.00
16.00
4.50
FKM
SUA-2787
S020100803
10.00
18.00
5.3
NBR
SUA-1005
S020106601
10.00
18.00
5.50
FKM
SUA-1252
S020100906
10.00
18.00
5.50
NBR
SUA-695
S020106502
10.00
18.00
6
FKM
SUA-2208
S020100902
10.31
14.27
2
NBR
SUA-1674
S02012-SUA-720
12.00
16.00
2.7
NBR
SUA-720
S020121005
12.00
17.00
4.50
NBR
SUA-1622
S020121009
12.00
18.00
2.55
NBR
SUA-2067
S020121007
12.00
18.00
2.70
NBR
SUA-1875
S020121102
12.00
18.00
4
NBR
SUA-1265
S020121004
12.00
18.50
4.5
NBR
SUA-738
S020121103
12.00
19.00
4.5
NBR
SUA-1442
S020120802
12.00
19.00
4.50
NBR
SUA-2265
S020121105
12.00
20.00
5
NBR
SUA-2105
S020126602
12.00
20.00
5.40
FKM
SUA-1673
S020121012
12.00
20.00
5.40
NBR
SUA-2394
S020121013
12.00
20.00
5.50
NBR
SUA-2682
S020126604
12.00
20.00
5.70
FKM
SUA-2306
S020126502
12.00
20.00
6
FKM
SUA-2119
S020125901
12.00
21.00
3.50
PU
PUA-188
S020301001
13.00
20.00
4.50
NBR
SUA-1945
S020141003
14.00
18.00
2.75
NBR
SUA-2069
S020141104
14.00
20.00
3.50
NBR
SUA-2264
S020146602
14.00
20.00
4.80
FKM
SUA-251
S020141004
14.00
21.00
4.40
NBR
SUA-2165
S020141002
14.00
21.00
4.70
NBR
SUA-1648
S020146501
14.00
22.00
5.70
FKM
SUA-1818
S02014T801
14.00
22.00
6
FKM
SUA-1958
S02014AP01
14.00
23.00
6
NBR
PUA-795
S020150902
15.00
21.00
5
NBR
SUA-1612
S020150901
15.00
22.00
4.9
NBR
SUA-945
S020151101
15.00
22.00
5.00
NBR
SUA-455
S020151003
15.00
23.00
4.80
NBR
SUA-1996
S020151002
15.00
24.00
4
NBR
SUA-1740
S020151004
15.87
22.15
5.56
NBR
SUA-2017
S020150904
15.87
22.22
5.10
NBR
SUA-2762
S020151005
15.87
22.25
4.74
NBR
SUA-2766
S020161006
16.00
20.00
2.75
NBR
SUA-2070
S020163301
16.00
22.00
4.00
NBR
SUA-2660
S020161003
16.00
22.00
4.50
NBR
SUA-1253
S020164502
16.00
22.00
5
SILICON
SUA-1967
S020161104
16.00
22.00
5.50
NBR
SUA-2438
S02016L501
16.00
22.00
8
PU
PUA-909
S020161007
16.00
23.00
6.20
NBR
SUA-2248
S020161004
16.00
24.00
5.40
NBR
SUA-2020
S020160901
16.00
24.00
5.5
NBR
SUA-659
S02016L502
16.00
24.00
5.50
PU
PUA-191
S020166502
16.00
24.00
5.50
FKM
SUA-1110
S020160903
16.00
24.00
5.50
NBR
SUA-1136
S020160803
16.00
24.00
5.50
NBR
SUA-1743
S020161008
16.00
24.00
5.50
NBR
SUA-2681
S020166703
16.00
24.00
6.50
FKM
SUA-2578
S020166605
16.00
24.00
6.60
FKM
SUA-1978
S020166501
16.00
26.00
6
FKM
SUB-3656
S02017U201
17.00
24.00
2.80
FKM
SUA-1671
S020170801
17.00
24.00
5.50
NBR
SUA-1772
S02018CF01
18.00
24.00
5.50
PU
PUA-970
S020186601
18.00
25.00
5.5
FKM
SUA-977
S020181003
18.00
26.00
4.20
NBR
SUB-3254
S020186603
18.00
26.00
5.50
FKM
SUB-2200
S020186501
18.00
26.00
6
FKM
SUB-3556
S020196401
19.00
25.00
5.00
FKM
SUA-2769
S020201004
20.00
24.00
2.70
NBR
SUA-2164
S020206603
20.00
24.00
2.78
FKM
SUA-1619
S020201003
20.00
26.00
4.00
NBR
SUB-1626
S020200802
20.00
26.00
4.80
NBR
SUB-1081
S020206606
20.00
26.00
4.80
FKM
SUB-3982
S020206604
20.00
28.00
4.70
FKM
SUB-3372
S02020L503
20.00
28.00
5.00
PU
PUB-215
S020206605
20.00
28.00
5.00
FKM
SUB-3679
S020206602
20.00
28.00
5.5
FKM
SUB-1345
S020200902
20.00
28.00
5.5
NBR
SUB-229
S020201102
20.00
28.00
5.50
NBR
SUB-1621
S02020L401
20.00
28.00
5.60
PU
PUB-1178
S020200901
20.00
28.00
5.90
NBR
SUB-2839
S020206401
20.00
29.00
6.20
FKM
SUB-4061
S020206403
20.00
29.00
6.70
FKM
SUB-4062
S020200803
20.00
30.00
3/5.50
NBR
SUB-3079
S020201006
20.00
30.00
5.00
NBR
SUB-4562
S020206501
20.00
30.00
6
FKM
SUB-3659
S02020L502
20.00
30.00
8
PU
PUB-1261
S020216601
21.50
30.00
8
FKM
SUB-3305
S020226502
22.00
29.00
5.30
FKM
SUB-1187
S020226602
22.00
32.00
6
FKM
SUB-3466
S020221004
22.00
32.00
6
NBR
SUB-3467
S020236601
23.00
31.00
5.50
FKM
SUB-1369
S020231001
23.00
32.00
6.00
NBR
SUB-558
S020241003
24.00
32.00
5.10
NBR
SUB-3876
S020241004
24.00
37.00
6.70
NBR
SUB-1027
S020241001
24.00
37.00
6.70
NBR
SUB-3071
S020250901
25.00
31.00
3.80
NBR
SUB-1615
S020251104
25.00
31.00
8
NBR
SUB-3437
S020250803
25.00
32.00
5.50
NBR
SUB-4527
S020251006
25.00
32.00
6.50
NBR
SUB-3347
S02025Q202
25.00
33.00
3.60
PU
PUB-306
S020256702
25.00
33.00
5.30
FKM
SUB-2693
S020256603
25.00
33.00
5.5
FKM
SUB-1879
S020256703
25.00
33.00
5.50
FKM
SUB-4685
S020250804
25.00
33.00
5.50
NBR
SUB-4713
S020251009
25.00
35.00
5.00
NBR
SUB-1249
S020256501
25.00
35.00
6
FKM
SUB-3657
S020250801
25.00
35.00
6.00
NBR
SUB-2217
S020251101
25.00
35.00
7
NBR
SUB-1574
S020256602
25.00
35.00
7
FKM
SUB-1729
S020251007
25.00
35.00
7.00
NBR
SUB-4324
S02025Q201
25.00
38.00
6.70
PU
PUB-1872
S020251004
25.40
34.92
5.10
NBR
SUB-2698
S020251102
25.40
38.10
6.35
NBR
SUB-1622
S020250902
25.40
38.10
6.50
NBR
SUB-2759
S020251005
25.50
36.00
5
NBR
SUB-2812
S020260801
26.00
32.00
6.90
NBR
SUB-3235
S020266501
26.00
36.00
7.00
FKM
SUB-4599
S020261002
26.00
40.00
7
NBR
SUB-3625
S020266601
26.50
33.00
6.30
FKM
SUB-2190
S020281001
28.00
33.00
3.00
NBR
SUB-4177
S020286605
28.00
36.00
5.34
FKM
SUB-4262
S020280901
28.00
36.00
5.50
NBR
SUB-116
S020286603
28.00
36.00
5.50
FKM
SUB-1727
S02028Q201
28.00
38.00
7.00
PU
PUB-434
S02028Q202
28.00
40.00
8.50
PU
PUB-432
S02029X401
29.00
34.00
3.00
PU
PUB-1858
S020306603
30.00
38.00
5.30
FKM
SUB-3299
S020300805
30.00
38.00
5.40
NBR
SUB-2520
S020301108
30.00
38.00
5.50
NBR
SUB-4336
S02030L502
30.00
39.00
10
PU
PUB-1428
S020300803
30.00
40.00
4.5/7.50
NBR
SUB-3078
S020300804
30.00
40.00
5.70
NBR
SUB-4583
S020300802
30.00
40.00
5/7
NBR
SUB-3081
S020306501
30.00
40.00
6
FKM
SUB-3557
S020301002
30.00
40.00
7
NBR
SUB-1503
S020306602
30.00
40.00
7
FKM
SUB-2198
S02030S401
30.00
42.00
7.30
HNBR
SUB-767
S020300806
30.55
38.49
5.70
NBR
SUB-1230
S020319901
31.75
44.45
12
SBR
SUB-3267
S020311101
31.75
44.45
6.35
NBR
SUB-1570
S020320801
32.00
38.00
3.50
NBR
SUB-2652
S020321005
32.00
40.00
6.00
NBR
SUB-4337
S020326401
32.00
42.00
6.00
FKM
SUB-1477
S020326602
32.00
42.00
6.50
FKM
SUB-4350
S020321006
32.00
42.00
7.00
NBR
SUB-1474
S020326701
32.00
42.00
7.00
FKM
SUB-1731
S02032S401
32.00
42.00
7.30
HNBR
SUB-1270
S020326603
32.00
42.00
8.00
FKM
SUB-4631
S020340901
34.92
44.45
5.50
NBR
SUB-2757
S020351003
35.00
43.00
4.5
NBR
SUB-2104
S020351004
35.00
43.00
8
NBR
SUB-3034
S020356401
35.00
45.00
6.00
FKM
SUB-1368
S020356602
35.00
45.00
6.50
FKM
SUB-3978
S020356603
35.00
46.00
7.50
FKM
SUB-3749
S020351103
35.00
48.00
7.00
NBR
SUB-3725
S020356601
35.00
50.00
7
FKM
SUB-2592
S020356604
35.00
50.00
9.40
FKM
SUB-3800
S020361005
36.00
46.00
7
NBR
SUB-1923
S020366601
36.00
46.00
7.00
FKM
SUB-1783
S020361003
36.00
46.00
7.50
NBR
SUB-3120
S020366501
36.00
46.00
8.00
FKM
SUB-4592
S020366603
36.00
56.00
7.40
FKM
SUC-2877
S020381003
38.00
48.00
7
NBR
SUB-2474
S020382201
38.00
50.00
10.00
NEOPRENE
SUB-3881
S02038S401
38.00
50.00
7.00
HNBR
SUB-1442
S020386601
38.10
52.10
7.00
FKM
SUC-2679
S020396601
39.50
48.00
8
FKM
SUB-3297
S020406606
40.00
48.00
6.30
FKM
SUB-4002
S020401008
40.00
48.00
7.00
NBR
SUB-3977
S020406603
40.00
48.00
8
FKM
SUB-2664
S020401004
40.00
48.00
8
NBR
SUB-3488
S020406607
40.00
50.00
10.00
FKM
SUB-4003
S020406501
40.00
50.00
6
FKM
SUB-3658
S020406601
40.00
50.00
7
FKM
SUB-1877
S02040Q201
40.00
50.00
7.00
PU
PUB-723
S020401011
40.00
50.00
7.00
NBR
SUB-4779
S020401006
40.00
50.00
8
NBR
SUB-3635
S020406608
40.00
50.00
8.0
FKM
SUB-4351
S020401007
40.00
50.00
9.50
NBR
SUB-3711
S020406604
40.00
52.00
7
FKM
SUC-1880
S02040Q202
40.00
52.00
8.50
PU
PUC-589
S020401010
40.00
53.00
10.00
NBR
SUC-2921
S020401009
40.00
58.00
9.40
NBR
SUC-2738
S02042L501
42.00
50.00
3.80
PU
PUB-2195
S02043L501
43.00
51.00
3.80
PU
PUC-1538
S020431001
43.00
51.00
3.80
NBR
SUC-2606
S020441001
44.45
52.36
4
NBR
SUC-1162
S020441002
44.45
53.97
7.14
NBR
SUC-2271
S020446601
44.45
60.32
8
FKM
SUC-1195
S024400601
44.45
66.67
12.70
NBR/FABRIC
SUC-2866
S020456605
45.00
53.00
7.50
FKM
SUC-1081
S020456604
45.00
54.00
7
FKM
SUC-2029
S020456602
45.00
55.00
7
FKM
SUC-1523
S020451002
45.00
55.00
7.00
NBR
SUC-2664
S020451101
45.00
55.00
8
NBR
SUC-833
S020456501
45.00
57.00
10
FKM
SUC-2003
S020481001
48.00
58.00
7.00
NBR
SUC-1142
S020501103
50.00
60.00
11.50
NBR
SUC-2024
S020506701
50.00
60.00
7
FKM
SUC-1031
S020501004
50.00
60.00
7.00
NBR
SUC-2553
S020506605
50.00
60.00
7.50
FKM
SUC-1993
S020501002
50.00
60.00
9
NBR
SUC-2202
S02050X901
50.00
62.00
8.00
NBR
SUC-1023
S020506705
50.00
62.00
8.00
FKM
SUC-3123
S020506602
50.00
63.00
8
FKM
SUC-756
S020506501
50.00
63.00
9.50
FKM
SUC-1878
S020506609
50.00
63.70
7.00/10.30
FKM
SUC-2851
S020506608
50.00
65.00
9.00
FKM
SUC-2637
S020586501
50.00
70.00
12
FKM
SUC-2261
S020501003
50.80
60.32
7.14
NBR
SUC-2272
S020500901
50.80
63.50
9.52
NBR
SUC-1985
S020503201
50.80
65.08
8.1
EPDM
SUC-1699
S020506607
50.80
65.08
8.10
FKM
SUC-2835
S020510701
51.00
66.00
8.00
NBR
SUC-3004
S020521101
52.00
69.00
9.00
NBR
SUC-2805
S020535901
53.00
63.00
4
PU
PUC-823
S020546601
54.00
66.00
8
FKM
SUC-2410
S020550801
55.00
65.00
7.50
NBR
SUC-1845
S020561101
56.00
66.00
7
NBR
SUC-913
S020566501
56.00
66.00
8.00
FKM
SUC-3085
S020561102
56.00
70.00
12.00
NBR
SUC-2482
S020576601
57.00
70.00
5.70
FKM
SUC-1987
S020601001
60.00
80.00
10
NBR
SUD-1602
S020610801
61.92
76.20
9.10
NBR
SUD-2220
S02061R101
61.92
76.20
9.10
FSL
SUD-2301
S020616401
61.92
76.20
9.10
FKM
SUD-2361
S020631102
63.00
75.00
8.5
NBR
SUC-1377
S020636601
63.00
78.00
10.00
FKM
SUD-1983
S020636502
63.00
78.00
9
FKM
SUD-1380
S020631001
63.00
78.00
9
NBR
SUD-791
S020653301
65.00
77.00
8.50
EPDM
SUD-1768
S020650801
65.00
77.00
8.50
NBR
SUD-853
S020654301
65.00
80.00
5.50
SILICON
SUD-1427
S020701001
70.00
80.00
8
NBR
SUD-1699
S020706603
70.00
82.00
10
FKM
SUD-1762
S020706604
70.00
82.00
8.50
FKM
SUD-2492
S020700802
70.00
85.00
9.10
NBR
SUD-877
S020706601
70.00
88.00
12
FKM
SUD-900
S020705901
70.00
90.00
9.60
PU
PUD-146
S020710801
71.83
85.72
9.10
NBR
SUD-2219
S020716401
71.83
85.72
9.10
FKM
SUD-2227
S020751101
75.00
87.00
8.50
NBR
SUD-577
S020766602
76.00
86.50
10.70
FKM
SUD-1505
S020766601
76.00
97.00
14.70
FKM
SUD-1469
S020780901
78.00
86.00
13.50
NBR
SUD-1535
S020801103
80.00
92.00
9
NBR
SUD-1411
S020806401
80.00
95.00
10.10
FKM
SUD-2426
S020800801
80.00
95.00
10.10
NBR
SUD-2499
S020805901
80.00
100.00
9.60
PU
PUD-147
S020806601
80.00
100.00
9.70
FKM
SUD-901
S020821101
82.00
100.00
13
NBR
SUD-1667
S020821001
82.00
103.00
8.50
NBR
SUE-1181
S020841001
84.00
96.00
13
NBR
SUD-1534
S020841002
84.00
96.00
13.00
NBR
SUD-1996
S020881001
88.00
100.00
8.5
NBR
SUD-1117
S020900801
90.00
105.00
9.10
NBR
SUE-1617
S020951101
95.25
107.95
8.40
NBR
SUE-1149
S021000901
100.00
110.00
6.70
NBR
SUE-1483
S021101001
110.00
125.00
9
NBR
SUE-1211
S021261001
126.00
145.00
12.50
NBR
SUF-846
S021301101
130.00
145.00
10
NBR
SUF-816
S021521101
152.40
171.44
14
NBR
SUG-688
S021906601
190.00
210.00
12.30
FKM
SUJ-289
S022250801
225.00
250.00
14.00
NBR
SUK-353
S022506401
250.00
283.00
20
FKM
SUM-780
S022601001
260.00
293.00
20.00
NBR
SUM-126
S022956701
295.65
305.30
4.06
FKM
SUM-575
S023006602
300.00
330.00
20.00
FKM
SUM-929
S023296701
329.43
339.09
4.06
FKM
SUM-574
S023401001
340.00
364.00
23.50
NBR
SUM-691
For customised items please
Click here
Login
