Profile : Rod Seals


Spareage : S06

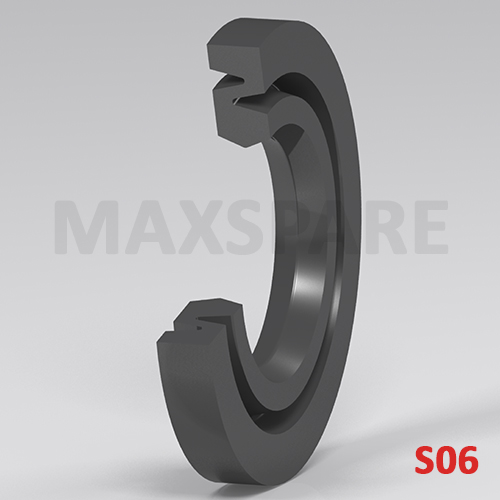

S06 Assembly

Details :
S06 is a double acting pneumatic seal for rod sealing applications. It is mainly mounted on pneumatic cylinders but can also be used on pneumatic valves. The seal profile is rounded in the center on the dynamic lip and has two projections on the static lip. It is very easy to install due to its symmetrical profile. Particularly sliding even at low pressure.
MATERIAL
  • Pneumatic Cylinders.
  • Pneumatic Valves.
  • Short-stroke cylinders.
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C (NBR)
: -40° C to + 220° C (FKM)
Pressure : 12 Bar
Speed : 1.0 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Dry and oil-free air.
APPLICATION
Nitrile Rubber 80/85 Shore A.FKM Rubber 80/85 Shore A.
FEATURES
  • The compact design.
  • Suitable for short piston designs.
  • The rounded sealing profile and the flexible centre part give good tightness with low friction and maintain an effective lubricating film.
  • Widely proven design.
  • Low friction.
  • Long service life.

Manufactured by: Max Spare Limited
Product ID: 51i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
S0600508015.4514.602.30NBR     SUA-2315
S0600708017.4516.602.30NBR     SUA-2316
S06008Q2018.0014.503.00PU     PUA-936
S0600809038.0015.502.25NBR     SUA-686
S06010080210.0017.002.2NBR     SUA-881
S06011S80111.0017.003.00NBR     SUA-727
S06011650211.5020.002.2FKM     SUA-1429
S06011650111.6019.802.2FKM     SUA-1113
S06012080112.0019.002.2NBR     SUA-489
S06012090112.0019.002.20NBR     SUA-1293
S06015100215.0021.003NBR     SUA-1249
S06015660315.0022.002.3FKM     SUA-1247
S06015640115.0022.002.30FKM     SUA-1507
S06015090115.8022.706.50NBR     SUA-382
S06016100216.0020.003NBR     SUA-1737
S06016090216.0020.503NBR     SUA-1294
S06016640116.0025.002.80FKM     SUA-2277
S06016650116.0025.003FKM     SUA-1732
S06016100116.0025.003NBR     SUA-888
S06016090116.0026.002.80NBR     SUB-2211
S06016650216.0026.002.80FKM     SUB-4277
S06019090119.5030.702.80NBR     SUB-1995
S06020650220.0029.002.80FKM     SUB-1385
S06020090120.0029.002.80NBR     SUB-4280
S06020100120.0029.003NBR     SUB-102
S06020660220.0029.003FKM     SUB-1714
S06019090220.0030.502.80NBR     SUB-4788
S06023100123.0029.003NBR     SUB-2772
S06025650225.0034.002.80FKM     SUB-1484
S06025100125.0034.003NBR     SUB-2014
S06025650125.0034.003.00FKM     SUB-2051
S06025100225.0036.003.00NBR     SUB-4251
S06028100128.0036.003.00NBR     SUB-3812
S06030100330.0038.003NBR     SUB-3024
S06030100130.0039.003NBR     SUB-1137
S06030660130.0039.003FKM     SUB-2214
S06030100230.0040.002.80NBR     SUB-2815
S06032100132.0040.003NBR     SUB-2641
S06040100240.0049.002.80NBR     SUB-1406
S06040650140.0049.002.80FKM     SUB-3472
S06040100140.0049.003NBR     SUB-1286
S06040080140.0050.002.70NBR     SUB-3899
S06040090140.0050.002.70NBR     SUB-4076
S06050660150.0059.002.80FKM     SUC-2284
S06055590155.0066.004.20PU     PUC-1041
S06070090170.0082.507.75NBR     SUD-1903
S06070100170.0085.506.30NBR     SUD-1833
S061206401120.00129.205.50FKM     SUF-921
