Profile : Symmetrical Seals


Spareage : E01

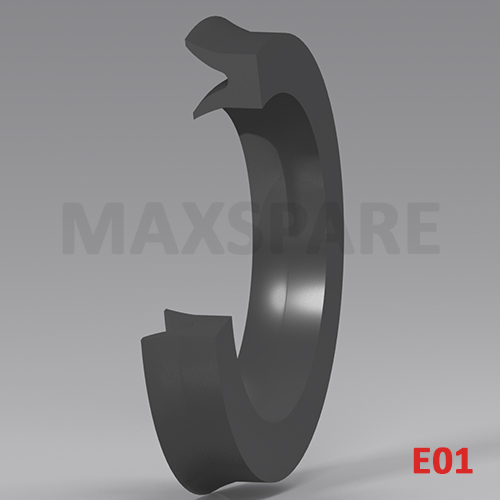

E01 Assembly

Details :
E01 is a single acting pneumatic seal with U-shaped cross section. Its symmetric profile with long sealing lip guarantees a secure seat in the grooves especially for small section grooves. The special lip design for pneumatic application to maintain lubricating film and minimize friction.
MATERIAL
  • Pneumatic Cylinders.
  • Pneumatic Valves.
  • Short-stroke cylinders.
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C (NBR)
: -40° C to + 220° C (FKM)
Pressure : 12 Bar
Speed : 1.0 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Dry and oil-free air.
APPLICATION
Nitrile Rubber 80/85 Shore A.FKM Rubber 80/85 Shore A.
FEATURES
  • Symmetrical seal for piston and rod application.
  • Easy snap fit installation.
  • Long service life.
  • Suitable for use in lubricated as well as dry and oil-free air. (after initial lubrication during assembly).

Manufactured by: Max Spare Limited
Product ID: 439i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
E01006L5016.0012.0010PU     PUA-602
E01006L5016.0012.0010PU     PUA-620
E0100609016.0012.0010.00NBR     SUA-1395
E0100608036.0013.0010.00NBR     SUA-2358
E01006L5026.0014.0010PU     PUA-603
E01006L5026.0014.0010PU     PUA-619
E01006108016.0014.0010NBR     SUA-1854
E0100608026.0016.0010NBR     SUA-1960
E0100639016.0018.005.80SILICON     SUA-2536
E0100909019.0423.748.63NBR     SUA-2475
E0100909029.0439.828.25NBR     SUB-4173
E01010660110.0016.004.00FKM     SUA-2474
E01010100310.0018.008NBR     SUA-1379
E01011660111.0019.004.80FKM     SUA-495
E01012090112.0018.006NBR     SUA-2019
E01012100512.0019.504NBR     SUA-2032
E01012660112.7019.053.17FKM     SUA-2674
E01015110215.0030.0010.30NBR     SUB-4238
E01015660215.8825.404.76FKM     SUB-2599
E01016110216.0026.007.3NBR     SUB-1188
E01016100416.5022.505.00NBR     SUA-2443
E01017100217.0023.005.00NBR     SUA-2351
E01018100718.0026.004.10NBR     SUB-2610
E01018100818.0029.005NBR     SUB-2684
E01018660118.0030.007FKM     SUB-3276
E01020090120.0028.007NBR     SUB-3394
E01020670120.0040.0010FKM     SUB-3306
E01022670122.0030.005.7FKM     SUB-1321
E01022A60122.0030.005.90NBR/FABRIC     SUB-4894
E01022100922.0031.005.50NBR     SUB-981
E01022660122.2231.754.76FKM     SUB-1161
E01023100223.0032.005.50NBR     SUB-975
E01025660325.4031.753.17FKM     SUB-4620
E01025101325.4031.756.35NBR     SUB-4451
E01025D60125.4044.459.53HNBR     SUB-4157
E01028330128.5738.104.70EPDM     SUB-4314
E01029M10129.0044.0010.00HNBR     SUB-1423
E01030100130.0040.006NBR     SUB-177
E01030100530.0040.006NBR     SUB-2440
E01030090130.0045.0010NBR     SUB-3050
E01030100630.0060.0015.80NBR     SUC-1900
E01031330131.7544.456.35EPDM     SUB-4298
E01034100234.9242.843.96NBR     SUB-4435
E01035110235.0045.0010NBR     SUB-1231
E01035100435.0050.0010NBR     SUB-1616
E01035M10135.0055.0010.50HNBR     SUC-1086
E01035100735.0065.0013.80NBR     SUC-2331
E01036100136.0050.008NBR     SUB-3607
E01038660238.0052.007FKM     SUC-2203
E01038110138.0054.0011NBR     SUC-1848
E01038100338.1050.809.52NBR     SUC-2568
E01040100740.0050.0010NBR     SUB-3268
E01040120140.0060.0010NBR     SUC-2136
E01045A60145.0057.007.00NBR/FABRIC     SUC-3134
E01045060145.0063.0010NBR/FABRIC     SUC-1995
E01045110145.0065.0010NBR     SUC-2119
E01045080345.0072.0015.00NBR+ACT-1     SUC-2634
E01045090145.0075.0020NBR     PFB-656
E01045090145.0075.0020NBR     SUC-1652
E01045100145.0075.0020.00NBR     SUC-2652
E01045080445.0075.0020.00NBR     SUC-2807
E01050640150.0063.009.20FKM     SUC-2689
E01050-SUC-66450.0070.0012NBR     SUC-664
E01050660350.0070.0012.00FKM     SUC-2617
E01050100550.8063.509.52NBR     SUC-2596
E01050660250.8070.0010FKM     SUC-2299
E01054100153.9292.1225.40XNBR     SUD-1521
E01055060155.0070.0012NBR/FABRIC     SUC-1996
E01056670256.0066.5011FKM     SUC-994
E01057110157.1588.9028.57NBR     SUD-1878
E01060100360.0090.0017NBR+ACT-1     SUD-1910
E01060100161.0075.008.50NBR     SUC-3136
E01063100363.16105.1016.76NBR     SUE-1189
E0163.3080.008.7/9.70NBR     SUD-2010
E01063100263.30105.0017.06XNBR     SUE-1049
E01063100463.5076.209.52NBR     SUD-2121
E01065D60165.08103.1817.06HNBR     SUE-1535
E01066110266.70101.3517.80NBR     SUE-1269
E01069110169.85101.6025.15NBR     SUE-1435
E01073660173.1080.505FKM     SUD-1674
E01075090175.0095.0010.00NBR     SUD-2500
E01076100376.2088.909.52NBR     SUD-2042
E01076A60176.20101.6012.70NBR/FABRIC     SUE-1402
E01082110182.55101.6012.90NBR     SUE-1388
E01083100283.05103.6012.70NBR     SUE-1306
E01083110183.74101.6014.08NBR     SUE-1383
E01088C30188.90127.0017.27XNBR     SUF-1008
E01090620190.00110.0012.50FKM/FABRIC     SUE-1606
E01090650190.00115.0014FKM     SUE-1227
E01091C30191.87133.5725.40XNBR     SUF-104
E01095A60195.25114.3012.70NBR/FABRIC     SUE-1385
E01095100195.25114.309.52NBR     SUE-1648
E01099C40199.31142.7423.49XNBR     SUF-1020
E011006602100.00125.0011.60FKM     SUE-667
E011001001100.00125.0012NBR     SUE-1108
E011071001107.95127.0012.70NBR     SUF-136
E011108701110.00125.0010PU     PUE-778
E011101002110.00125.0015NBR     SUE-821
E011106603110.00130.0015.00FKM     SUF-956
E011108302110.00150.0020.00NBR/FABRIC     SUF-1139
E011141001114.30127.009.52NBR     SUF-929
E01115CG01115.00145.0016.00PU     PUF-343
E01120A601120.65139.7012.70NBR/FABRIC     SUF-1110
E01123C301123.62174.8225.40XNBR     SUG-104
E011251001125.00155.0015.00NBR     SUG-796
E011306601130.00150.009.00FKM     SUF-1124
E011301001130.00150.009.00NBR     SUF-1141
E011331002133.00164.0014.70NBR     SUG-1034
E0113406601134.93147.6318.00FKM     SUF-1217
E011350902135.00148.0018.00NBR     SUF-1207
E011356401135.00150.009.00FKM     SUF-1101
E011391001139.70152.409.52NBR     SUG-973
E011401002140.00155.008NBR     SUG-668
E011501003150.00180.0014.50NBR     SUH-421
E011591001159.25179.8012.70NBR     SUH-490
E011600802160.00190.0014.50NBR     SUH-277
E011681001168.27203.2019NBR     SUJ-316
E011689001168.30232.0045.00NBR/FABRIC     SUK-112
E011706602170.00201.0016.00FKM     SUJ-432
E011771003177.00206.0020.00NBR     SUJ-491
E01184A601184.15203.2012.70NBR/FABRIC     SUJ-438
E011843501184.15203.2012.70EPDM     SUJ-501
E011841001184.65205.2012.70NBR     SUJ-413
E011901001190.50203.209.52NBR     SUJ-515
E012001002200.02212.726.35NBR     SUJ-523
E01203A601203.20234.9515.88NBR/FABRIC     SUK-376
E012091001209.55228.6012.70NBR     SUK-322
E01209A601209.55228.6012.70NBR/FABRIC     SUK-369
E01209A602209.55241.3015.88NBR/FABRIC     SUK-382
E012100801210.00250.0019.00NBR     SUK-356
E012250601225.00260.0018.00NBR     SUM-213
E012306401230.00255.0011.20FKM     SUM-830
E01234A601234.95254.0012.70NBR/FABRIC     SUM-131
E012341001234.95254.0012.70NBR     SUM-823
E012506601250.00274.0011FKM     SUM-687
E01251D601251.00269.0013HNBR     SUM-695
E01254A601254.00279.4015.87NBR/FABRIC     SUM-813
E01273A602273.05292.1012.70NBR/FABRIC     SUM-205
E01273A601273.05304.8018.50NBR/FABRIC     SUM-829
E012776701277.00291.0013.00FKM     SUM-785
E012770901277.80304.8017.00NBR     SUM-135
E012851001285.75304.8012.70NBR     SUM-802
E012856601285.75304.8012.70FKM     SUM-918
E012861001286.00300.0010NBR     SUM-294
E01288A601288.93320.6730.00NBR/FABRIC     SUM-927
E013156601315.00350.0022.00FKM     SUM-908
E013171001317.00345.0014.50NBR     SUM-957
E01333A601333.37352.4212.70NBR/FABRIC     SUM-108
E013346701334.00348.0013.00FKM     SUM-784
E013366601336.55355.6012.70FKM     SUM-134
E013361001336.55355.6012.70NBR     SUM-826
E013700801370.00400.0015.00NBR     SUM-130
E01376S401376.00400.0018.00HNBR     SUM-806
E01381A601381.00425.0025.40NBR/FABRIC     SUVG-101
E013841001384.17406.4011.10NBR     SUVG-731
E014201001420.00450.0015.00NBR     SUVG-742
E014348301434.97463.5519.70NBR/FABRIC     SUVG-556
E01438A601438.15457.2012.70NBR/FABRIC     SUVG-692
E014700801470.00510.0020NBR     SUVG-734
E014806001480.00530.0025CPU     CPU-136
E01481D601481.00505.0018HNBR     SUVG-625
E014870901487.00500.007.40NBR     SUVG-138
E015006602500.00530.0016.00FKM     SUVG-708
E01500-SUVG-255500.00550.0029.5NBR     SUVG-255
E01514001514.35533.4012.70NBR     SUVG-681
E015206001520.00550.0025CPU     CPU-125
E015325201532.63558.8020.89NEOPRENE/FABRIC     SUVG-705
E015811001581.20612.5919.10NBR     SUVG-679
E016076601607.00631.0011.00FKM     SUVG-751
E01609A601609.60647.7025.40NBR/FABRIC     SUVG-787
E016201005620.00650.0015NBR     SUVG-665
E016341001634.50660.4020NBR     SUVG-349
E016356601635.00660.4018.98FKM     SUVG-188
E016450801645.00695.0025.00NBR     SUVG-789
E017526601752.00769.507.10FKM     SUVG-722
E017701101770.00800.0015NBR     SUVG-616
E0199910101200.001250.0035NBR     SUVG-227




For customised items please Click here
