Max Spare : E05
Profile : Symmetrical Seals
Details :

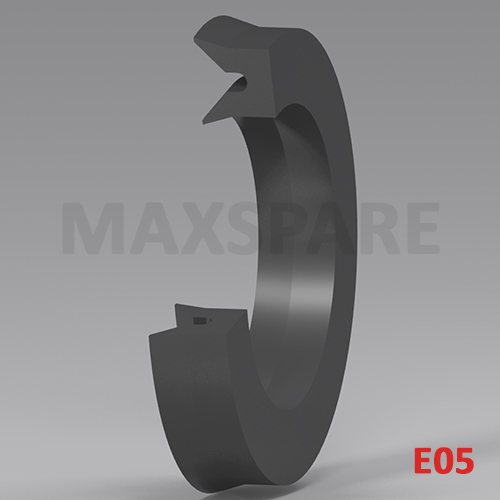

E05 is a single acting pneumatic seal with U-shaped cross section. Its symmetric profile with long sealing lip guarantees a secure seat in the grooves especially for small section grooves. The special lip design for pneumatic application to maintain lubricating film and minimize friction.
MATERIAL
Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
Pressure
:
12 Bar
Speed
:
1.0 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Dry and oil-free air.
APPLICATION
Nitrile Rubber 80/85 Shore A.
FEATURES
Symmetrical seal for piston and rod application.
Easy snap fit installation.
Long service life.
Suitable for use in lubricated as well as dry and oil-free air. (after initial lubrication during assembly).
Manufactured by:
Max Spare Limited
Product ID:
58i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
E050171001
0.00
0.00
16.00
NBR
EXP-107
E050191006
0.00
0.00
16.00
NBR
EXP-215
E050191005
0.00
0.00
17.00
NBR
EXP-216
E050091001
0.00
9.00
12.00
NBR
EXP-128
E050171002
0.00
17.00
22.00
NBR
EXP-143
E050220901
0.00
22.50
28.50
NBR
EXP-111
E050066603
6.00
16.00
6.5
FKM
SUA-1181
E05006D601
6.00
16.80
6
HNBR
SUA-1790
E050081001
8.00
14.00
4
NBR
SUA-1705
E050106604
10.00
16.00
7
FKM
SUA-2007
E050104501
10.00
18.00
6.50
SILICON
SUA-2009
E050106603
10.00
22.00
6.5
FKM
SUA-1182
E05010D601
10.00
22.00
6.60
HNBR
SUA-1794
E050120901
12.00
27.00
8.00
NBR
SUB-4765
E050120902
12.70
21.00
5.10
NBR
SUA-704
E050143601
14.00
21.00
5.00
SILICON
SUA-708
E05014V201
14.00
22.00
4.00
NBR
SUA-2381
E05015D601
15.00
30.00
7
HNBR
SUB-2991
E050161003
16.00
22.00
4.50
NBR
SUA-2517
E050161002
16.00
28.00
5.7
NBR
SUB-136
E050164501
16.00
28.00
5.70
SILICON
SUB-3822
E050204301
20.00
28.00
4.20
SILICON
SUB-4153
E050206603
20.00
28.00
5
FKM
SUB-1153
E050201003
20.00
28.00
5
NBR
SUB-1418
E05021L401
21.30
43.00
13
PU
PUB-639
E05022P401
22.00
30.00
5.50
NBR
SUB-4604
E050226601
22.00
30.00
5.60
FKM
SUB-2648
E050231101
23.02
38.10
7.70
NBR
SUB-2640
E050241001
24.00
32.00
5.30
NBR
SUB-1426
E050241101
24.00
38.00
7.70
NBR
SUB-2767
E050246401
24.00
44.00
9.5
FKM
SUB-985
E050246701
24.30
34.00
4
FKM
SUB-2770
E050254301
25.00
32.50
4.10
SILICON
SUB-4154
E050251101
25.00
35.00
5.10
NBR
SUB-4636
E050251007
25.00
36.00
9
NBR
SUB-3536
E050251006
25.00
38.00
6
NBR
SUB-1405
E050256601
25.00
38.00
6
FKM
SUB-3572
E050256603
25.40
32.00
5.00
FKM
SUB-4443
E050256602
25.40
37.00
5.00
FKM
SUB-4442
E05026L401
26.70
43.00
13
PU
PUB-640
E050281001
28.00
36.00
6
NBR
SUB-1774
E050286602
28.00
36.00
6
FKM
SUB-3583
E050303401
30.00
39.00
7.5
EPDM
SUB-2065
E050306601
30.00
40.00
5
FKM
SUB-2686
E050308401
30.00
40.00
6.25
NBR/FABRIC
SUB-2836
E050301004
30.00
40.00
7.00
NBR
SUB-3942
E050301002
30.00
48.00
7
NBR
SUB-2723
E050300801
30.16
38.10
4.35
NBR
SUB-4640
E05030L501
30.50
40.00
6
PU
PUB-1474
E050301003
30.50
40.00
6
NBR
SUB-3463
E050321003
32.00
40.00
5
NBR
SUB-2722
E050321005
32.00
42.00
7.00
NBR
SUB-3901
E050323401
32.00
43.00
9.50
EPDM
SUB-4828
E050321004
32.00
44.00
10
NBR
SUB-2724
E05033L401
33.40
53.40
13
PU
PUC-511
E05035D601
35.00
43.00
10.00
HNBR
SUB-1357
E050356603
35.00
44.50
5.00
FKM
SUB-4178
E05035P401
35.00
45.00
7.50
NBR
SUB-4605
E050351101
35.00
48.00
7.00
NBR
SUB-4304
E050350801
35.00
50.00
8
NBR
SUB-2379
E050364301
36.00
44.00
4.20
SILICON
SUB-4152
E050381002
38.00
50.00
7
NBR
SUB-2473
E050381004
38.00
50.00
9.00
NBR
SUB-4222
E050381003
38.00
52.00
9.50
NBR
SUC-2229
E050386601
38.10
53.97
6.98
FKM
SUC-1641
E050391001
39.50
48.00
7
NBR
SUB-2743
E050401002
40.00
49.00
7
NBR
SUB-1844
E050401101
40.00
50.00
5
NBR
SUB-3402
E050406603
40.00
50.00
6.30
FKM
SUB-2647
E050406604
40.00
50.00
6.80
FKM
SUB-2735
E050401004
40.00
50.00
7
NBR
SUB-3640
E050401005
40.00
55.00
8.50
NBR
SUC-2826
E050401003
40.00
60.00
10
NBR
SUC-2131
E050421101
42.00
50.00
7.00
NBR
SUB-107
E05042D601
42.00
50.00
7.50
HNBR
SUB-4618
E05042L401
42.00
60.80
13
PU
PUC-512
E050440601
44.45
57.15
6.35
NBR
SUC-2633
E050458301
45.00
55.00
7.50
NBR/FABRIC
SUC-1116
E050458402
45.00
63.50
11.00
NBR/FABRIC
SUC-2700
E05048L401
48.00
68.00
13
PU
PUC-517
E050506701
50.00
60.00
6
FKM
SUC-2395
E050506603
50.00
60.00
7
FKM
SUC-2016
E050501003
50.00
63.00
11
NBR
SUC-861
E050501004
50.00
64.00
11.00
NBR
SUC-3135
E050501102
50.00
70.00
10
NBR
SUC-2100
E050508301
50.80
69.85
12.70
NBR/FABRIC
SUC-109
E050510901
51.00
63.00
10.80
NBR
SUC-2834
E050526602
52.00
62.00
7
FKM
SUC-1868
E050526701
52.00
65.00
6.35
FKM
SUC-2692
E050526603
52.75
63.00
6.00
FKM
SUC-3017
E050536701
53.00
63.00
4
FKM
SUC-1905
E05053L501
53.00
63.00
4.75
PU
PUC-781
E050531002
53.00
63.00
5
NBR
SUC-1966
E050531003
53.00
63.00
7.00
NBR
SUC-2646
E050558401
55.00
70.00
7.50
NBR/FABRIC
SUC-2211
E050576501
57.00
69.00
8
FKM
SUC-1837
E050571002
57.00
70.00
12
NBR
SUC-2315
E050606603
60.00
72.00
11.50
FKM
SUC-2969
E050606602
60.00
75.00
10
FKM
SUC-2017
E050601004
60.00
80.00
12
NBR
SUD-1619
E050608401
60.00
80.00
9.00
NBR/FABRIC
SUD-806
E05060L401
60.00
85.00
16
PU
PUD-458
E050606604
60.70
76.20
8.00
FKM
SUD-2306
E050631001
63.00
78.00
10
NBR
SUD-1420
E050638401
63.50
79.50
10.00
NBR/FABRIC
SUD-2041
E05063A601
63.50
80.96
11.11
NBR/FABRIC
SUD-2360
E050641001
64.00
76.00
8.00
NBR
SUD-2214
E050651001
65.00
85.00
10.00
NBR
SUD-878
E050691001
69.00
80.00
9.20
NBR
SUD-1831
E050706601
70.00
80.00
3.50
FKM
SUD-1786
E050701002
70.00
80.00
6.50
NBR
SUD-1987
E050701003
70.00
85.00
12.50
NBR
SUD-859
E05073L401
73.00
100.00
16
PU
PUD-457
E050751002
75.00
90.00
5.50
NBR
SUD-1937
E050751001
75.00
95.00
12.50
NBR
SUD-1766
E050761101
76.00
98.00
16
NBR
SUD-1069
E050761001
76.20
93.66
9.70
NBR
SUD-2167
E05079A601
79.37
101.60
14.28
NBR/FABRIC
SUE-1568
E050806602
80.00
100.00
12.00
FKM
SUD-519
E050800801
80.00
100.00
13.00
NBR
SUD-2269
E050801005
80.00
100.00
15
NBR
SUD-1798
E050826602
82.55
101.60
11
FKM
SUE-618
E050828401
82.55
101.60
12.70
NBR/FABRIC
SUE-1010
E050836601
83.00
100.00
11.40
FKM
SUD-1967
E050831001
83.00
100.00
8.50
NBR
SUD-1580
E050831002
83.00
101.00
8.50
NBR
SUE-1363
E05083D601
83.15
104.15
14
HNBR/FABRIC
SUE-1098
E050846601
84.00
101.60
8.20
FKM
SUE-1513
E050851004
85.00
100.00
5
NBR
SUD-1451
E050851006
85.00
100.00
8
NBR
SUD-1812
E050856602
85.00
100.00
9
FKM
SUD-1426
E050851101
85.00
102.00
13
NBR
SUE-1252
E050850901
85.00
102.00
13.00
NBR
SUE-1520
E050851005
85.00
106.00
10.60
NBR
SUE-1133
E050864501
86.00
104.00
13
SILICON
SUE-963
E050876601
87.00
100.00
8.70
FKM
SUD-871
E050886001
88.90
114.30
16
CPU
CPU-110
E05088L401
88.90
114.30
16
PU
PUE-493
E050901005
90.00
105.00
11.50
NBR
SUE-1345
E050906601
90.00
110.00
10
FKM
SUE-689
E050901004
90.00
110.00
15
NBR
SUE-1159
E050908302
90.00
115.00
12.00
NBR/FABRIC
SUE-561
E050908301
90.00
130.00
16.50
NBR/FABRIC
SUF-1138
P280956701
95.00
110.00
10
FKM
SUE-1301
E050956601
95.00
120.00
10
FKM
SUE-690
E05095A601
95.25
120.65
15.30
NBR/FABRIC
SUE-1569
E050991001
99.50
110.00
12.70
NBR
SUE-1482
E051011003
101.60
120.65
13
NBR
SUE-1040
E051016602
101.60
120.65
13
FKM
SUE-1047
E05101A601
101.60
127.00
14.28
NBR/FABRIC
SUF-1120
E051046801
104.77
114.30
9.52
FKM
SUE-1536
E051040801
104.77
114.30
9.52
NBR
SUE-1612
E05104C201
104.77
130.17
12.70
XNBR
SUF-1099
E051052201
105.00
125.00
15.00
NEOPRENE
SUE-1660
E051056601
105.00
130.00
13
FKM
SUF-504
E051106602
110.00
130.00
14.50
FKM
SUF-142
E051106501
110.00
130.00
15
FKM/FABRIC
SUF-989
E051108401
110.00
130.00
15.30
NBR/FABRIC
SUF-1130
E051101002
110.00
140.00
18
NBR
SUF-710
E051131001
113.50
127.00
7.50
NBR
SUF-731
E05114Q201
114.00
125.00
12.50
PU
PUE-198
E051141001
114.00
127.00
7
NBR
SUF-730
E05114150
114.00
150.00
14.50
NBR
SUF-881
E05114L402
114.30
145.00
19
PU
PUF-252
E051151001
115.00
135.00
14.20
NBR
SUF-727
E051256601
125.00
150.00
12.5
FKM
SUF-422
E051250802
125.00
150.00
12.50
NBR
SUF-871
E051251002
125.00
150.00
14.00
NBR
SUF-500
E051251001
125.00
165.00
12
NBR
SUG-719
E051261001
126.00
150.00
12.80
NBR
SUF-690
E051266602
126.00
150.00
13.00
FKM
SUF-1133
E051271101
127.00
147.00
15
NBR
SUF-711
E051276701
127.00
149.22
13
FKM
SUF-703
E051276602
127.00
150.00
13.00
FKM
SUF-472
E051281102
128.00
150.00
13
NBR
SUF-732
E051301001
130.00
150.00
14.5
NBR
SUF-432
E051306501
130.00
150.00
15
FKM/FABRIC
SUF-990
E05130A601
130.00
163.00
21.00
NBR/FABRIC
SUG-211
E051306601
130.50
152.40
9.20
FKM
SUG-867
E051351001
135.00
150.00
14
NBR
SUF-691
E051351002
135.00
160.00
12.00
NBR
SUG-889
E051406601
140.00
153.00
7.5
FKM
SUG-358
E051406603
140.00
153.00
7.50
FKM
SUG-693
E051406602
140.00
170.00
14
FKM
SUG-443
E051408401
140.00
210.00
20
NBR/FABRIC
SUJ-361
E051451001
145.00
160.00
9.50
NBR
SUG-996
E051506601
150.00
170.00
11
FKM
SUG-594
E051500902
150.00
170.00
11.50
NBR
SUG-674
E051500901
150.00
180.00
15
NBR
SUH-417
E051558301
155.58
177.80
12.70
NBR/FABRIC
SUH-448
E051601002
160.00
180.00
16
NBR
SUH-240
E051600801
160.00
190.00
15.00
NBR
SUH-224
E05163L401
163.00
198.00
19
PU
PUH-176
E051651002
165.00
185.00
15
NBR
SUH-468
E051656602
165.10
203.20
19.05
FKM
SUJ-244
E05166L402
166.40
199.60
19
PU
PUH-217
E051701002
170.00
200.00
20
NBR
SUH-440
E051731001
173.50
200.00
16.00
NBR
SUH-550
E051751003
175.00
210.00
20.00
NBR
SUJ-447
E051751004
175.00
212.00
19.50
NBR
SUJ-125
E051756601
175.00
215.00
21
FKM
SUJ-268
E051806603
180.00
192.00
8.00
FKM
SUH-231
E051801005
180.00
200.00
12
NBR
SUH-471
E051801001
180.00
200.00
15.00
NBR
SUH-222
E051802201
180.00
200.00
23
NEOPRENE
SUH-419
E051801004
180.00
205.00
15
NBR
SUJ-381
E051806602
180.00
205.00
15.00
FKM
SUJ-429
E051801002
180.00
206.00
16
NBR
SUJ-319
E051801003
180.00
210.00
15
NBR
SUJ-360
E051821001
182.00
200.00
8.00
NBR
SUH-599
E051851004
185.00
200.00
7.20
NBR
SUH-604
E051881101
188.00
220.00
16
NBR
SUJ-337
E052001001
200.00
240.00
20
NBR
SUK-184
E05206D601
206.37
238.12
15.87
HNBR
SUK-261
E052146401
214.00
250.00
22
FKM
SUK-276
E052146601
214.00
254.70
22.00
FKM
SUM-428
E052151002
215.00
250.00
20.00
NBR
SUK-368
E052186401
218.00
255.27
22
FKM
SUM-675
E052201004
220.00
250.00
15
NBR
SUK-260
E052201005
220.00
250.00
17
NBR
SUK-289
E052201002
220.00
260.00
20
NBR
SUM-311
E05220M101
220.00
260.00
20
HNBR
SUM-569
E052228301
222.25
254.00
23
NBR/FABRIC
SUM-604
E052221002
222.40
254.30
22.00
NBR
SUM-883
E052301003
230.00
260.00
18
NBR
SUM-644
E052322201
232.56
252.80
11.50
NEOPRENE/FABRIC
SUM-596
E052356601
235.00
250.00
16
FKM
SUK-238
E052371001
237.00
265.00
16
NBR
SUM-588
E052406601
240.00
280.00
20
FKM
SUM-603
E05250D601
250.00
265.00
10.00
HNBR
SUM-552
E052501004
250.80
325.00
28.00
NBR
SUM-941
E0525251001
252.00
280.00
11.80
NBR
SUM-640
E052531001
253.00
305.20
22
NBR
SUM-650
E052601001
260.00
280.00
13
NBR
SUM-491
E052666501
266.00
304.80
22
FKM
SUM-589
E052696601
269.24
304.80
21
FKM
SUM-448
E052701001
270.00
305.00
26
NBR
SUM-727
E052730904
273.06
304.80
26
NBR
SUM-904
E052751003
275.00
305.00
20.75
NBR
SUM-821
E052800901
280.00
300.00
15.00
NBR
SUM-516
E052800902
280.00
305.00
13.50
NBR
SUM-140
E052801006
280.00
305.00
15.00
NBR
SUM-860
E052801004
280.00
310.00
25
NBR
SUM-685
E052941001
294.00
350.00
30
NBR
SUM-566
E052961001
296.00
320.00
15
NBR
SUM-618
E053001001
300.00
325.00
12.50
NBR
SUM-699
E053001002
300.00
330.00
15.00
NBR
SUM-907
E053156601
315.00
338.00
13
FKM
SUM-676
E053156602
315.00
340.00
12.50
NBR
SUM-910
E053151002
315.00
340.00
13.00
NBR
SUM-368
E053206601
320.00
350.00
15
FKM
SUM-632
E053201007
320.00
360.40
21
NBR
SUM-590
E053281003
328.00
368.00
22.50
NBR
SUM-591
E053300701
330.00
360.00
13
NBR
SUM-667
E053301001
330.00
371.00
12.00
NBR
SUM-884
E053338301
333.37
352.42
12.70
NBR/FABRIC
SUM-617
E053368301
336.00
355.00
16
NBR/FABRIC
SUM-610
E053361001
336.00
356.00
16
NBR
SUM-729
E053401001
340.00
380.00
21.00
NBR
SUM-573
E053456601
345.00
365.00
10.00
FKM
SUM-115
E053501003
350.00
380.00
11.50
NBR
SUM-696
E053551004
355.00
385.00
20
NBR
SUM-583
E053601004
360.00
380.00
12
NBR
SUM-682
E053600601
360.00
400.00
22.00
NBR/FABRIC
SUM-800
E053605901
360.00
410.00
30.00
PU
PUM-168
E053620801
362.18
387.30
17.00
NBR
SUM-782
E053641001
364.70
405.20
20
NBR
SUVG-305
E053851001
385.00
405.00
15
NBR
SUVG-541
E053950901
395.00
425.00
15
NBR
SUVG-572
E054006601
400.00
430.00
20.00
FKM
SUVG-110
E054001009
400.00
430.00
26.00
NBR
SUVG-700
E056301005
400.00
440.00
20
NBR
SUVG-531
E054001008
400.00
450.00
27
NBR
SUVG-571
E054151002
415.00
450.00
19.50
NBR
SUVG-147
E054151001
415.00
455.00
19.00
NBR
SUVG-719
E054156601
415.00
455.00
21
FKM
SUVG-451
E05429A601
429.26
457.20
21.50
NBR/FABRIC
SUVG-797
E054311001
431.80
457.20
21.00
NBR
SUVG-799
E054451001
445.00
475.00
21.40
NBR
SUVG-654
E054501006
450.00
480.00
19
NBR
SUVG-591
E05450D601
450.00
480.00
20.00
HNBR
SUVG-736
E054550801
455.00
690.00
26.00
NBR
SUVG-788
E054571001
457.20
508.00
35
NBR
SUVG-390
E054606601
460.00
500.00
20
FKM
SUVG-452
E054600601
460.00
500.00
20.00
NBR/FABRIC
SUVG-684
E054SS801
465.50
509.50
16
NBR
SUVG-693
E054751001
475.00
525.00
25.00
NBR
SUVG-749
E054768301
476.00
508.50
16.50
NBR/FABRIC
SUVG-151
E054801002
480.00
508.00
18.00
NBR
SUVG-143
E054801003
480.00
508.00
20.00
NBR
SUVG-145
E054901002
490.00
520.00
19.00
NBR
SUVG-778
E055001002
500.00
520.00
10
NBR
SUVG-242
E055001007
500.00
520.00
11.00
NBR
SUVG-318
E055100901
510.00
550.00
20
NBR
SUVG-336
E055101001
510.00
550.00
20
NBR
SUVG-441
E05510M101
510.00
550.00
20
HNBR
SUVG-522
E055200601
520.00
560.00
20.00
NBR/FABRIC
SUVG-682
E055301001
530.00
570.00
18
NBR
SUVG-564
E055306601
530.00
570.00
20
FKM
SUVG-433
E055361001
536.00
560.00
18.00
NBR
SUVG-696
E055408401
540.00
580.00
21
NBR/FABRIC
SUVG-717
E05550901
550.00
572.50
12.00
NBR
SUVG-177
E055601005
560.00
590.00
16.00
NBR
SUVG-743
E055601004
560.00
600.00
25
NBR
SUVG-612
E055706601
570.00
610.00
20
FKM
SUVG-543
E055750902
575.00
600.00
13.50
NBR
SUVG-172
E055750901
575.00
600.00
13.50
NBR
SUVG-741
E055751001
575.00
625.00
25
NBR
SUVG-253
E055761001
576.00
600.00
16.5
NBR
SUVG-385
E055761002
576.00
600.00
20
NBR
SUVG-557
E055802201
580.00
620.00
25
NEOPRENE
SUVG-443
E055828301
582.00
613.00
18.70
NBR/FABRIC
SUVG-554
E055840601
584.00
609.60
19
NBR/FABRIC
SUVG-670
E055966601
596.00
630.00
18.00
FKM
SUVG-703
E056001002
600.00
630.00
15
NBR
SUVG-560
E05614D601
614.00
630.00
10.00
HNBR
SUVG-510
E056256601
625.00
650.00
13
FKM
SUVG-598
E056456601
645.00
670.00
13
FKM
SUVG-597
E056480901
648.00
670.00
12.00
NBR
SUVG-174
E056701001
670.00
700.00
25
NBR
SUVG-310
E056828301
682.53
711.20
20.50
NBR/FABRIC
SUVG-553
E057000601
700.00
740.00
20.00
NBR/FABRIC
SUVG-683
E05710A601
710.00
750.00
25
NBR/FABRIC
SUVG-618
E057191001
719.00
750.00
20
NBR
SUVG-314
E057201002
720.00
750.00
25
NBR
SUVG-311
E057201003
720.00
752.00
25
NBR
SUVG-384
E057211001
721.00
762.00
21.50
NBR
SUVG-400
E057266601
726.00
750.00
13
FKM
SUVG-596
E057328301
732.45
762.00
20
NBR/FABRIC
SUVG-555
E057608401
760.00
790.00
21
NBR/FABRIC
SUVG-658
E057701005
770.00
810.00
20
NBR
SUVG-530
E05787A601
787.40
812.80
22.00
NBR/FABRIC
SUVG-798
E058258401
825.00
850.00
25
NBR/FABRIC
SUVG-659
E058361001
836.50
864.00
21
NBR
SUVG-712
E058401001
840.00
870.00
20
NBR
SUVG-307
E059511001
951.50
1001.50
41
NBR
SUVG-342
E059991045
1005.00
1033.00
20
NBR
SUVG-614
E059991053
1400.00
1430.00
20
NBR
SUVG-633
For customised items please
Click here
Login
