W04: Pneumatic Wiper Seals Manufacturers, Suppliers, Exporters

Max Spare : W04

Profile : Wiper Seals

Details :

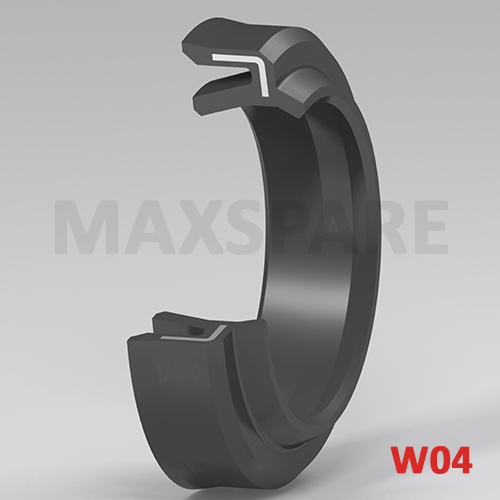

W04 pneumatic rod/wiper seal is the combination wiper seal with metal reinforcement and special pneumatic sealing edge. It performs both sealing and wiping function. It has improved seal-lip design for better sealing and scraping performance. Very good protection against dirt ingress.

MATERIAL

Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C (NBR)
	:	-40° C to + 220° C (FKM)
Pressure	:	16 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Dry and oil-free air.

APPLICATION

Nitrile Rubber 80/85 Shore A.FKM Rubber 80/85 Shore A.

FEATURES

Performs both sealing & wiping.
The component can be replaced from the outside (without dismantling the equipment).
Long service life.
Widest range of sizes available.
Smooth running due to optimum lubricant-retaining sealing lip geometry.
Installation in open housings.
Easy installation.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
W040081001	8.00	14.00	3.80/5.50	NBR	WPS-7468
W040086701	8.00	16.00	5.2/8.20	FKM	WPS-6719
W040086702	8.00	16.00	5.40/6.90	FKM	WPS-164
W040100902	10.00	16.00	4/6.00	NBR	WPS-4285
W040100901	10.00	18.00	6.2/8.2	NBR	WPS-4251
W040100903	10.31	17.46	4.90/6.70	NBR	WPS-5127
W040121004	12.00	20.00	5.00/7.00	NBR	WPS-3293
W040121101	12.00	20.00	6/8.00	NBR	WPS-2341
W040121103	12.00	20.00	6/8.50	NBR	WPS-2326
W040121005	12.00	20.00	6/8.50	NBR	WPS-3975
W040121002	12.00	20.00	7/9.5	NBR	WPS-2357
W040121007	12.00	22.00	4.50/7.50	NBR	WPS-7053
W040121102	12.00	22.00	5.00/7.00	NBR	WPS-395
W040121001	12.00	22.00	6.50/8.50	NBR	WPS-5923
W040121003	12.00	22.00	7/9.5	NBR	WPS-2358
W040121006	12.00	22.00	9/13	NBR	WPS-4708
W040121105	12.00	24.00	7.00/10.00	NBR	WPS-8174
W040141101	14.00	20.00	4.50/6	NBR	WPS-4626
W040141001	14.00	22.00	5/7.00	NBR	WPS-2359
W040140801	14.00	24.00	7/9.5	NBR	WPS-2360
W040141003	14.00	24.00	8/13	NBR	WPS-4541
W040151101	15.00	25.00	5.00/7.00	NBR	WPS-7635
W040166602	16.00	22.00	3.00/4.50	FKM	WPS-200
W040161104	16.00	26.00	6.00/8.50	NBR	WPS-2336
W04016L501	16.00	26.00	6/8.50	PU	WPH-1890
W040166601	16.00	26.00	7/8.50	FKM	WPS-5065
W040160803	16.00	26.00	7/9	NBR	WPS-5196
W040160801	16.00	26.00	7/9.5	NBR	WPS-2361
W040161002	16.00	26.00	8/13	NBR	WPS-5398
W040166502	16.00	30.00	7.3/10	FKM	WPS-7025
W040181104	18.00	26.00	6.00/8.50	NBR	WPS-1662
W040181002	18.00	26.00	7/9.5	NBR	WPS-2362
W040181003	18.00	28.00	7/9.5	NBR	WPS-2363
W040201005	20.00	28.00	5/7.50	NBR	WPS-4279
W040201101	20.00	28.00	6/8	NBR	WPS-2025
W040201105	20.00	28.00	6/8.00	NBR	WPS-6659
W040201106	20.00	30.00	7.00/9.50	NBR	WPS-1670
W040206707	20.00	30.00	7.00/9.50	FKM	WPS-6661
W040201006	20.00	30.00	7.30/9.50	NBR	WPS-5932
W040201103	20.00	30.00	7.50/10.50	NBR	WPS-6230
W040201102	20.00	30.00	7.8/9.80	NBR	WPS-5849
W040201002	20.00	30.00	7/9.5	NBR	WPS-2356
W040201003	20.00	30.00	7/9.5	NBR	WPS-988
W040206705	20.00	30.00	7/9.50	FKM	WPS-3927
W040200801	20.00	30.00	7/9.50	NBR	WPS-5657
W040201107	20.00	32.00	7.00/9.50	NBR	WPS-2046
W040221002	22.00	28.00	5/8.00	NBR	WPS-6232
W040221001	22.00	32.00	7/9.5	NBR	WPS-2355
W040221003	22.00	32.25	6.8/9.00	NBR	WPS-6676
W04025L501	25.00	34.14	4.89/7.00	PU	WPH-1417
W040256704	25.00	35.00	5.00/8.00	FKM	WPS-2095
W040251006	25.00	35.00	6.50/8.00	NBR	WPS-6576
W040251007	25.00	35.00	6.50/8.00	NBR	WPS-7269
W040250901	25.00	35.00	7/9	NBR	WPS-4410
W040251103	25.00	35.00	7/9.00	NBR	WPS-6548
W040251004	25.00	35.00	7/9.5	NBR	WPS-2354
W040251107	25.00	35.00	7/9.50	NBR	WPS-1669
W040250801	25.00	35.00	7/9.50	NBR	WPS-5656
W040251003	25.35	32.00	4/6	NBR	WPS-2568
W040251106	25.40	31.50	4.00/5.50	NBR	WPS-1211
W040271002	27.00	38.00	6.4/8.70	NBR	WPS-4932
W040281002	28.00	36.00	4/5	NBR	WPS-5513
W040286601	28.00	36.00	5.00/7.00	FKM	WPS-2011
W040281005	28.00	36.50	5.70/7.60	NBR	WPS-7428
W040306501	30.00	40.00	7.00/9.00	FKM	WPS-1802
W04030L501	30.00	40.00	7.00/9.50	PU	WPH-1290
W040301102	30.00	40.00	7.00/9.50	NBR	WPS-1665
W040306701	30.00	40.00	7/9.50	FKM	WPS-4085
W040301101	30.00	42.00	7/9	NBR	WPS-5902
W040311101	31.75	41.27	7/9.00	NBR	WPS-349
W040316701	31.75	41.27	8/10.00	FKM	WPS-2319
W040321102	32.00	42.00	6.00/9.00	NBR	WPS-533
W040321001	32.00	42.00	7/9.5	NBR	WPS-2352
W040320801	32.00	42.00	7/9.50	NBR	WPS-5655
W040326501	32.00	42.00	7/9.50	FKM	WPS-6081
W040341101	34.00	46.00	8.00/10.00	NBR	WPS-8248
W04035V201	35.00	45.00	6.00/9.00	NBR	WPS-5438
W040351004	35.00	45.00	7.00/9.50	NBR	WPS-7233
W040351003	35.00	46.00	6.3/8.6	NBR	WPS-4724
W040351003	35.00	46.00	6.3/8.60	NBR	WPS-4800
W040351103	35.00	46.00	8.00/10.00	NBR	WPS-1339
W040351102	35.00	47.00	7.00/11.00	NBR	WPS-7562
W040361101	36.00	46.00	7.00/9.00	NBR	WPS-2382
W040381101	38.10	50.00	7/10	NBR	WPS-5969
W040406703	40.00	50.00	5.00/9.00	FKM	WPS-450
W040401005	40.00	50.00	6.50/8.00	NBR	WPS-6415
W040406604	40.00	50.00	6/8.50	FKM	WPS-5066
W040406702	40.00	50.00	6/9	FKM	WPS-5724
W04040L501	40.00	50.00	7.00/10.00	PU	WPH-2664
W040401103	40.00	50.00	7.00/10.00	NBR	WPS-6994
W040401106	40.00	50.00	7.00/9.50	NBR	WPS-1666
W040401003	40.00	50.00	7/9	NBR	WPS-5212
W040406601	40.00	50.00	7/9	FKM	WPS-5213
W040401002	40.00	50.00	7/9.5	NBR	WPS-2351
W040406402	40.00	50.00	7/9.50	FKM	WPS-2289
W040406602	40.00	50.00	7/9.50	FKM	WPS-3971
W040401102	40.00	51.00	6.50/8	NBR	WPS-5918
W040441101	44.45	53.97	5/6.8	NBR	WPS-4513
W040450901	45.00	55.00	7/9	NBR	WPS-3815
W040451101	45.00	57.00	6.00/9.00	NBR	WPS-8349
W040481001	48.00	62.00	9/11.00	NBR	WPS-3685
W040501101	50.00	58.00	6.00/8.00	NBR	WPS-6549
W040501002	50.00	60.00	7/9.50	NBR	WPS-3278
W040501102	50.80	58.00	6.00/8.00	NBR	WPS-6709
W040576601	57.00	67.00	7/9.50	FKM	WPS-4869
W040611101	61.91	76.20	10.00/12.00	NBR	WPS-4116
W040636601	63.00	75.00	8/11	FKM	WPS-4763
W04076L501	76.00	86.50	6.3/9.3	PU	WPH-758
W040761001	76.00	86.50	6.3/9.3	NBR	WPS-2767
W040908702	90.00	108.00	8	PU	WPH-1473
W04095L401	95.25	107.95	6/8	PU	WPH-1652
W042201001	220.00	245.00	12.00/16.00	FKM	WPS-2165
W042741101	274.50	310.00	6/9	NBR	WPS-4651
W045601001	560.00	580.00	16/22	NBR	WPS-6361
