Max Spare : W08

Profile : Wiper Seals

Details :

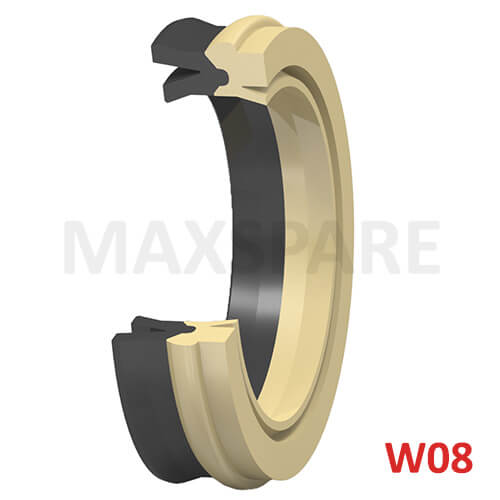

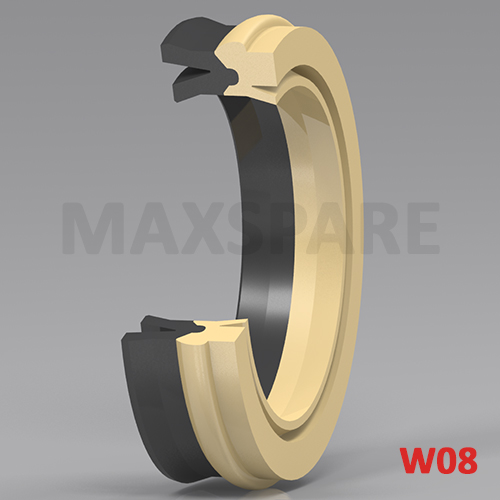

W08 is a pneumatic rod/wiper seal performs both sealing and wiping function. The split design of the sealing set allows optimal adaptation of the materials to the requirements of the individual component. It has improved seal-lip design for better sealing and scraping performance. Very good protection against dirt ingress. Special lip design for pneumatic application to maintain lubricating film and minimize friction.

MATERIAL

Pneumatic Cylinders

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	16 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Compressed air.

APPLICATION

Sealing Part : Nitrile Rubber 80/85 Shore A.: FKM 80/85 Shore A.Scraping part : Polyurethane 92 Shore A PTFE.

FEATURES

Performs both sealing and wiping function.
Smooth running due to optimum lubricant-retaining sealing lip geometry.
Excellent media resistance.
Long service life.
Product profile ensures dirt deposits at the face of the cylinder.
Good wear resistance.
Installation in open housings.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
W080121001	12.00	19.00	10	NBR+PU	CS-2187
W080121004	12.00	20.00	11	NBR	CS-2201
W080121005	12.00	22.00	10.40	NBR	CS-3299
W080126601	12.00	22.00	11.50	FKM+PU	CS-1805
W080121003	12.00	22.00	11.50	NBR	CS-2161
W080131001	13.00	26.00	11	NBR+PU	CS-2002
W080166602	16.00	23.00	7	FKM	SUA-1587
W080166601	16.00	26.00	11	FKM	CS-1329
W080166604	16.00	26.00	11.00	FKM+PU	CS-3634
W080161002	16.00	26.00	11.20	NBR	CS-2200
W080161003	16.00	30.00	11.40	NBR+PU	CS-2860
W080186601	18.00	28.00	11	FKM	SUB-3586
W080188701	18.00	28.00	5.70	PU	WPH-2380
W080201006	20.00	29.00	7.50	NBR	SUB-4764
W080201003	20.00	30.00	10.70	NBR	CS-1205
W080206601	20.00	30.00	10.70	FKM+PU	CS-1690
W080201005	20.00	30.00	11.20	NBR	CS-2199
W080206702	20.00	30.00	11.20	FKM+PU	CS-2727
W080206602	20.00	30.00	11.20	FKM+PU	CS-3632
W080206701	20.00	30.00	7.30	FKM	SUB-2917
W080256604	25.00	35.00	11	FKM	SUB-3731
W080251002	25.00	35.00	11.30	NBR+PU	CS-1137
W080256601	25.00	35.00	11.30	FKM	CS-1330
W080251007	25.00	35.00	11.50	NBR	CS-1948
W080251009	25.00	35.00	11.50	NBR	CS-2198
W080251010	25.00	35.00	12.50	NBR+PU	CS-3201
W080252202	25.40	34.00	11	NEOPRENE	CS-2941
W080286601	28.00	38.00	11.50	FKM	CS-1718
W080301001	30.00	40.00	11.5	NBR	SUB-1083
W080326602	32.00	42.00	10.70	FKM	CS-3324
W080326601	32.00	42.00	11.50	FKM	CS-1334
W080321004	32.00	42.00	11.50	NBR	CS-2160
W080328801	32.00	42.00	6.50	PU	PUB-1738
W08040O501	40.00	50.00	11.00	NBR	CS-3335
W080406608	40.00	50.00	11.00	FKM+PU	CS-3633
W080406604	40.00	50.00	11.5	NBR+PU	CS-1082
W080406901	40.00	50.00	11.5	NBR	SUB-1082
W080406605	40.00	50.00	11.50	FKM	SUB-3578
W080401102	40.00	50.00	7.70/12.50	NBR	WPS-1312
W080456601	45.00	55.00	12	FKM	SUC-1445
W080456602	45.00	55.00	12.50	FKM	CS-1083
W080501001	50.00	60.00	12	NBR	CS-1410
W080506601	50.00	60.00	12	FKM+PU	CS-2542
W080631001	63.00	75.00	13	NBR+PU	CS-1935
W080636601	63.00	75.00	13	FKM	SUC-1295
