Max Spare : R60

Profile : Cassette Seal

Details :

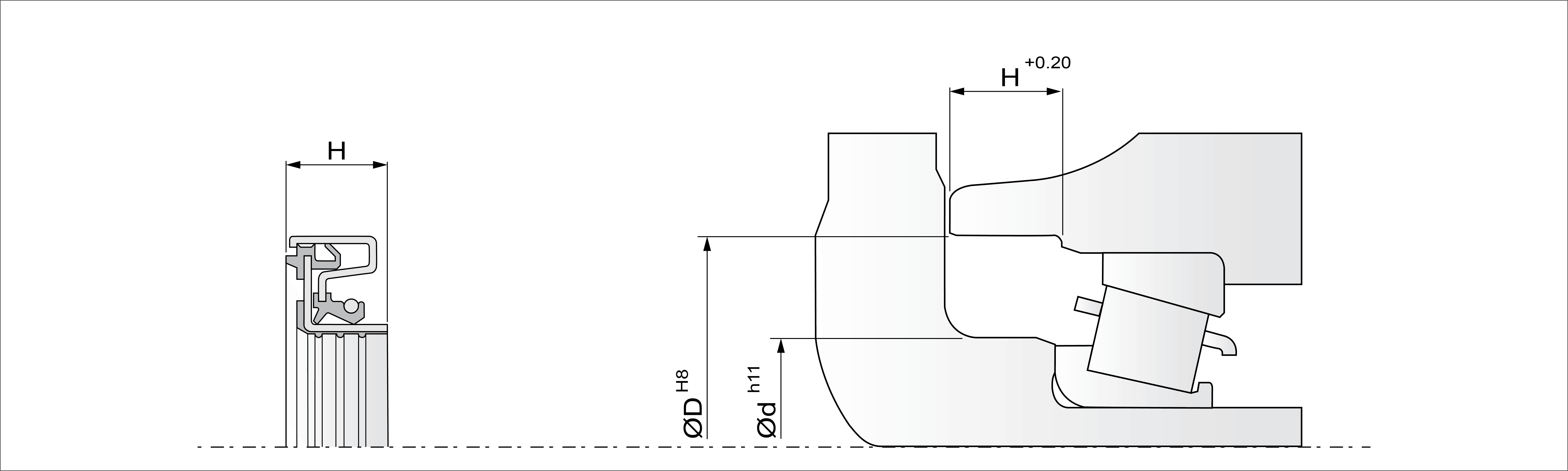

R60 cassette seals are highly rigid and are used for robust sealing applications. These seals are fully encapsulated and mail sealing lip is spring energized. The inner portion of the seal is grease filled labyrinth with radial and axial sealing and dirt lips. R60 seals are used for very heavy-duty applications and dirt environments. The grease filling reduces wear and increases the service life.

MATERIAL

Nitrile Rubber FKM

OPERATING CONDITIONS

Temperature Range	:	NBR : -30° C to + 100° C
		FKM : -40° C to + 220° C
Pressure	:	0.5 Bar
Speed	:	7.0 m/s (FKM), 5.0 m/s (NBR)

SURFACE ROUGHNESS

The recommendations below must be considered for the quality of the shaft surface area.
Static	:	0.8 to 3.2 mm
Dynamics	:	10.0 to 16.0 mm

COMPATIBILITY

Mineral oils, bio oils, water soluble & water glycol fluids.

APPLICATION

Commercial vehicles. Agricultural machinery. Material handling equipments. Construction equipment. Tractors. Forestry equipment.

FEATURES

Heavy duty seal. Moderate friction coefficient. Moderate protection against dirt. Reduced need for maintenance. Easy to installation.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R600250802	25.00	52.00	11.00/12.00	NBR	SC-2529
R600250801	25.00	52.00	12.00/13.50	NBR	SC-6292
R600300801	30.00	55.00	12	NBR	SC-5646
R600310801	31.75	66.67	12.70	NBR	SC-4929
R600350802	35.00	50.00	7.00	NBR	SB-1490
R600350803	35.00	55.00	10.00/12.75	NBR	SC-8210
R600350801	35.00	60.00	14.50	NBR	SC-6469
R600406401	40.00	62.00	15.00	FKM	SC-7113
R600400803	40.00	65.00	12.50/16.20	NBR	SC-8269
R600400801	40.00	65.00	15	NBR	SC-6542
R600400802	40.00	65.00	15.00	NBR	SC-6887
R600440802	44.45	68.83	11.09	NBR	SC-6781
R600440801	44.45	76.20	12.70	NBR	SD-3337
R600450801	45.00	70.00	14.50/17	NBR	SC-2193
R600450802	45.00	70.00	14/17	NBR	SC-4897
R600450803	45.00	75.00	11.50/16.50	NBR	SC-5691
R600456401	45.20	55.30	4.10	FKM	SC-7520
R600251002	50.00	62.00	7	NBR	SC-4573
R600500802	50.00	72.00	12.00/13.00	NBR	SC-6312
R600500806	50.00	72.00	12.00/13.00	NBR	SC-8213
R600500801	50.00	72.00	7/12	NBR	SC-4775
R600500803	50.00	75.00	12.00/14.00	NBR	SC-6412
R600500804	50.00	75.00	14.007/17.00	NBR	SC-6633
R600506401	50.00	80.00	12	FKM	SD-4372
R600500805	50.80	85.72	13.46	NBR	SD-4833
R600571001	52.37	76.20	9.52	NBR	SD-4867
R600550801	55.00	80.00	14	NBR	SD-1474
R600560802	56.00	80.00	13.00/14.50	NBR	SD-4269
R600570802	57.15	82.55	11.09	NBR	SD-4800
R600570801	57.15	85.64	12.06	NBR	SD-4792
R600600801	60.00	85.00	14.5/16.00	NBR	SD-5661
R600606402	60.00	90.00	14/16.00	FKM	SD-4956
R600610801	61.90	88.90	11.09	NBR	SD-4801
R600630804	63.50	88.90	12.50/15.00	NBR	SD-5733
R600630801	63.50	88.90	14.63	NBR	SD-4661
R600630803	63.50	88.90	14.85	NBR	SD-5411
R600630802	63.50	95.22	13.46	NBR	SD-4834
R600650806	65.00	85.00	10.00	NBR	SD-4806
R600650802	65.00	90.00	14.5	NBR	SD-1475
R600650804	65.00	90.00	14.50	NBR	SD-4158
R600650805	65.00	92.00	10.00/15.00	NBR	SD-4299
R600650809	65.00	92.00	10.00/15.00	NBR	SD-561
R600650803	65.00	100.00	13	NBR	SD-2507
R600650808	65.00	105.00	17.50/19.00	NBR	SE-2814
R600660802	66.67	88.90	14.85	NBR	SD-5412
R600660801	66.67	88.90	14.98	NBR	SD-4665
R600690802	69.85	88.90	13.15	NBR	SD-4440
R600690801	69.85	101.60	13.15	NBR	SE-2631
R600706404	70.00	90.00	12.00	FKM	SD-4784
R600706401	70.00	90.00	14.50	FKM	SD-1725
R600700805	70.00	95.00	10.50	NBR	SD-4723
R600700804	70.00	95.00	14.00/14.50	NBR	SD-4483
R600700802	70.00	95.00	14.50	NBR	SD-3293
R600700803	70.00	95.00	15.00/17.00	NBR	SD-4245
R600750804	75.00	95.00	12.00/14.00	NBR	SD-4674
R600750802	75.00	100.00	13/14.5	NBR	SD-2476
R600750805	75.00	105.00	13/14.50	NBR	SE-2777
R600761001	76.20	101.67	9.52	NBR	SE-2747
R600800801	80.00	100.00	10/12	NBR	SD-2781
R600800804	80.00	100.00	10/13.00	NBR	SD-4367
R600800802	80.00	100.00	15/16	NBR	SD-2969
R600800803	80.00	100.00	15/16	NBR	SD-3811
R600806401	80.00	105.00	12/14	FKM	SE-2338
R600800805	80.00	110.00	12/14.00	NBR	SE-2465
R600800806	80.00	150.00	12/22.00	NBR	SF-2342
R600880801	88.00	116.00	15.00	NBR	SE-313
R600956401	95.00	130.00	14.50/16	FKM	SF-2329
R60095D501	95.00	145.00	15.00/17.00	HNBR	SF-2179
R601000804	100.00	128.00	15.00	NBR	SF-147
R601000805	100.00	128.00	15.00	NBR	SF-2842
R601000801	100.00	130.00	13.00	NBR	SF-2003
R601000802	100.00	130.00	17.00	NBR	SF-2339
R601000803	100.00	190.00	12/22.00	NBR	SH-1414
R601010801	101.60	134.60	15.5	NBR	SF-1438
R601050801	105.00	130.00	12.00	NBR	SF-2403
R601100803	110.00	140.00	14.50/16.00	NBR	SF-2505
R601100802	110.00	170.00	12/22	NBR	SG-1492
R601156401	115.00	135.00	14.00	FKM	SF-2369
R601170801	117.47	152.40	16.00/18.00	NBR	SG-121
R601170901	117.47	152.40	25.40	NBR	SG-1678
R601180801	118.00	148.00	20.00	NBR	SF-2226
R601200805	120.00	137.00	9.00	NBR	SF-2464
R601200804	120.00	150.00	14.30/20.00	NBR	SF-2112
R601200803	120.00	150.00	14/15.50	NBR	SF-1494
R601210801	121.80	150.00	12/13	NBR	SF-1804
R601256401	125.00	150.00	12/14	FKM	SF-2052
R60125D601	125.00	160.00	15.00	HNBR	SG-1697
R601270804	127.00	160.00	14.50/16.50	NBR	SG-1843
R601270801	127.00	160.00	15.50/17.50	NBR	SG-1167
R601306401	130.00	150.00	10/13	NBR	SF-2190
R601300802	130.00	160.00	14.50/16.50	NBR	SG-238
R601300801	130.00	215.00	16.5/18	NBR	SJ-956
R601330801	133.35	172.00	14.28	NBR	SG-1687
R601350802	135.00	160.00	15/16	NBR	SG-1127
R601360801	136.80	165.00	13	NBR	SG-912
R601400802	140.00	170.00	14.50/16.00	NBR	SG-1872
R601400801	140.00	170.00	16	NBR	SG-676
R601420801	142.00	170.00	15.00	NBR	SG-131
R601450803	145.00	175.00	14.50/16.00	NBR	SG-1986
R601506402	150.00	180.00	13/14.50	FKM	SH-1314
R601506401	150.00	180.00	14.5/18	FKM	SH-776
R601500802	150.00	180.00	14.50/16.00	NBR	SH-1574
R601500803	150.00	180.00	14.50/16.00	NBR	SH-210
R601550802	155.00	190.00	17.50/19.00	NBR	SH-1283
R601650801	165.00	195.00	15	NBR	SH-1220
R601670802	167.80	198.00	13.00/14.80	NBR	SH-1466
R601670801	167.80	198.00	13/15.50	NBR	SH-1233
R601856401	185.50	215.00	20.00	FKM	SJ-1096
R601900803	190.00	215.00	15.5/17.00	NBR	SJ-211
R601960801	196.50	220.00	13/19	NBR	SJ-599
R60200	200.00	230.00	15	FKM	SK-311
R602100802	210.00	250.00	24.50	NBR	SK-729
R602280801	228.60	254.00	15.87/16.97	NBR	SM-602
R602406401	240.00	270.00	13.00/15.00	FKM	SM-808
R602790801	279.40	304.80	15.87/16.97	NBR	SR-1063
R603000801	300.00	360.00	18.00	NBR	SR-1395
