Max Spare : RE3

Profile : Cassette Seal

Details :

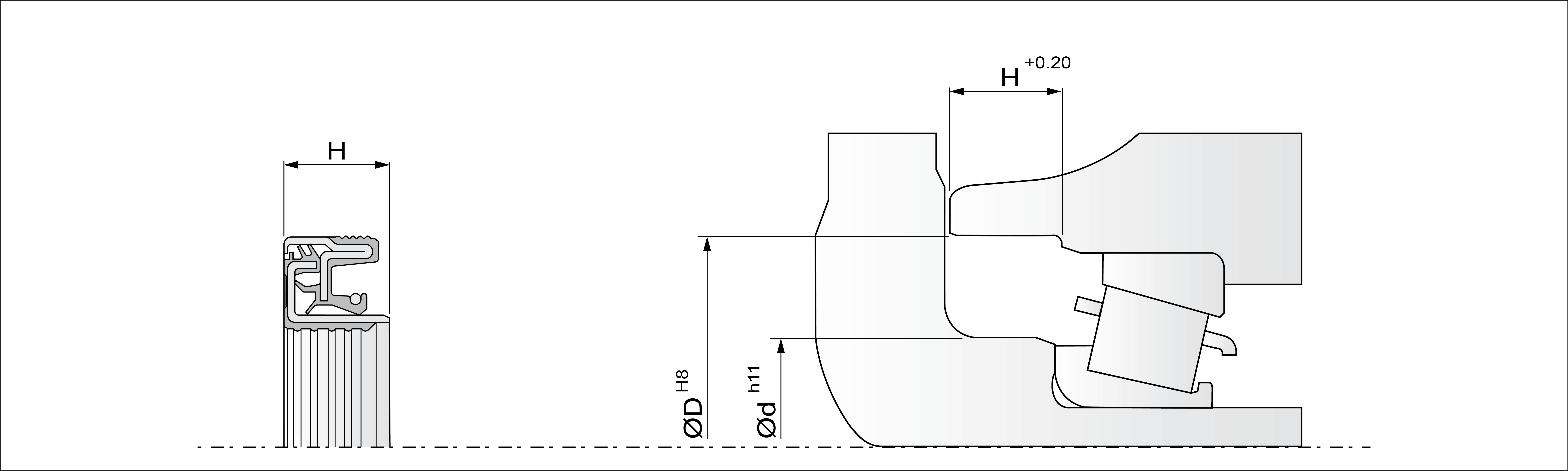

RE3 cassette seals are highly rigid and are used for robust sealing applications. These seals are fully encapsulated and mail sealing lip is spring energized. The inner portion of the seal is grease filled labyrinth with radial and axial sealing and dirt lips. The grease filling reduces wear and increases the service life.

MATERIAL

NBR / FKM

OPERATING CONDITIONS

Temperature Range	:	NBR : -30° C to + 100° C
		FKM : -40° C to + 220° C
Pressure	:	0.5 Bar
Speed	:	7.0 m/s (FKM)
		5.0 m/s (NBR)

SURFACE ROUGHNESS

The recommendations below must be considered for the quality of the shaft surface area.
Static	:	0.8 to 3.2 mm
Dynamics	:	10.0 to 16.0 mm

COMPATIBILITY

Mineral oils, bio oils, water soluble & water glycol fluids.

APPLICATION

Commercial vehicles.
Agricultural machinery.
Material handling equipments.
Construction equipment.
Tractors.
Forestry equipment.

FEATURES

Heavy duty seal.
Moderate friction coefficient.
Moderate protection against dirt.
Reduced need for maintenance.
Easy to installation.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
RE30470801	47.00	72.00	10.50/12.00	NBR	SC-1475
RE30650801	65.00	90.00	13.00/14.50	NBR	SD-4940
RE31406401	140.00	170.00	13.00/14.50	FKM	SG-235
RE3165D501	165.10	196.85	17.50/20.00	HNBR	SH-327
