Profile : Fabric Seals


Spareage : R32

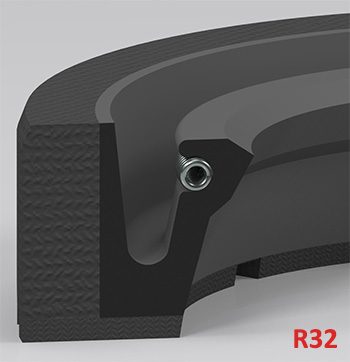

R32 Assembly

Details :
The R32 seal is similar to the R31 type seal with additional slots provided on the back face on pheriphery of the seal to enable the lubricant to enter through these slots for lubricating the sealing lips, thus preventing dry running or damaged to the sealing lip.
MATERIAL
NBR/Fabric : 70/75 Shore A
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 0.5 Bar
Speed : 10.0 m/s
SURFACE ROUGHNESS
Surface roughness in the gland are specified in ISO 6194/1.
COMPATIBILITY
Mineral oils, Grease
APPLICATION
  • Mills
  • Ship building
  • Steel hydraulics engineering
  • Wind power plants.
  • Any size upto 500mm available on request.
FEATURES
  • Perticularly robust static part
  • Highly wear resistant
  • Lasting radial contact pressure
  • With design measures, e.g., metal support for the sealing lip, higher pressures are possible
  • Over pressure requires the usage of endless seals
  • Back-up ring drawings and installation instructions for open seals are available.
  • Any size upto 500mm available on request.

Manufactured by: Max Spare Limited
Product ID: 83i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
R321109001110.00130.009.50NBR/FABRIC     SF-267
R321408401140.00160.0010.00NBR/FABRIC     SG-200
R321508402150.00180.0018.00NBR/FABRIC     SH-1572
R321508401150.00190.0015.00NBR/FABRIC     SH-1571
R321908401190.00220.0015NBR/FABRIC     SJ-640
R322008403200.00230.0014.00NBR/FABRIC     SK-1053
R322008401200.00230.0015NBR/FABRIC     SK-623
R322008402200.00238.0020NBR/FABRIC     SK-655
R322108401210.00250.0020.00NBR/FABRIC     SK-1044
R322608402260.00282.0010.00NBR/FABRIC     SN-121
R322808401280.00320.0016.00NBR/FABRIC     SR-477
R323208401320.00364.0020.00NBR/FABRIC     SR-1593
R323238401323.00345.0010.00NBR/FABRIC     SR-184
R323358401335.00375.0015.00NBR/FABRIC     SR-1509
R323408601340.00380.0020FKM/FABRIC     SS-1907
R323458401345.94396.7420.62NBR/FABRIC     SS-254
R323558601355.00395.0019.50FKM/FABRIC     SS-2029
R324008401400.00440.0014NBR/FABRIC     SS-1775
R325358402535.00585.0030NBR/FABRIC     SS-244
R325658401545.00585.0015NBR/FABRIC     SS-1692
R325608401560.00600.0020NBR/FABRIC     SS-2020
R325808401580.00634.0026NBR/FABRIC     SS-2019
R326768401676.00740.0025NBR     SS-231
R327358401735.00799.0025NBR/FABRIC     SS-484
R327808401780.00830.0020.00NBR/FABRIC     SS-974
R327908401790.00850.0032.00NBR/FABRIC     SS-199
R328208401820.00884.0028NBR/FABRIC     SS-2441




For customised items please Click here
