Profile : Fabric Seals

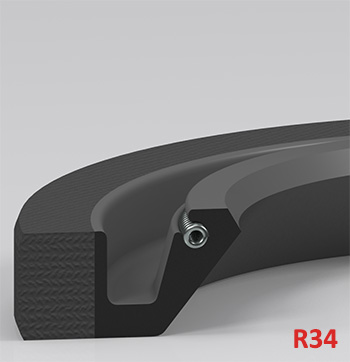

Spareage : R34

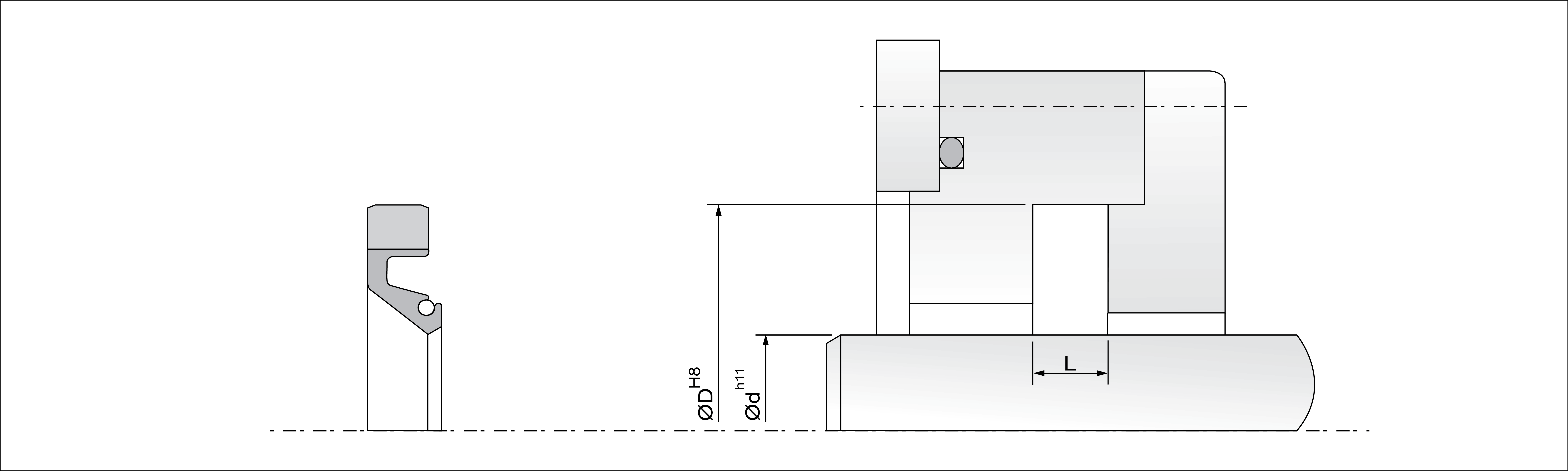

R34 Assembly

Details :
The Standard Fabric reinforced seals are widely used in heavy machinery and engineering industries such as Rolling Mills, Gear Boxes, etc. The material generally used is NBR (Nitrile) for the sealing lip which is bonded on the outer body made from a hard and rigid fabric reinforced with NBR.The extended sealing lip is also pre-loaded garter spring with 270° captured. This profile used for eccentricity of shaft to bore.
MATERIAL
NBR/Fabric : 70/75 Shore A
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 0.5 Bar
Speed : 10.0 m/s
SURFACE ROUGHNESS
Surface roughness in the gland are specified in ISO 6194/1.
COMPATIBILITY
Mineral oils, Grease
APPLICATION
  • Steel Mills
  • Ship Building Rotary Table
FEATURES
  • Perticularly robust static part
  • Highly wear resistant
  • Over pressure requires the usage of endless seals
  • Any size upto 500mm available on request.

Manufactured by: Max Spare Limited
Product ID: 85i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
R34045100145.1066.7011.00NBR/FABRIC     SC-2677
R341308401130.17168.3012.70NBR/FABRIC     SG-253
R34165F601165.10215.9012.70/25.40AFLAS     SJ-987
R341778401177.80234.9520.63NBR/FABRIC     SK-229
R341978602197.00237.5016FKM/FABRIC     SK-666
R341978601197.00238.0016FKM/FABRIC     SK-511
R342098401209.55254.0031.75NBR/FABRIC     SM-104
R342288401228.60304.8019.05/25.40NBR/FABRIC     SR-1355
R342541103254.00311.1526/38NBR/FABRIC     SR-1315
R342541101254.00336.5016/25NBR     SR-104
R342541102254.00336.5516/24NBR/FABRIC     SR-999
R342738401273.05346.0725.40/50.80NBR/FABRIC     SR-1536
R342798401279.40333.3719.05/43.18NBR/FABRIC     SR-1537
R343200801320.00355.0019.00NBR     SR-1384
R343200802320.00360.0020NBR     SR-1391
R343498401349.25444.5026.41/72.08NBR/FABRIC     SS-2340
R343668901366.70434.9719.05NBR/FABRIC     SS-410
R343708401370.00484.0032.5NBR/FABRIC     SS-441
R343818401381.00457.2025.40/50.80NBR/FABRIC     SS-2839
R344068404406.40520.7025.40NBR/FABRIC     SS-103
R344068402406.40525.0025.4NBR/FABRIC     SS-248
R344708401470.00535.0018.00/23.50NBR/FABRIC     SS-2806
R344958401495.30577.8525.40/39.37NBR/FABRIC     SS-2842
R346004801600.00640.0012/14.00HNBR     SS-891




For customised items please Click here
