Profile : Fabric Seals


Spareage : R47

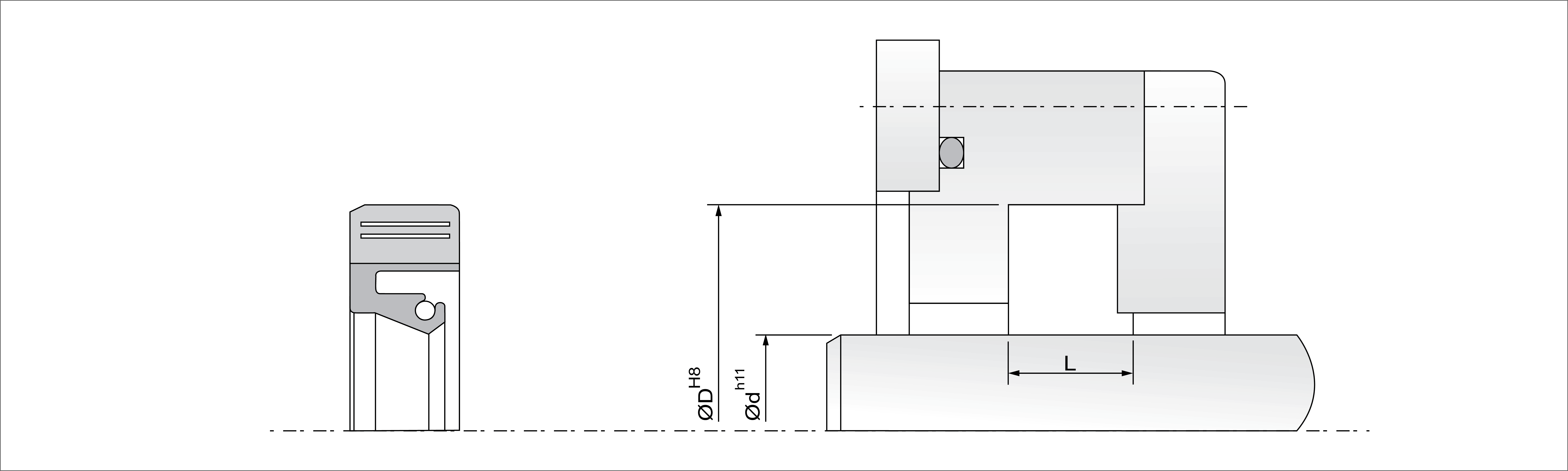

R47 Assembly

Details :
R47 Seal fabric reinforcement of other seal types, an endless, flexible steel band is vulcanized into the seal back. To adjust the sealing lip preload, a garter spring is inserted into the sealing lip. This seal also used for self retaining.
MATERIAL
NBR/Fabric : 70/75 Shore A
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 10.0 Bar
Speed : 5.0 m/s
SURFACE ROUGHNESS
Surface roughness in the gland are specified in ISO 6194/1.
COMPATIBILITY
Mineral oils, Grease
APPLICATION
  • Steel Mills
  • Ship Building
FEATURES
  • Perticularly robust static part
  • Highly wear resistant
  • Over pressure requires the usage of endless seals
  • Any size upto 500mm available on request.

Manufactured by: Max Spare Limited
Product ID: 98i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
R4711008010.00110.0012NBR     SE-557
R47060D50560.0085.0011HNBR/FABRIC     SD-4021
R47060860160.0085.0011FKM/FABRIC     SD-4162
R47070840170.0090.0010NBR/FABRIC     SD-4524
R47075F80175.0095.0010.00FKM     SD-4925
R47085D50185.00117.0012.50HNBR/FABRIC     SE-2276
R47090640190.00110.0013.00FKM     SE-2756
R47090640290.00115.0015.00FKM     SE-2955
R47095840195.00127.0012.50NBR/FABRIC     SF-134
R471008601100.00132.0012.50FKM/FABRIC     SF-1862
R471058401105.00145.0016.00NBR/FABRIC     SF-135
R471156401115.00140.0012.00FKM/FABRIC     SF-2397
R471158401115.00155.0016NBR/FABRIC     SG-1559
R471208401120.00150.0012NBR/FABRIC     SF-1917
R471208402120.00150.0012.00NBR/FABRIC     SF-2543
R471308401130.00160.0015.00NBR/FABRIC     SG-140
R471308601130.00170.0016FKM/FABRIC     SG-1386
R471358401135.00175.0016NBR/FABRIC     SG-1560
R471408601140.00180.0016FKM/FABRIC     SH-1249
R471608401160.00190.0015.00NBR/FABRIC     SH-1513
R471656401165.00197.0016.00FKM/FABRIC     SH-1440
R471808401180.00210.0015.00NBR/FABRIC     SJ-1059
R472008401200.00240.0016NBR/FABRIC     SK-843
R472098401209.55241.3019.05NBR/FABRIC     SK-798
R472106401210.00240.0015.00FKM/FABRIC     SK-966
R472208401220.00260.0016.00NBR/FABRIC     SM-849
R472358401235.00265.0015NBR/FABRIC     SM-643
R472408401240.00280.0016.00NBR/FABRIC     SN-125
R472508401250.00280.0015NBR/FABRIC     SN-722
R472548401254.00292.1015.87NBR/FABRIC     SN-813
R472808401280.00320.0020NBR/FABRIC     SR-1344
R473008401300.00344.0020.00NBR/FABRIC     SR-1550
R473108401310.00350.0020.00NBR/FABRIC     SR-1628
R473308401330.00374.0020NBR/FABRIC     SR-1280
R473408401340.00384.0020.00NBR/FABRIC     SS-2850
R473428401342.90381.0019.05NBR/FABRIC     SS-1017
R473608401360.00400.0017NBR/FABRIC     SS-2526
R473608402360.00400.0017NBR/FABRIC     SS-2527
R473708401370.00414.0020.00NBR/FABRIC     SS-643
R474060801406.40457.2020.65NBR/FABRIC     SS-1906
R474068401406.40457.2033.35NBR/FABRIC     SS-2145
R474318401431.80482.6020.65NBR/FABRIC     SS-1964
R474448402444.50482.6015.87NBR/FABRIC     SS-2050
R474570801457.20508.0022.22NBR/FABRIC     SS-1905
R474660801466.72504.8217.47NBR/FABRIC     SS-2362
R475108401510.00560.0022NBR/FABRIC     SS-1091
R475308404530.00570.0020NBR/FABRIC     SS-2626
R475408401540.00580.0020NBR/FABRIC     SS-2457
R47540D502540.00590.0025HNBR/FABRIC     SS-1368
R475588401558.80609.6032.5NBR/FABRIC     SS-898
R475588402558.80609.6034.92NBR/FABRIC     SS-2146
R475848401584.20635.0032.5NBR/FABRIC     SS-899
R47609C101609.60660.4022.22XNBR/FABRIC     SS-1343
R476228401622.20673.1022.22NBR/FABRIC     SS-1768
R476408601640.00684.0020.00FKM/FABRIC     SS-2700
R47708D501708.02757.1722.22HNBR/FABRIC     SS-1380
R479998401984.251030.0020NBR/FABRIC     SS-337




For customised items please Click here
