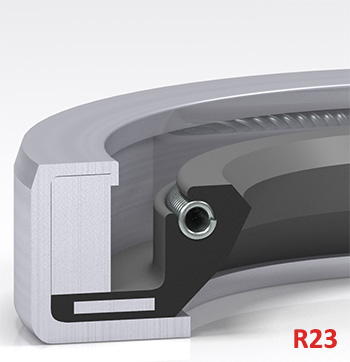

Max Spare : R23

Profile : Heavy Duty Seals

MATERIALS
NBR / MS
HNBR / MS
FKM / MS
MAX OPERATING CONDITION
Pressure : 0.5 Bar
Temperature : -30° to +100°
-30° to +140°
-40° to +220°
Speed :10 m/s

ACI style rotary seal are mostly used in hot rolled or cold rolled steel rolling mills for sealing expensive bearing in the work rolls, intermediate rolls and backup roll chocks. Extremely longlife is assured compared to other seals. Due to a robust design providing a steel spacer and a hard CRC outer cup, this seal provides excellent retention in the housing thus increasing seal resistance to rotate or distort with the shaft as seen with conventional seals

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R230280801	28.00	42.00	5	NBR	SB-4226
R230306401	30.16	57.13	12.7	FKM	SC-3950
R230310802	31.00	54.00	10	NBR	SC-4253
R230310801	31.00	54.00	10	NBR	SC-4263
R230356401	35.00	56.00	5.8	FKM	SC-2558
R230470801	47.00	70.00	12	NBR	SC-3941
R230850801	85.00	100.00	10	NBR	SD-2829
R23086D501	86.00	110.00	10	HNBR	SE-1286
R230896401	89.00	114.50	13	FKM	SE-889
R230950801	95.00	120.00	12	NBR	SE-840
R231006401	100.00	130.00	12.00	FKM	SF-2381
R231020801	102.00	125.00	14	NBR	SE-596
R231100802	110.00	135.00	13	NBR	SF-662
R231126401	112.00	140.00	13	FKM	SF-596
R231146401	114.30	136.52	11.11	FKM	SF-2047
R231150801	115.00	140.40	13	NBR	SF-688
R231200802	120.00	145.40	13	NBR	SF-689
R231356402	135.00	158.75	13	FKM	SG-595
R231356401	135.00	160.00	13	FKM	SG-412
R231396401	139.70	165.10	13	FKM	SG-594
R231400802	140.00	160.00	13.00	NBR	SG-953
R231400801	140.00	160.00	13.00	NBR	SG-954
R231502001	150.00	180.00	15	NEOPRENE	SH-953
R23200	200.00	230.00	15	NBR	SK-131
R23205	205.00	235.00	15	NBR	SK-120
R232100801	210.00	240.00	15	NBR	SK-480
R232120801	212.00	240.00	15	NBR	SK-236
R232180801	218.00	270.00	15	NBR	SM-762
R232200801	220.00	260.00	16	NBR	SM-216
R232220801	222.25	254.00	15.86	NBR	SM-470
R232286401	228.60	279.40	17.46	FKM	SN-347
R232300802	230.00	270.00	15	NBR	SM-208
R232356501	235.00	265.00	15	FKM	SM-181
R232470801	247.65	273.05	15.87	NBR	SM-436
R232500801	250.00	280.00	16	NBR	SN-320
R232500802	250.00	290.00	16	NBR	SN-400
R232500803	250.00	375.00	14	NBR	SR-840
R232550801	255.00	300.00	17	NBR	SN-444
R232420801	260.00	290.00	16	NBR	SN-134
R232606501	260.00	290.00	16	FKM	SN-185
R232606401	260.35	298.45	17.45	FKM	SN-415
R232660801	266.70	304.80	17.5	NBR	SR-567
R23270D501	270.00	310.00	16	HNBR	SR-583
R232730801	273.05	304.80	15.87	NBR	SR-617
R232800803	280.00	320.00	20	NBR	SR-303
R232950801	295.00	320.00	10	NBR	SR-820
R232960801	296.00	336.55	22.22	NBR	SR-574
R233006401	300.00	340.00	18	FKM	SR-1108
R23310802	311.00	351.00	16	NBR	SR-266
R233200804A	320.00	360.00	18	NBR	SR-437
R233300806	330.00	370.00	20	NBR	SR-438
R233550801	355.60	400.05	22.22	NBR	SS-330
R233610801	361.95	412.75	22.2	NBR	SS-402
R233880801	388.95	439.75	20.65	NBR	SS-329
R234060801	406.40	457.20	20.64	NBR	SS-423
R234190801	419.10	469.90	20.60	NBR	SS-1875
R234300801	430.00	470.00	20.00	NBR	SS-1451
R234400801	440.00	470.00	20.00	NBR	SS-1450
R234450801	445.00	485.00	20	NBR	SS-679
R234450802	445.00	485.00	20.00	NBR	SS-2629
R234600801	460.00	500.00	16.00	NBR	SS-2728
R23460D501	460.00	500.00	20	HNBR	SS-298
R234670801	467.00	510.00	25.5	NBR	SS-358
R234700801	470.00	530.00	25	NBR	SS-1829
R234820801	482.60	520.70	19.05	NBR	SS-200
R235200801A	520.70	571.50	28.57	NBR	SS-201
R235450801	545.00	595.00	25.5	NBR	SS-360
R235600802	560.00	600.00	20	NBR	SS-686
R235600801	560.00	620.00	25	NBR	SS-520
R236200801	620.00	670.00	25.5	NBR	SS-359
R236200802	620.00	671.50	20	NBR	SS-2021
R236200802	620.52	671.32	19.05	NBR	SS-617
R236306401	630.00	670.00	20	FKM	SS-796
R236700801	670.00	720.00	20	NBR	SS-1238
R236850801	685.00	745.00	25	NBR	SS-1286
R237000802	700.00	750.00	20	NBR	SS-2548
R237000801	700.00	750.00	20	NBR	SS-362
R237106601	710.00	750.00	20	FKM	SS-1808
R237100801	710.00	760.00	25	NBR	SS-1608
R237400801	740.00	790.00	25	NBR	SS-633
R237490801	749.30	812.80	22.22	NBR	SS-309
R237500801	750.00	800.00	25.00	NBR	SS-2747
R237720801	772.16	838.20	20.32	NBR	SS-403
R237740801	774.70	838.20	25.4	NBR	SS-316
R237750802	775.00	827.00	22	NBR	SS-632
R238000804	800.00	850.00	25	NBR	SS-590
R238406401	840.00	904.00	25	FKM	SS-1597
R238600801	860.00	920.00	25	NBR	SS-118
R23880D501	880.00	944.00	22.5	HNBR	SS-434
R238890801	889.00	952.50	25.4	NBR	SS-277
R238890802	889.00	970.00	22.22	NBR	SS-601
R239140802	914.40	965.20	22.22	NBR	SS-435
R239140803	914.40	977.90	25.4	NBR	SS-1630
R239200801	920.00	965.00	20	NBR	SS-363
R239270801	927.10	977.90	22.22	NBR	SS-551
R239451001	945.00	997.14	22.22	NBR	SS-378
R23960D501	960.00	1020.00	25	HNBR	SS-1025
R239900902	990.60	1041.40	22.2	NBR	SS-1347
R239990801	1000.00	1060.00	25	NBR	SS-1609
R239996401	1092.00	1128.00	18	FKM	SS-1626
R2310920801	1092.20	1155.70	25.4	NBR	SS-338
R239990805	1130.30	1168.40	19.05	NBR	SS-1874
R239990804	1211.00	1286.00	30	NBR	SS-882
R239990806	1380.00	1440.00	25	NBR	SS-1876
R239990802	1498.60	1549.40	22.2	NBR	SS-631
R239990803	1636.00	1700.00	22	NBR	SS-690
