Max Spare : R25

Profile : Heavy Duty Seals

MATERIALS
NBR / MS
MAX OPERATING CONDITION
Pressure : 0.5 Bar
Temperature : -30° to +100°
Speed :10 m/s

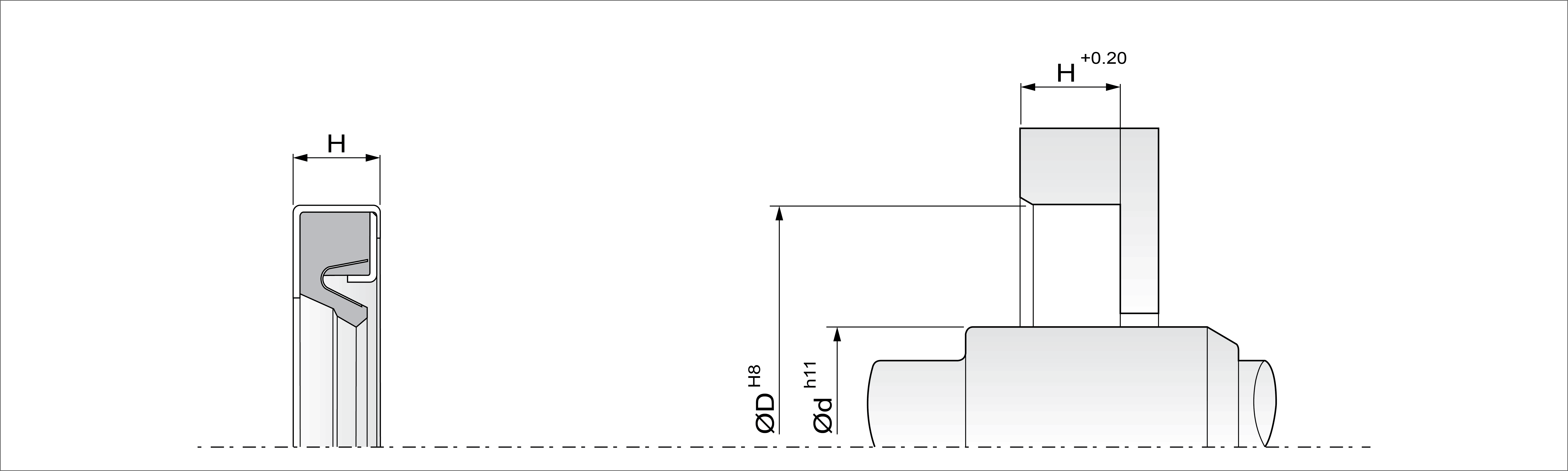

Max Spare ACK style Rotary Seal commonly use in heavy duty gear boxes. Due to its two metal case this seal becomes robust and with additional cup type spring create good contact with rotating shaft thus gives long term sealing ability in severe operating conditions.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R250100801	10.31	22.22	7.95	NBR	SB-8219
R250150801	15.87	31.75	7.92	NBR	SB-8221
R250220801	22.22	34.92	7.92	NBR	SB-8244
R250310801	31.75	50.80	9.52	NBR	SC-4110
R250386401	38.10	63.50	12.70	FKM	SC-7649
R25038O301	38.10	66.77	9.52	NBR	SC-6954
R25041S801	41.14	63.50	14.00	NBR	SC-7318
R250420802	42.06	68.22	9.52	NBR	SC-7469
R250420801	42.87	73.02	9.52	NBR	SC-4213
R250430801	43.00	62.00	9.52	NBR	SC-4065
R250440801	44.45	61.65	9.52	NBR	SC-4012
R250440803	44.45	66.67	15.87	NBR	SC-7376
R250446401	44.45	69.85	7.92	FKM	SC-106
R250440802	44.45	73.02	9.52	NBR	SC-7013
R250464301	46.99	69.85	9.65	SILICON	SC-4564
R250470801	47.62	66.67	9.52	NBR	SC-4013
R250470802	47.63	79.98	9.52	NBR	SD-4838
R250631001	63.50	80.96	9.52	NBR	SD-3871
R250630801	63.50	92.02	9.52	NBR	SD-4887
R250650801	65.10	82.45	9.52	NBR	SD-4746
R250730801	73.02	92.02	9.52	NBR	SD-4972
R250761001	76.20	104.77	12.70	NBR	SE-2008
R250761002	76.20	114.30	12.70	NBR	SE-2723
R250781001	78.00	110.00	12	NBR	SE-2205
R250806401	80.97	107.92	12.70	FKM	SE-2782
R250831001	83.00	110.00	12	NBR	SE-2206
R250840801	84.12	111.12	12.70	NBR	SE-1400
R250850802	85.72	111.12	12.70	NBR	SE-2012
R250850801	85.72	117.47	12.70	NBR	SE-1716
R250880801	88.90	114.30	12.70	NBR	SE-2572
R250906401	90.00	114.00	12	FKM	SE-1491
R250900801	90.48	123.82	15.87	NBR	SE-553
R250920803	92.07	117.47	12.70	NBR	SE-1715
R250920801	92.07	117.47	18.25	NBR	SE-408
R250920804	92.07	127.00	12.70	NBR	SF-2327
R250950802	95.25	120.65	12.70	NBR	SE-2225
R250950801	95.25	126.97	12.7	NBR	SF-620
R250950803	95.30	120.70	12.70	NBR	SE-2238
R250960801	96.90	123.80	12.70	NBR	SE-2511
R251000806	100.00	127.00	12.7	NBR	SF-1421
R251000804	100.00	127.00	15.87	NBR	SF-182
R251000805	100.00	130.00	12	NBR	SF-1109
R251070801	107.95	139.70	12.70	NBR	SF-2234
R251080801	108.00	137.00	12.00	NBR	SF-2425
R25108D501	108.00	150.00	15.87	HNBR	SF-2637
R251140801	114.30	139.70	12.7	NBR	SF-642
R251146403	114.30	139.70	12.70	FKM	SF-2536
R251140804	114.30	146.05	15.87	NBR	SF-258
R251146402	114.30	149.23	12.70	FKM	SF-2537
R251140803	114.30	152.40	12.70	NBR	SG-1100
R251140802	114.30	165.10	16.60	NBR	SG-965
R251170802	117.47	142.87	12.7	NBR	SF-736
R251170801	117.47	152.40	12.7	NBR	SG-435
R251170803	117.48	152.40	12.70	NBR	SG-1747
R251181001	118.00	150.00	12	NBR	SF-1922
R251186401	118.27	140.00	12.00	FKM	SF-2636
R25120D501	120.60	146.00	13.50	HNBR	SF-2633
R251200801	120.65	146.05	12.7	NBR	SF-622
R251200802	120.65	149.23	12.70	NBR	SF-2525
R251230801	123.82	158.92	15.87	NBR	SG-1745
R251250801	125.42	152.40	12.70	NBR	SG-1551
R251270804	127.00	152.40	12.70	NBR	SG-487
R251270803	127.00	158.75	14.27	NBR	SG-436
R251270801	127.00	165.10	15.87	NBR	SG-905
R251310801	131.75	158.75	12.70	NBR	SG-494
R251310802	131.77	168.27	12.70	NBR	SG-1823
R251336401	133.35	152.40	13.50	FKM	SG-1901
R251330805	133.35	158.75	12.70	NBR	SG-1330
R251330802	133.35	165.10	12.7	NBR	SG-482
R251330803	133.35	165.10	15.87	NBR	SG-209
R251360802	136.52	161.92	12.70	NBR	SG-1417
R251380802	138.09	171.45	12.70	NBR	SG-1766
R251380801	138.10	168.30	12.70	NBR	SG-1671
R251390801	139.70	165.10	12.7	NBR	SG-811
R251390803	139.70	165.10	12.70	NBR	SG-1135
R251390802	139.70	190.50	12.7	NBR	SH-817
R251400801	140.00	170.00	15.00	NBR	SG-1875
R251420801	142.87	171.45	12.70	NBR	SG-1834
R251451001	145.00	175.00	12	NBR	SG-1458
R251466402	146.05	171.45	12.7	FKM	SG-372
R251460803	146.05	177.80	12.70	NBR	SH-1098
R25147D501	147.62	174.62	12.70	HNBR	SG-1555
R251490801	149.22	174.62	12.70	NBR	SG-1540
R251506402	150.79	177.80	12.70	FKM	SH-1535
R251501001	150.82	184.15	15.87	NBR	SH-1218
R251520803	152.40	177.80	12.7	FKM	SH-312
R251520802	152.40	177.80	12.70	NBR	SH-922
R251520805	152.40	177.80	14.27	NBR	SH-990
R251520804	152.40	190.50	12.70	NBR	SH-923
R251550802	155.00	180.00	15	NBR	SH-1222
R251550801	155.57	184.15	12.7	NBR	SH-613
R251551001	155.57	184.15	12.70	NBR	SH-1183
R251580801	158.75	184.15	12.70	NBR	SH-925
R251580802	158.75	190.50	12.70	NBR	SH-1420
R251600801	160.00	190.00	15.00	NBR	SH-1579
R251630801	163.50	190.50	12.70	NBR	SH-1354
R25165801	165.10	190.50	15.87	NBR	SH-1136
R251680805	168.27	193.67	15.87	NBR	SH-1486
R251680802	168.27	193.67	15.87	NBR	SH-489
R251680804	168.27	215.90	15.87	NBR	SJ-590
R251710803	171.00	193.50	15.87	NBR	SH-536
R251710804	171.45	196.85	15.87	NBR	SH-1398
R251716401	171.45	203.20	15.87	FKM	SJ-410
R251710805	171.45	209.55	15.87	NBR	SJ-993
R251720801	172.00	202.00	15	NBR	SJ-536
R251730801	173.50	196.50	15.87	NBR	SH-535
R251740801	174.63	206.38	15.88	NBR	SJ-518
R251770804	177.80	203.20	15.87	NBR	SJ-251
R251770805	177.80	203.20	15.87	NBR	SJ-776
R251770803	177.80	209.55	15.87	NBR	SJ-254
R25180D501	180.00	210.00	15	HNBR	SJ-844
R251800802	180.97	206.37	15.87	NBR	SJ-1083
R251800801	180.97	209.55	15.87	NBR	SJ-630
R251840801	184.98	224.79	15.87	NBR	SJ-1054
R251850801	185.00	215.00	15	NBR	SJ-539
R251870801	187.32	212.72	15.87	NBR	SJ-530
R251900803	190.00	217.00	14	NBR	SJ-444
R251900805	190.50	215.90	15.87	NBR	SJ-719
R251900801	190.50	222.25	15.87	NBR	SJ-347
R251900804	190.50	225.42	15.87	NBR	SK-650
R251900802	190.50	228.60	15.87	NBR	SK-357
R251900806	190.50	228.60	15.87	NBR	SK-945
R251966401	196.85	228.60	15.87	FKM	SK-969
R251960801	196.85	234.95	15.87	NBR	SK-584
R252030801	203.20	228.60	12.7	NBR	SK-375
R252030805	203.20	254.00	17.47	NBR	SM-684
R252060801	206.37	257.17	19.05	NBR	SM-792
R252090801	209.55	241.30	15.67	NBR	SK-854
R252090803	209.55	260.35	19.05	NBR	SM-455
R25212	212.72	247.65	19.05	NBR	SK-299
R252150802	215.90	241.30	15.87	NBR	SK-789
R252150801	215.90	266.70	25.4	NBR	SM-385
R252200801	220.00	250.00	15	NBR	SK-505
R252281001	228.60	254.00	15.87	NBR	SM-635
R252280801	228.60	260.35	15.87	NBR	SM-108
R252280804	228.60	266.70	15.87	NBR	SM-518
R25228	228.60	279.40	19.05	NBR	SN-228
R252280803	228.60	279.40	25.4	NBR	SN-334
R252310801	231.77	273.05	19.05	NBR	SM-780
R252340801	234.95	260.35	15.87	NBR	SM-384
R252340802	234.95	263.52	19.05	NBR	SM-417
R252350802	235.00	285.00	25	NBR	SN-396
R252410803	241.30	266.70	15.87	NBR	SM-594
R252410802	241.30	273.05	15.87	NBR	SM-568
R252410801	241.30	292.10	25.4	NBR	SN-335
R252470801	247.65	273.05	15.87	NBR	SM-516
R2532470802	247.65	285.75	19.05	NBR	SN-655
R252500801	250.82	288.92	19.05	NBR	SN-332
R252500802	250.82	292.10	19.05	NBR	SN-392
R252530801	253.00	292.20	15.87	NBR	SN-389
R252541001	254.00	279.40	14.30	NBR	SN-595
R252540803	254.00	292.10	19.05	NBR	SN-796
R252540802	254.00	298.45	19.05	NBR	SN-301
R252550801	255.00	290.00	16	NBR	SN-430
R25257D501	257.17	295.27	17.47	HNBR	SN-307
R252570802	257.17	295.27	17.47	NBR	SN-528
R252570801	257.17	304.80	19.05	NBR	SR-801
R252606401	260.00	300.00	20	FKM	SN-375
R25260	260.35	295.27	12.7	NBR	SN-232
R252660802	266.70	292.10	15.87	NBR	SN-682
R252660801	266.70	317.50	19.05	NBR	SR-911
R252690801	269.87	314.32	19.05	NBR	SR-717
R2512796401	279.40	304.80	15.87	FKM	SR-1462
R252790802	279.40	311.15	15.87	NBR	SR-1441
R252791001	279.40	317.50	15.87	NBR	SR-1077
R252850801	285.75	323.85	19.05	NBR	SR-718
R252850802	285.75	325.00	12.7	NBR	SR-789
R252850803	285.75	336.55	25.40	NBR	SR-1629
R253046401	304.80	342.90	19.05	FKM	SR-1307
R253040801	304.80	342.90	19.05	NBR	SR-605
R253046402	304.80	374.65	22.35	FKM	SR-1581
R253420801	342.90	393.70	25.4	NBR	SS-588
R253496401	349.25	387.35	17.46	FKM	SS-395
R253806401	380.00	420.00	20.00	FKM	SS-2881
R253810803	381.00	419.10	17.47	NBR	SS-476
R253810802	381.00	425.45	19.05	NBR	SS-1737
R253810801	381.00	431.80	25.4	NBR	SS-587
R253936701	393.20	431.80	19	FKM	SS-2207
R254000801	400.00	440.00	20	NBR	SS-1317
R254000802	400.00	450.00	25.67	NBR	SS-2531
R254060801	406.40	444.50	19.05	NBR	SS-804
R254190802	419.10	463.70	19.05	NBR	SS-1416
R254190801	419.10	469.90	20.63	NBR	SS-1187
R254310801	431.80	457.20	17.4	NBR	SS-1188
R254310803	431.80	463.70	15.87	NBR	SS-1417
R254310802	431.80	469.90	17.40	NBR	SS-1220
R254690801	469.90	520.70	25.40	NBR	SS-2443
R254820801	482.60	520.70	19.05	NBR	SS-817
R25544801	544.52	588.97	15.87	NBR	SS-2444
R255600802	560.00	604.00	16.81/23.16	NBR	SS-2257
R255960801	596.90	647.70	25.40	NBR	SS-2645
R256350801	635.00	685.80	22.22	NBR	SS-470
R25650D601	650.00	690.00	20.00	HNBR	SS-1124
R256850801	685.80	736.60	25.40	NBR	SS-2646
R257626401	762.00	812.80	19.05	FKM	SS-2780
R258100801	810.00	875.00	25	NBR	SS-1582
R258250801	825.55	876.30	22.22	NBR	SS-1533
R259520801	952.50	1003.30	19.05	NBR	SS-471
R259990801	1270.00	1320.80	22.22	NBR	SS-472
