Max Spare : R26

Profile : Heavy Duty Seals

MATERIALS
NBR / MS
HNBR / MS
FKM / MS
MAX OPERATING CONDITION
Pressure : 0.5 Bar
Temperature : -30° to +100°
-30° to +140°
-40° to +220°
Speed :20 m/s
30 m/s
35 m/s

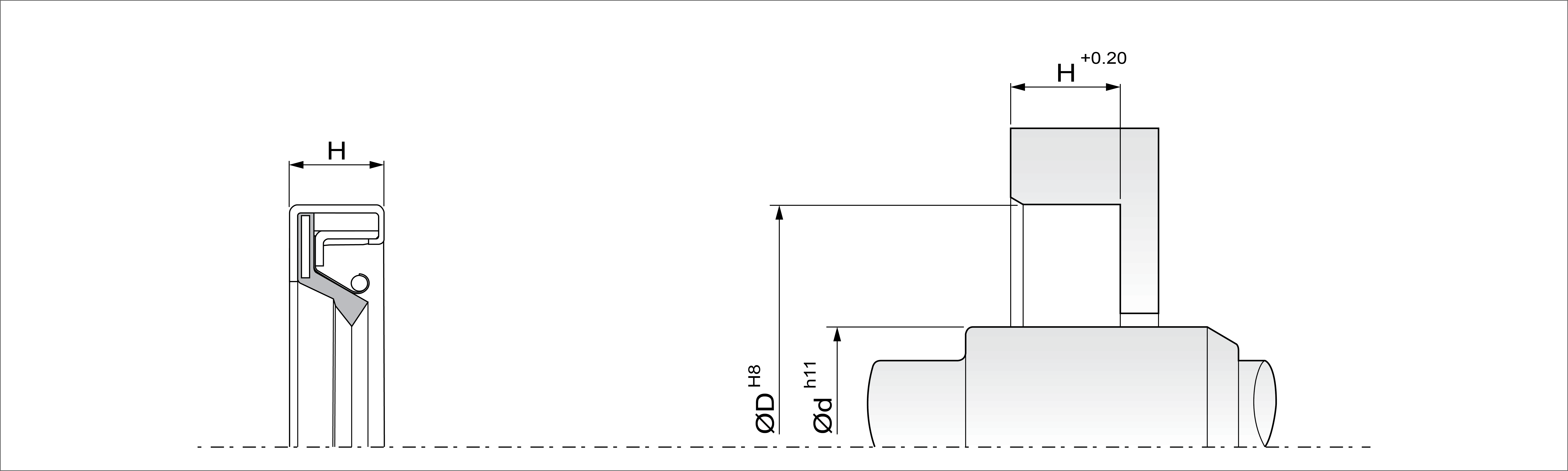

Max Spare ACL style Rotary Seal is use for high speed applications. This profile has a robust steel spacer enclosed into hard CRC (metal) cup with a rubber lip and a cup type spring preloaded with a garter spring to give double tension on the shaft. Can be used in the application where the shaft has an eccentric movement.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R260380801	38.00	52.00	8	NBR	SC-6280
R260906401	90.00	114.00	12	FKM	SE-1476
R261006401	100.00	130.00	12	FKM	SF-2161
R261330801	133.35	158.75	12.70	NBR	SG-1736
R26140D501	140.00	160.00	13	HNBR	SG-764
R261506401	150.00	180.00	15	FKM	SH-639
R261620801	162.00	190.18	20	NBR	SH-916
R261696401	165.10	203.20	18.25	FKM	SJ-771
R26184D501	184.15	206.37	19.05	HNBR	SJ-382
R262036401	203.20	241.30	17.45	FKM	SK-355
R262030801	203.20	241.30	19.05	NBR	SK-632
R262090801	209.55	254.00	19.05	NBR	SM-523
R262090802	209.55	260.35	19.05	NBR	SM-524
R262090803	209.55	260.35	20.82	NBR	SM-647
R262120801	212.72	250.82	17.44	NBR	SM-540
R262190801	219.07	257.17	17.44	NBR	SM-578
R262206401	220.00	260.00	16	FKM	SM-627
R262220801	222.25	260.35	17.44	NBR	SM-579
R262250801	225.00	265.00	16	NBR	SM-557
R262280802	228.60	254.00	15.87	NBR	SM-763
R262280801	228.60	266.70	17.47	NBR	SM-560
R262332001	233.36	291.70	20.5	NEOPRENE	SN-436
R262400801	240.00	280.00	15	NBR	SN-311
R262410801	241.30	292.10	20.62	NBR	SN-686
R262540801	254.00	279.40	14.30	NBR	SN-725
R26254D501	254.00	292.10	17.44	HNBR	SN-685
R262660802	266.70	304.80	17.44	NBR	SR-942
R262660802	266.70	304.80	17.5	FKM	SR-361
R262790801	279.40	317.50	17.46	NBR	SR-943
R262880801	288.77	330.60	20	NBR	SR-996
R262920802	292.10	330.20	17.45	NBR	SR-754
R263040801	304.80	342.90	17.14	NBR	SR-924
R263046401	304.80	355.60	20.62	FKM	SR-1082
R263040802	304.80	361.95	25.40	NBR	SR-1241
R263116401	311.15	349.25	17.44	FKM	SR-1161
R263112001	311.15	355.60	17	NEOPRENE	SR-834
R263110801	311.15	361.95	20.62	NBR	SR-1154
R263110802	311.15	361.95	25.40	NBR	SR-1200
R263200802	320.67	358.77	17.44	NBR	SR-1121
R263300804	330.20	368.30	17.44	NBR	SR-1122
R263306401	330.20	368.30	17.44	FKM	SR-527
R263304301	330.20	368.30	20.65	SILICON	SR-745
R26	336.55	374.65	17.44	NBR	SR-409
R263400801	340.00	380.00	20	NBR	SS-861
R263420801	342.90	381.00	17.47	NBR	SS-1952
R263420802	342.90	393.70	20.62	NBR	SS-2400
R263496401	349.25	400.05	20.62	FKM	SS-1836
R263656401	365.12	406.40	17.44	FKM	SS-2054
R263680803	368.32	406.42	17.46	NBR	SS-1581
R263746401	374.65	419.10	17.47	FKM	SS-1831
R263816401	381.00	419.10	25.40	FKM	SS-1832
R263810802	381.00	431.80	20.62	NBR	SS-723
R263870802	387.35	425.45	17	NBR	SS-1261
R263930802	393.70	444.50	30.14	NBR	SS-725
R264006403	400.00	440.00	20	FKM	SS-2055
R264006402	400.05	438.15	17.47	FKM	SS-1898
R264060801	406.40	457.20	19.1	NBR	SS-1469
R264120801	412.75	450.85	17.44	NBR	SS-1777
R264190801	419.10	469.90	20.60	NBR	SS-1780
R264200801	420.00	460.00	18	NBR	SS-1010
R264310801	431.80	457.20	19.05	NBR	SS-2454
R264446401	444.50	482.60	17.45	FKM	SS-1060
R264570801	457.20	495.30	17.44	NBR	SS-752
R264600801	460.00	500.00	16	NBR	SS-1795
R264696401	469.90	520.70	25.40	FKM	SS-2005
R264700801	470.00	500.00	15	NBR	SS-2332
R264790801	479.98	519.98	19.98	NBR	SS-2712
R264820801	482.60	520.70	19.05	NBR	SS-846
R264880801	488.95	520.70	19.05	NBR	SS-2453
R264950801	495.30	546.10	22.22	NBR	SS-1266
R265206401	520.70	571.50	22.22	FKM	SS-2156
R265336401	533.40	584.20	25.40	FKM	SS-2004
R265466401	546.10	596.90	22.22	FKM	SS-1059
R265500801	550.00	600.00	22.20	NBR	SS-612
R265770801	577.85	628.65	22.22	NBR	SS-1244
R265840801	584.20	628.65	19.05	NBR	SS-2078
R266006401	600.00	650.00	20	FKM	SS-1346
R266350801	635.00	685.80	22.22	NBR	SS-742
R266606401	660.00	710.00	22.22	FKM	SS-2205
R266706401	670.00	720.00	22	FKM	SS-2056
R266730801	673.10	711.20	19.05	NBR	SS-743
R267620801	762.00	812.80	22.22	NBR	SS-1303
R267740801	774.70	825.50	22.22	NBR	SS-754
R268120802	812.80	863.60	22.22	NBR	SS-1454
R268250801	825.50	876.30	22.22	NBR	SS-1951
R26838D501	838.23	901.70	22.23	HNBR	SS-1162
R268696401	869.95	914.40	19.05	FKM	SS-2176
R26876D501	876.30	927.10	22.22	NBR	SS-755
R268896401	889.00	952.50	19.10	FKM	SS-2204
R2610920801	1092.20	1155.70	25.4	NBR	SS-408
R269990803	1130.30	1168.40	19.05	NBR	SS-1782
R269990802	1350.00	1415.00	25	NBR	SS-613
R269990804	1380.00	1440.00	25	NBR	SS-1781
