R51: High Pressure -Rotary Sealing Solutions Manufacturers, Exporters

Max Spare : R51

Profile : High Pressure Rotary Seals

Details :

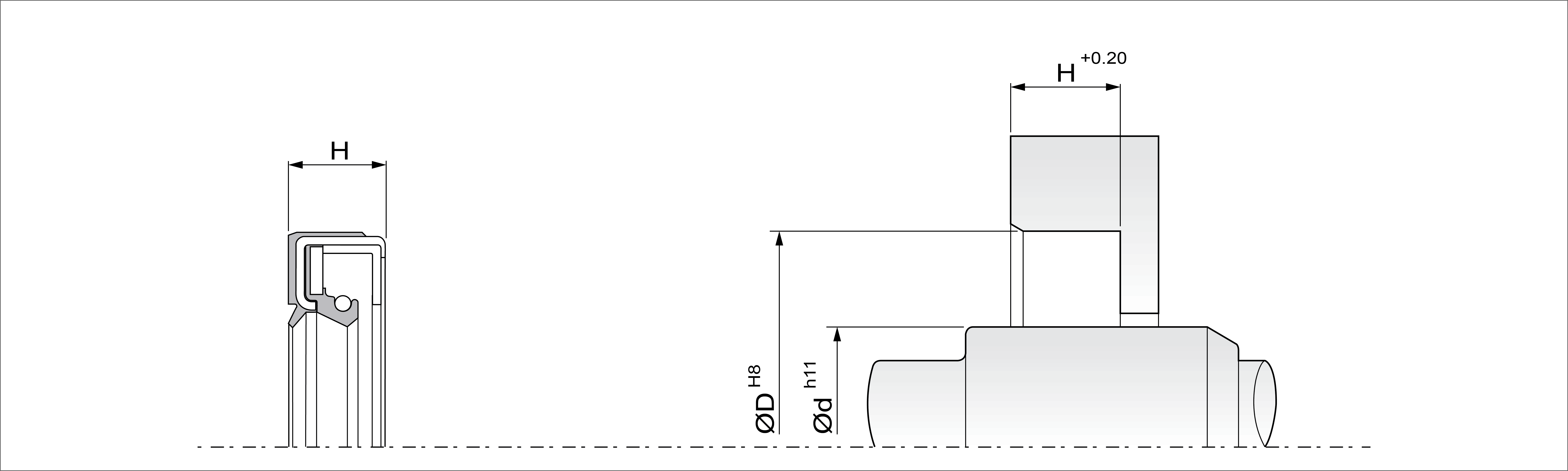

The R51 is a pressure-resistant oil seal with an auxiliary cage to minimize lip deformation under pressure. Used for mainly large diameter and high pressure rotating shafts.

MATERIAL

NBR / MS

80/85 Shore A

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	5.0 Bar
Speed	:	10.0 m/s

SURFACE ROUGHNESS

The surface roughness of the housing bore shall be between Ra 1.6µm to Ra 3.2µm.

The seal contact surface of shaft shall be surface roughness between Ra 0.2µm to Ra 0.5µm.

COMPATIBILITY

Mineral oils, Grease

APPLICATION

Steel Mills
Ship Building
Pumps, Motors & Gear Box
Automotive Industries
Tool & Machine Industries

FEATURES

High Pressure Seal
Easy to Installation
Perticularly robust static part
Highly wear resistant
Low Friction
Compatibility with the media to be seales
Any size upto 500mm available on request.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R510186601	18.00	30.00	8	FKM	SB-6476
R510196601	19.05	34.92	9.52	FKM	SB-2699
R510190801	19.05	38.10	7.89	NBR	SB-197
R510200801	20.00	32.00	7	NBR	SB-2900
R510201001	20.00	32.00	8.00	NBR	SB-9077
R510206401	20.00	35.00	10.00	FKM	SB-3686
R510221002	22.00	42.00	11	NBR	SB-5276
R510221003	22.00	43.00	11.00	NBR	SB-8321
R510236601	23.00	45.00	11.00	FKM	SB-6932
R510236602	23.00	46.00	11.00	FKM	SB-7556
R510241002	24.00	45.00	11	NBR	SB-6230
R510250801	25.00	45.00	11	NBR	SB-4416
R510256601	25.00	45.00	11.00	FKM	SB-9060
R510251001	25.00	46.00	13	NBR	SB-6177
R510251002	25.40	44.45	7.87	NBR	SB-1126
R510250802	25.40	44.45	9.52	NBR	SB-203
R510281002	28.00	48.00	11.00	NBR	SB-9589
R510291002	29.00	50.00	11	NBR	SB-6494
R510301001	30.00	47.00	7.00	NBR	SB-8694
R510300801	30.00	50.00	11	NBR	SB-3929
R510301002	30.00	50.00	11.00	NBR	SB-1185
R510306601	30.00	52.00	10.00	FKM	SC-6168
R51300320801	32.00	52.00	11	NBR	SC-2164
R510326402	32.00	52.00	11.00	FKM	SC-6723
R510343401	34.92	57.15	7.92	EPDM	SC-6270
R510351001	35.00	55.00	11	NBR	SC-5645
R510351002	35.00	55.00	12.00	NBR	SC-7733
R510351004	35.00	55.00	9.00	NBR	SC-8332
R510380801	38.00	58.00	11.00	NBR	SC-3401
R510381001	38.15	57.15	9.50	NBR	SC-5910
R510401003	40.00	55.00	8.00	NBR	SC-7384
R510401001	40.00	60.00	12.00	NBR	SC-6233
R510400801	40.00	62.00	11	NBR	SC-2082
R510401005	40.00	62.00	11.00	NBR	SC-8003
R510401004	40.00	62.00	12.00	NBR	SC-7988
R510426601	42.00	56.00	7.00	FKM	SC-7018
R510420801	42.00	65.00	12	NBR	SC-2531
R510426602	42.00	65.00	12.00	FKM	SC-7735
R510451001	45.00	68.00	12	NBR	SC-5349
R510481001	48.00	70.00	12.00	NBR	SC-6996
R510486601	48.00	72.00	8.00	FKM	SC-5245
R510506401	50.00	72.00	12	FKM	SC-4182
R510501002	50.00	72.00	9.00	NBR	SC-2590
R510536601	53.97	76.20	9.52	FKM	SD-4317
R510546601	54.00	90.00	11.10	FKM	SD-4462
R510551003	55.00	72.00	10.00	NBR	SC-6978
R510556601	55.00	75.00	12.00	FKM	SC-4938
R510551001	55.00	78.00	12	NBR	SD-1387
R510551002	55.00	78.00	8.00	NBR	SD-4644
R510556602	55.00	100.00	7.00	FKM	SD-4318
R510570801	57.15	76.20	12.70	NBR	SD-3267
R510586601	58.00	75.00	9.00	FKM	SC-5155
R510581001	58.00	80.00	12.00	NBR	SD-5207
R510601001	60.00	82.00	12	NBR	SD-948
R510601002	60.00	82.00	14	NBR	SD-3519
R510651003	65.00	90.00	10.00	NBR	SD-5117
R510651002	65.00	90.00	13	NBR	SD-3184
R510650802	65.00	90.00	13	NBR	SD-944
R510691001	69.85	88.90	12.70	NBR	SD-5646
R510696601	69.85	95.25	12.70	FKM	SD-5643
R510701001	70.00	95.00	13.00	NBR	SD-4680
R510701002	70.00	100.00	10.00	NBR	SD-5116
R510726401	72.00	90.00	12.00	FKM	SD-4968
R510800801	80.00	105.00	13	NBR	SE-1383
R510801001	80.00	105.00	15	NBR	SE-2176
R510826601	82.00	115.00	13.00	FKM	SE-3145
R510851001	85.00	110.00	12	NBR	SE-1957
R510881001	88.90	114.30	12.70	NBR	SE-2407
R510901002	90.00	110.00	13	NBR	SE-1559
R510901004	90.00	115.00	13.00	NBR	SE-2326
R510901003	90.00	115.00	14.00	NBR	SE-2272
R510951002	95.00	120.00	13.00	NBR	SE-2579
R511006601	100.00	125.00	13	FKM	SE-1810
R511011001	101.60	127.00	15.87	NBR	SF-2375
R511056601	105.00	135.00	14.00	FKM	SF-2715
R511106401	110.00	140.00	13	FKM	SF-1893
R511100801	110.00	140.00	14	NBR	SF-581
R511156601	115.00	140.00	12.00	FKM	SF-2231
R511151001	115.00	145.00	14.00	NBR	SF-2579
R51116U201	116.00	136.00	12.00	FKM	SF-165
R511200801	120.00	150.00	14	NBR	SF-1126
R511251001	125.00	155.00	14	NBR	SG-1269
R511401001	140.00	170.00	14.00	NBR	SG-180
R511406601	140.00	170.00	15.00	FKM	SG-1475
R511451001	145.00	175.00	17.00	NBR	SG-1530
R511501001	150.00	180.00	14	NBR	SH-1113
R511550801	155.00	180.00	10.00	NBR	SH-1546
R511650801	165.10	203.20	19.05	NBR	SJ-710
R511756601	175.00	200.00	15.00	FKM	SH-1371
R511801001	180.00	210.00	8.50	NBR	SJ-778
R511901001	190.00	225.00	16	NBR	SJ-662
R512221001	222.25	254.00	15.87	NBR	SM-650
R512301001	230.00	255.00	8	NBR	SM-605
R512321001	232.00	267.00	21.00	NBR	SM-663
R512401001	240.00	270.00	15.00	NBR	SM-756
R512451001	245.00	273.00	15.00	NBR	SM-144
R512801001	280.00	320.00	20	NBR	SR-920
R513201001	320.00	360.00	20	NBR	SR-919
R513556601	355.60	406.40	19.05	FKM	SS-2321
R514066601	406.40	444.50	17.47	FKM	SS-2320

For customised items please Click here
