R03: Rotary Standard Seals Manufacturers, Suppliers, Exporters

Max Spare : R03

Profile : Standard Rotary Shaft Seals

Details :

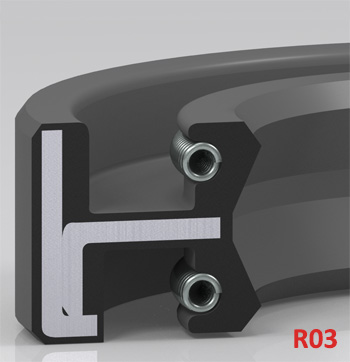

The R03 rotary shaft seal can be used for sealing two separate uids. e.g. coolant from shaft side to enter the bearing or to avoid the leakage of bearing lubricant from the opposite side.

MATERIAL

NBR / MS

70/75 Shore A

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	0.5 Bar
Speed	:	10.0 m/s

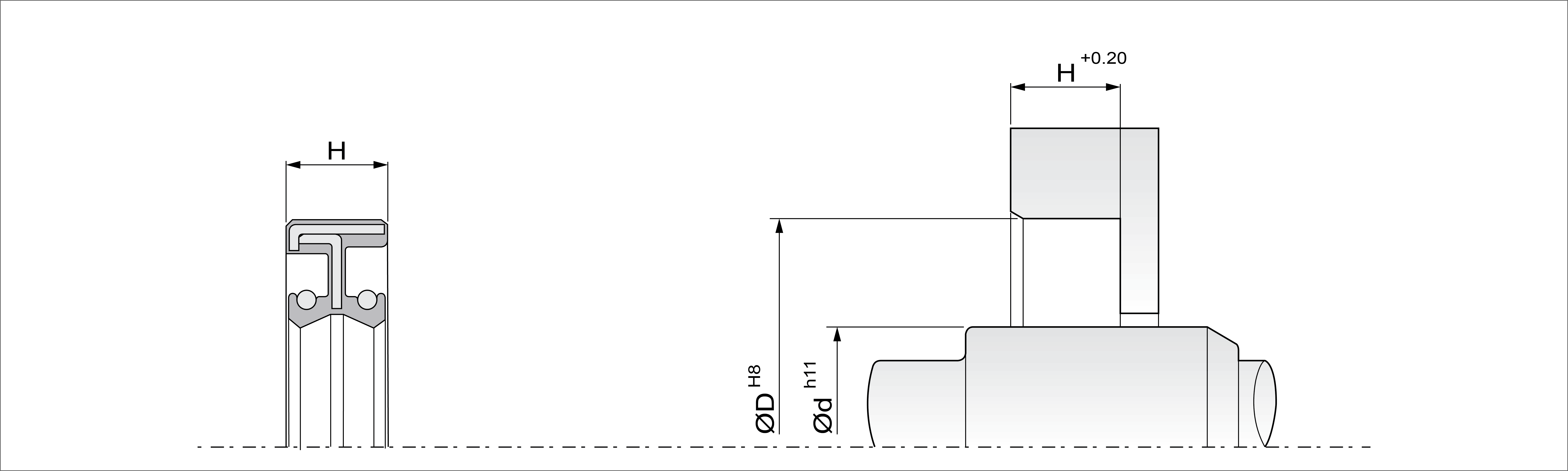

SURFACE ROUGHNESS

The surface roughness of the housing bore shall be between Ra 1.6µm to Ra 3.2µm.

The seal contact surface of shaft shall be surface roughness between Ra 0.2µm to Ra 0.5µm.

COMPATIBILITY

Mineral oils, Grease

APPLICATION

Steel Mills
Ship Building
Pumps, Motors & Gear Box
Automotive Industries
Tool & Machine Industries

FEATURES

Easy to Installation
Perticularly robust static part
Highly wear resistant
Low Friction
Compatibility with the media to be seales
Any size upto 500mm available on request.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R030100802	10.00	24.00	7.00	NBR	SB-9327
R030100801	10.00	24.00	8.00	NBR	SB-8822
R030130801	13.00	25.00	10	NBR	SB-5870
R030150803	15.00	24.00	7.00	NBR	SB-9205
R030150801	15.00	35.00	10	NBR	SB-5595
R030150802	15.88	28.58	9.53	NBR	SB-8341
R030160804	16.00	26.00	8.00	NBR	SB-7358
R030160803	16.00	28.70	8	NBR	SB-5936
R030160802	16.00	30.00	7	NBR	SB-2594
R030160806	16.00	30.00	7.00	NBR	SB-8443
R030170811	17.00	28.00	7.00	NBR	SB-8444
R030170808	17.00	28.65	7	NBR	SB-6391
R030176404	17.00	29.00	8.00	FKM	SB-9182
R030170810	17.00	30.00	10.00	NBR	SB-7548
R030170809	17.00	30.00	7.00	NBR	SB-6438
R030170812	17.00	30.00	7.00	NBR	SB-8442
R030170806	17.00	30.00	8	NBR	SB-3785
R030170807	17.45	28.58	8	NBR	SB-1634
R030176403	17.46	28.57	7.98	FKM	SB-9181
R030183201	18.00	30.00	10.00	EPDM	SB-8273
R030180802	18.00	30.00	7	NBR	SB-4997
R030180805	18.00	30.00	7.00	NBR	SB-9033
R030180804	18.00	30.00	8/10.00	NBR	SB-8774
R030196403	19.50	30.00	6.00	FKM	SB-6832
R030200808	20.00	30.00	7	NBR	SB-4470
R030206201	20.00	30.00	7.20	FKM	SB-5456
R030206402	20.00	30.50	7	FKM	SB-4845
R030206403	20.00	35.00	7.00	FKM	SB-8939
R030206601	20.00	35.00	8.00	FKM	SB-9489
R030350808	20.00	40.00	10.00	NBR	SB-9444
R030200810	20.00	47.00	10.00	NBR	SB-9446
R030200809	20.00	47.00	16	NBR	SB-1394
R030210801	21.00	32.00	7.00	NBR	SB-6649
R030226401	22.00	32.00	8.00	FKM	SB-3786
R030220804	22.00	34.00	9.70	NBR	SB-8820
R030220801	22.00	35.00	7	NBR	SB-3788
R030226402	22.00	35.00	8.00	FKM	SB-9022
R03022T901	22.00	47.00	8.00	FKM	SB-7650
R030230801	23.20	35.20	8.2	NBR	SB-3269
R030240801	24.00	35.00	7.00	NBR	SB-2753
R030246401	24.00	37.00	8.00	FKM	SB-6694
R030250808	25.00	35.00	7	NBR	SB-1590
R030250816	25.00	40.00	10.00	NBR	SB-8899
R030256403	25.00	40.00	8	FKM	SB-3095
R030256405	25.00	41.00	9.00	FKM	SB-8776
R030250817	25.00	42.00	11.00	NBR	SB-2669
R030250814	25.00	42.00	8.00	NBR	SB-7224
R030250818	25.00	45.00	10.00	NBR	SB-9445
R030250809	25.00	47.00	10	NBR	SB-426
R030250813	25.00	52.00	10	NBR	SC-4594
R03025T901	25.40	44.45	6.35	FKM	SB-7521
R030261001	26.00	41.00	9.00	NBR	SB-8258
R030260801	26.00	52.00	10	NBR	SC-4595
R030270801	27.00	43.00	8.00	NBR	SB-2329
R030286402	28.00	40.00	11.00	FKM	SB-8164
R030280803	28.00	42.00	7	NBR	SB-6300
R030286403	28.00	47.00	10.00	FKM	SB-9679
R030306401	30.00	40.00	10	NBR	SB-4123
R030306403	30.00	40.00	11.00	FKM	SB-6493
R030306402	30.00	40.00	7	FKM	SB-6040
R030300808	30.00	42.00	11	NBR	SB-5594
R030300803	30.00	45.00	10	NBR	SB-1346
R030300813	30.00	45.00	8.00	NBR	SB-2377
R030300814	30.00	45.00	8.50/12.00	NBR	SB-9517
R030300806	30.00	47.00	10	NBR	SB-3642
R03030T901	30.00	47.00	7.00	FKM	SB-7649
R030306404	30.00	48.00	12.00	FKM	SB-7448
R030304301	30.00	50.00	10.00	SILICON	SB-8423
R030300815	30.00	52.00	8.00	NBR	SC-8325
R030300812	30.00	52.00	9.00	NBR	SC-2217
R030300811	30.00	55.00	10.00	NBR	SC-7955
R030300809	30.14	44.45	11.09	NBR	SB-7300
R030310803	31.75	50.80	12.70	NBR	SC-6539
R030316401	31.75	50.80	9.39	FKM	SC-6624
R030320801	32.00	45.00	10	NBR	SB-3291
R030326402	32.00	45.00	7.00	FKM	SB-8471
R030320803	32.00	47.00	12.00	NBR	SB-4817
R030320804	32.00	49.35	9.50	NBR	SB-8821
R030320802	32.00	52.00	7	NBR	SC-3051
R030300801	33.00	46.00	10.70	NBR	SB-7647
R030346401	34.00	48.00	10.00	FKM	SB-6580
R030346402	34.00	62.00	10.00	FKM	SC-6526
R030340802	34.92	76.14	12.70	NBR	SD-4006
R030356408	35.00	45.00	10.00	FKM	SB-4631
R030356405	35.00	47.00	10	FKM	SB-4509
R030356407	35.00	47.00	7.00	FKM	SB-8327
R030356406	35.00	47.00	8.00	FKM	SB-7678
R030350801	35.00	50.00	11	NBR	SB-3789
R030350803	35.00	50.00	12	NBR	SB-5475
R030350807	35.00	52.00	10.00	NBR	SC-8032
R030350804	35.00	52.00	12	NBR	SC-5023
R030350802	35.00	56.00	10	NBR	SC-3613
R030360801	36.00	56.00	10.00	NBR	SC-6253
R030380802	38.00	52.00	7.50	NBR	SC-4151
R030380804	38.10	50.36	9.52	NBR	SC-6223
R030380805	38.10	69.85	11.12	NBR	SC-7577
R030380803	38.10	76.14	12.70	NBR	SD-4004
R030400802	40.00	52.00	8	NBR	SC-2514
R030406401	40.00	60.00	12.00	FKM	SC-6079
R030400801	40.00	62.00	10	NBR	SC-2465
R030400807	40.00	62.00	14.00	NBR	SC-1167
R030400806	40.00	62.00	8	NBR	SC-4279
R03040T901	40.00	72.00	10.00	FKM	SC-8046
R030410804	41.00	53.00	8.00	NBR	SC-8144
R030410802	41.00	54.00	11.00	NBR	SC-7296
R030410801	41.27	76.14	12.70	NBR	SD-4007
R030410803	41.28	63.50	11.11	NBR	SC-7431
R030420802	42.00	68.00	10.00	NBR	SC-8265
R030440801	44.45	61.97	8.00	NBR	SC-7118
R030450809	45.00	60.00	9.00	NBR	SC-6712
R030450807	45.00	62.00	10.00	NBR	SC-6360
R030450802	45.00	62.00	12	NBR	SC-2972
R030456403	45.00	62.00	14	FKM	SC-3852
R030450801	45.00	62.00	7	NBR	SC-2919
R030456401	45.00	62.00	8	FKM	SC-1953
R030456404	45.00	65.00	12	FKM	SC-4202
R030450808	45.00	75.00	10.00	NBR	SC-6361
R030476401	47.00	60.00	7.00	FKM	SC-6080
R030470801	47.49	69.85	9.37	NBR	SC-7905
R03047D501	47.62	69.85	12.70	HNBR	SC-8011
R030486401	48.00	62.00	10.00	FKM	SC-6481
R030486402	48.00	70.00	12.00	FKM	SC-6733
R030480802	48.00	72.00	10.00	NBR	SC-7199
R030500802	50.00	65.00	8	NBR	SC-2942
R030506406	50.00	68.00	10.00	FKM	SC-8285
R030500801	50.00	70.00	10	NBR	SC-2571
R03050T901	50.00	70.00	8	FKM	SC-3913
R030500803	50.00	72.00	14.00	NBR	SC-5609
R030500806	50.00	80.00	10.00	NBR	SD-1727
R03050T902	50.80	70.00	10.00	FKM	SC-6458
R030500804	50.80	76.14	12.70	NBR	SD-4005
R030526401	52.00	68.00	14.00	FKM	SC-7761
R030520801	52.00	75.00	15.00	NBR	SC-6862
R030550803	55.00	70.00	10	NBR	SC-4596
R030556404	55.00	70.00	9.50	FKM	SC-2471
R030550813	55.00	72.00	10.00	NBR	SC-2306
R030550808	55.00	72.00	10.00	NBR	SC-6431
R030556403	55.00	72.00	8.00	FKM	SC-6785
R03055S801	55.00	75.00	8.00	NBR	SC-7774
R030556402	55.00	78.00	11	FKM	SD-3342
R030550806	55.00	78.00	12.00	NBR	SD-4107
R030550807	55.00	78.00	22.00	NBR	SD-4106
R030556401	55.00	80.00	10	FKM	SD-2426
R030550812	55.00	80.00	13.00	NBR	SD-5007
R030550811	55.00	90.00	10.00	NBR	SD-4476
R030576401	57.00	80.00	10.00	FKM	SD-1199
R030576601	57.00	90.00	13.00	FKM	SD-4836
R030586601	58.00	80.00	10.00	FKM	SD-3863
R030606401	60.00	80.00	8.00	FKM	SD-2523
R030606402	60.00	85.00	10	FKM	SD-3215
R030600806	60.00	90.00	10.00	NBR	SD-4526
R030630802	63.00	80.00	10	NBR	SD-3108
R030630803	63.00	95.40	17	NBR	SD-3562
R030636401	63.50	88.90	12.70	FKM	SD-2592
R030630804	63.50	88.90	19.00	NBR	SD-5546
R030650815	65.00	85.00	10.00	NBR	SD-5656
R030650814	65.00	85.00	16.00	NBR	SD-1808
R030650811.	65.00	85.00	16.00	NBR	SD-4357
R030650812	65.00	85.00	18.00	NBR	SD-4521
R030654301	65.00	85.00	18.00	SILICON	SD-4608
R030650811	65.00	85.00	6.00	NBR	SD-4335
R030656405	65.00	90.00	10.00	FKM	SD-1735
R030650813	65.00	90.00	12.00	NBR	SD-4938
R030656402	65.00	90.00	16.00	FKM	SD-4734
R030650810	65.00	95.00	18	NBR	SD-3543
R030656403	65.00	100.00	10	FKM	SD-2587
R030650809	65.00	120.00	12	NBR	SE-1818
R030690801	69.85	88.90	15.87	NBR	SD-2369
R030706406	70.00	85.00	8.00	FKM	SD-807
R030700807	70.00	89.00	12.00	NBR	SD-4699
R030700801	70.00	90.00	10	NBR	SD-1446
R030700806	70.00	90.00	13	NBR	SD-1124
R030700805	70.00	95.00	10	FKM	SD-1845
R030700808	70.00	100.00	15.00	NBR	SD-5227
R030726401	72.00	95.00	10.00	FKM	SD-4035
R030720801	72.00	105.00	13.00	NBR	SE-2801
R030740802	74.80	95.00	15	NBR	SD-3613
R030750801	75.00	90.00	15	NBR	SD-2077
R030754301	75.00	95.00	10.00	SILICON	SD-4802
R030751001	75.00	95.00	12.00	NBR	SD-3948
R030751002	75.00	95.00	12.70	NBR	SD-5258
R030756401	75.00	95.00	14.00	FKM	SD-5410
R030756402	75.00	100.00	10	FKM	SD-1570
R030756404	75.00	100.00	14.00	FKM	SD-1437
R030750804	75.00	105.00	13.00	NBR	SE-2802
R030760801	76.20	98.42	9.52	NBR	SD-1673
R030780801	78.00	100.00	12.00	NBR	SD-4650
R030800801	80.00	100.00	12	NBR	SD-1846
R030804301	80.00	100.00	18.00	SILICON	SD-4606
R030806404	80.00	100.00	8.00	FKM	SD-486
R030806403	80.00	110.00	10.00	FKM	SE-2683
R030806401	80.00	110.00	12	FKM	SE-1240
R030800803	80.00	120.00	15.00	NBR	SE-2929
R030800804	80.00	125.00	15.00	NBR	SE-422
R030820801	82.55	114.30	11.12	NBR	SE-2952
R030850801	85.00	100.00	13	NBR	SD-1068
R030850803	85.00	105.00	13/16.50	NBR	SE-1908
R030856402	85.00	105.00	13/17	FKM	SE-2234
R030856405	85.00	105.00	13/17.00	FKM	SE-2944
R030856406	85.00	105.00	13/17.00	FKM	SE-2971
R030850804	85.00	110.00	12.00	NBR	SE-335
R030853201	85.00	110.00	15.00	NBR	SE-3105
R030880901	88.85	114.30	12.70	NBR	SE-2731
R030881002	88.90	114.30	12.70	NBR	SE-3234
R030880802.	88.90	114.30	13.00	NBR	SE-2553
R030900805	90.00	114.00	12.70	NBR	SE-2068
R030906403	90.00	115.00	10.00	FKM	SE-2635
R030900804	90.00	115.00	13	NBR	SE-1873
R030906404	90.00	120.00	13.00	FKM	SE-2787
R030900806	90.00	120.00	14.00	NBR	SE-2667
R030950804	95.00	115.00	12	NBR	SE-1829
R030951001	95.00	120.00	12.00	NBR	SE-2249
R031000804	100.00	115.00	12	NBR	SE-1033
R031000806	100.00	118.00	10.00	NBR	SE-2464
R031006404	100.00	118.00	10.00	FKM	SE-2654
R031006406	100.00	120.00	12.00	FKM	SE-971
R031000807	100.00	125.00	13.00	NBR	SE-2504
R031006402	100.00	130.00	12	FKM	SF-697
R031006407	100.00	130.00	12.00	FKM	SF-2634
R031006403	100.00	130.00	13	FKM	SF-531
R031010901	101.60	127.50	12.70	NBR	SF-2422
R031056401	105.00	130.00	13	FKM	SF-1172
R031050804	105.00	140.00	13.00	NBR	SF-178
R031071007	107.95	139.70	10.30	NBR	SF-1793
R031100807	110.00	140.00	12.00	NBR	SF-1908
R031106401	110.00	140.00	13	FKM	SF-1379
R031100805	110.00	140.00	14	NBR	SF-1364
R031100804	110.00	140.00	15	NBR	SF-1087
R031100802	110.00	145.00	12	NBR	SF-820
R031100808	110.00	150.00	18.00	NBR	SF-2178
R031110801	111.12	130.17	12.70	NBR	SF-240
R031150802	115.00	130.00	10	NBR	SF-821
R031150801	115.00	140.00	13	NBR	SF-548
R03115D501	115.00	150.00	12.00	HNBR	SF-1969
R031186401	118.00	140.00	16.00	FKM	SF-2824
R031200802	120.00	140.00	10.00	NBR	SF-2146
R031204301	120.00	150.00	13	SILICON	SF-1673
R031200803	120.00	150.00	15.00	NBR	SF-2294
R031200805	120.00	160.00	12.00	NBR	SG-175
R031201001	120.65	152.40	12.70	NBR	SG-1226
R031250804	125.00	145.00	12	NBR	SF-1573
R031250802	125.00	165.00	12	NBR	SG-616
R031300803	130.00	160.00	13.00	NBR	SG-1816
R031300802	130.00	160.00	15.00	NBR	SG-1715
R031300801	130.00	170.00	12.00	NBR	SG-1405
R031396401	139.70	190.50	12.70	FKM	SH-1352
R031404301	140.00	170.00	13.00	SILICON	SG-1246
R031400801	140.00	170.00	15	NBR	SG-598
R031406402	140.00	175.00	13.00	FKM	SG-1778
R031450801	145.00	170.00	13.00	NBR	SG-1638
R031450802	145.00	175.00	15.00	NBR	SG-1639
R031490801	149.22	181.17	12.70	NBR	SH-1603
R031500804	150.00	170.00	15	NBR	SG-637
R031500803	150.00	180.00	12	NBR	SH-507
R031500805	150.00	180.00	15.00	NBR	SH-1319
R031506401	150.00	180.00	18	FKM	SH-1082
R031586401	158.75	184.15	12.70	FKM	SH-1342
R031600803	160.00	180.00	12	NBR	SH-505
R031656402	165.00	178.00	7.00	FKM	SH-1423
R031656401	165.10	190.50	12.70	FKM	SH-1351
R031700803	170.00	200.00	12	NBR	SH-506
R031700804	170.00	200.00	15	NBR	SH-747
R031776402	177.80	203.20	12.70	FKM	SJ-934
R031771001	177.80	215.90	15.87	NBR	SJ-696
R031800804	180.00	195.00	10.00	NBR	SH-1667
R031800803	180.00	210.00	15.00	NBR	SJ-913
R032006402	200.00	230.00	12.00	FKM	SK-1093
R032006403	200.00	230.00	15.00	FKM	SK-1101
R032006401	200.00	230.00	15.00	FKM	SK-356
R032106402	210.00	240.00	15.00	FKM	SK-127
R032100801	210.00	240.00	18.00	NBR	SK-320
R032206601	220.00	250.00	15.00	FKM	SK-1114
R032200807	220.00	250.00	20.00	NBR	SK-900
R032200805	220.00	260.00	15.00	NBR	SM-670
R032200806	220.00	260.00	16.00	NBR	SM-715
R032406601	240.00	270.00	15.00	FKM	SM-881
R032450802	245.00	285.00	20	NBR	SN-510
R032480801	248.90	284.48	17.00	NBR	SN-199
R032506401	250.00	280.00	15.00	FKM	SN-678
R032506602	250.00	290.00	15.00	FKM	SN-871
R032596401	259.00	300.00	20	FKM	SN-437
R032600801	260.00	280.00	15	NBR	SN-281
R032600802	260.00	290.00	16.00	NBR	SN-669
R032600803	260.00	300.00	20.00	NBR	SN-732
R032706601	270.00	300.00	15.00	FKM	SN-870
R032804301	280.00	310.00	15.00	SILICON	SR-539
R032800801	280.00	310.00	16	NBR	SR-805
R032800802	280.00	315.00	16	NBR	SR-1118
R032806401	280.00	320.00	20	FKM	SR-1091
R032806403	280.00	320.00	20.00	FKM	SR-1654
R033256401	325.00	365.00	20	FKM	SR-723
R033300801	330.00	360.00	20.00	NBR	SR-1470
R033400801	340.00	380.00	15	NBR	SS-1704
R033450801	345.00	395.00	18.00	NBR	SS-2255
R033500801	350.00	390.00	20.00	NBR	SS-2348
R033606401	360.00	400.00	20	FKM	SS-2012
R034006401	400.00	425.00	15.00	FKM	SS-2541
R034100801	410.00	460.00	26.00	NBR	SS-3072
R034200801	420.00	460.00	20	NBR	SS-1703
R034200802	420.00	480.00	25.00	NBR	SS-2329
R034800801	480.00	530.00	25.00	NBR	SS-2349
R035920801	592.00	662.20	40.00	NBR	SS-1061
R036730801	673.10	711.20	25.40	NBR	SS-679

For customised items please Click here
