Profile : Standard Rotary Shaft Seals

Spareage : R04

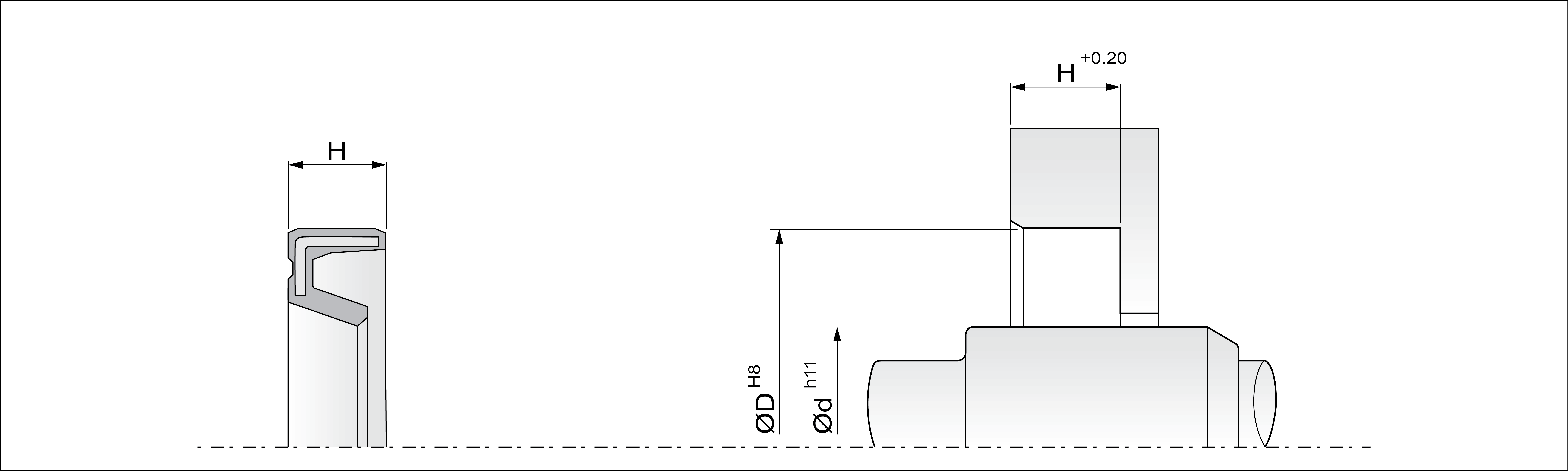

R04 Assembly
MATERIALS
NBR / MS
MAX OPERATING CONDITION
Pressure : 0.5 Bar
Temperature : -30° to +100°
Speed : 10 m/s

Manufactured by: Spareage Seals Limited
Product ID: 71i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
R0400308023.006.003NBR SB-2983
R0400308043.008.504NBR SB-6138
R0400308033.0010.004NBR SB-4907
R0400308013.0010.006NBR SB-2619
R0400408034.0010.005NBR SB-5568
R0400408014.0012.006.00NBR SB-4340
R0400464024.0014.004FKM SB-3158
R0400410024.2516.006NBR SB-2750
R0400408044.369.122.77NBR SB-5676
R0400408024.5012.003.50NBR SB-5559
R0400410044.7516.006NBR SB-2751
R0400564015.009.002NBR SB-233
R0400564015.0010.004FKM SB-3286
R0400508015.0012.005NBR SB-5682
R0400532015.0015.006EPDM SB-3026
R0400510025.2516.006NBR SB-2752
R0400510045.7516.006NBR SB-2753
R0400608096.0010.003NBR SB-6233
R0400664036.0011.003FKM SB-4606
R0400664086.0011.903FKM SB-6209
R0400608016.0012.002NBR SB-1883
R0400664076.0012.003FKM SB-6143
R0400608036.0012.003.5NBR SB-4322
R0400608026.0012.004NBR SB-1289
R0400664056.0014.004NBR SB-5287
R0400608086.0014.005NBR SB-5980
R0400608046.0014.007NBR SB-4395
R0400664016.0022.007FKM SB-3987
R0400610026.2516.006NBR SB-3013
R0400608066.3512.706.35NBR SB-5711
R0400664026.3515.874.95FKM SB-3338
R0400664066.3515.876.35FKM SB-6125
R0400608106.5014.506NBR SB-6297
R0400610046.7516.006NBR SB-3014
R0400764017.0013.004FKM SB-4273
R0400755017.0015.005.00ACM SB-7302
R0400708017.0016.003NBR SB-2657
R0400764027.0022.007FKM SB-3777
R040708027.7014.004.8NBR SB-3057
R0400708107.9014.306.3NBR SB-1559
R0400708057.9222.223.17NBR SB-5866
R0400708047.9314.283.17NBR SB-5689
R0400708037.9323.413.96NBR SB-5038
R0400808028.0012.003NBR SB-1939
R0400809018.0012.004NBR SB-4778
R0400808018.0014.003NBR SB-2988
R0400808068.0014.004NBR SB-5309
R0400808058.0014.005NBR SB-3681
R0400808078.0015.005NBR SB-5543
R0400808108.0016.003.00NBR SB-7278
R0400808098.0016.003.5NBR SB-6465
R0400864038.0016.004FKM SB-4059
R0400864068.0016.004.00FKM SB-4120
R0400864078.0016.005.70FKM SB-7205
R0400808048.0016.007NBR SB-3407
R0400808028.0018.007NBR SB-2064
R0400864068.0019.005FKM SB-5387
R0400864058.0022.005FKM SB-5388
R0400808088.0023.004NBR SB-5865
R0400864028.0026.007.00FKM SB-2840
R0400964049.0013.504.00FKM SB-6531
R0400964029.0016.005FKM SB-3536
R0400943019.0016.006SILICON SB-6294
R0400908049.0017.004NBR SB-3685
R0400908059.0019.005NBR SB-4009
R0400908079.0020.004NBR SB-4995
R0400908019.5214.282.38NBR SB-3184
R0400908069.5217.463.56NBR SB-4661
R0400964019.5217.483.58FKM SB-3166
R0400908039.5219.055.08NBR SB-3492
R0400908099.5219.055.55NBR SB-6736
R0400908089.5219.056.35NBR SB-5327
R0400908029.5516.503.2NBR SB-3254
R0400964039.8016.005FKM SB-4653
R04010082310.0014.002.00NBR SB-7305
R04010080310.0014.003NBR SB-2529
R04010081210.0014.503.5NBR SB-4781
R04010085210.0015.006NBR SB-2740
R04010081110.0016.002.4NBR SB-4656
R04010080410.0016.005NBR SB-2624
R04010100110.0016.006NBR SB-3272
R04010081910.0016.007.00NBR SB-6634
R04010080610.0016.505NBR SB-3050
R04010081510.0017.003NBR SB-5508
R04010081310.0017.006NBR SB-4919
R04010081710.0018.005.50NBR SB-6147
R04010080910.0018.006NBR SB-4496
R04010082110.0018.006.50NBR SB-6974
R04010081810.0018.008NBR SB-6260
R04010081610.0019.003NBR SB-5554
R04010084810.0019.005NBR SB-2200
R04010080810.0019.006NBR SB-4010
R04010082010.0019.006.50NBR SB-6962
R04010081010.0026.004NBR SB-4609
R04015640210.0028.004FKM SB-4643
R04011080911.0018.003NBR SB-5873
R04011080611.0018.004NBR SB-4719
R04011081111.0018.008NBR SB-6259
R04011080111.0019.003NBR SB-4164
R04011080711.0022.004NBR SB-4837
R04011081011.0917.553.17NBR SB-6115
R04011080811.5017.803.20NBR SB-5233
R04011080511.6021.206.5NBR SB-4423
R04012080512.0016.003NBR SB-2192
R04012082512.0016.005NBR SB-5521
R04012641012.0016.902.20FKM SB-7422
R04012083312.0017.004.00NBR SB-6577
R04012080412.0017.503.2NBR SB-1628
R04012080412.0018.003NBR SB-2335
R04012082112.0018.004NBR SB-5310
R04012082712.0018.004.50NBR SB-5831
R04012083612.0018.006.00NBR SB-7146
R04012080712.0019.003NBR SB-3331
R04012640212.0019.003FKM SB-3603
R04012640412.0019.006FKM SB-4188
R04012081712.0019.007NBR SB-5088
R04012082312.0019.008NBR SB-5442
R04012082612.0020.003NBR SB-5544
R04012083412.0020.004.00NBR SB-6952
R04012081312.0020.005NBR SB-4158
R04012083512.0020.006.00NBR SB-6957
R04012083212.0022.003.00NBR SB-6568
R04012080912.0022.004NBR SB-3865
R04012080812.0029.003NBR SB-3802
R04012082812.5019.005NBR SB-5958
R04012081912.5019.204NBR SB-5165
R04012082412.5020.005NBR SB-5501
R04012640612.5021.506.25FKM SB-5058
R04012640512.5022.008FKM SB-4437
R04012080612.6016.003NBR SB-2754
R04012081812.7019.005NBR SB-5153
R04012081412.7019.053.18NBR SB-1942
R04012081212.7019.056.35NBR SB-4129
R04012082212.7019.059.52NBR SB-2270
R04012430112.7021.406.3SILICON SB-4850
R04012081512.7021.437.93NBR SB-4793
R04012640712.7021.446.35FKM SB-5685
R04012083112.7021.446.75NBR SB-6538
R04012660112.7021.506.00FKM SB-7482
R04012083712.7021.596.35NBR SB-7320
R04012081012.7022.226.35NBR SB-3919
R04012081612.7022.227.93NBR SB-4792
R04012640912.7025.404.77FKM SB-6618
R04013080213.0019.003NBR SB-120
R04013080413.0019.004.00NBR SB-6792
R04013080113.0020.007.50NBR SB-5318
R04013080313.0021.006NBR SB-5915
R04013640113.0021.007.00FKM SB-6569
R04013080513.0026.003.00NBR SB-7109
R04014080514.0018.503.70NBR SB-2640
R04014080614.0019.003.00NBR SB-2828
R04014081914.0020.003.00NBR SB-7314
R04014081014.0020.003.20NBR SB-4178
R040140818914.0020.004.00NBR SB-7179
R04014640114.0020.005FKM SB-3028
R04014081614.0020.006.00NBR SB-6663
R04014081414.0020.007NBR SB-2071
R04014081714.0020.008.00NBR SB-6691
R04014080914.0021.003NBR SB-3944
R04014080714.0021.005NBR SB-3051
R04014081214.0021.008NBR SB-4720
R04014081114.0022.005NBR SB-4666
R04014081314.0025.008NBR SB-4721
R04014080814.3023.309NBR SB-3776
R04015080115.0020.005.00NBR SB-6586
R04015080515.0020.007NBR SB-4266
R04015640415.0021.003.00FKM SB-6558
R04015081515.0021.004.00NBR SB-4820
R04015080315.0022.003NBR SB-2783
R04015640515.0022.004.00FKM SB-6751
R04015640315.0022.005FKM SB-5894
R04015080915.0022.008NBR SB-5605
R04015081215.0023.003NBR SB-5848
R04015080415.0023.004.00NBR SB-3559
R04015080715.0023.005.00NBR SB-4447
R04015081115.0023.006NBR SB-5783
R04015081015.0023.508NBR SB-5627
R04015S80115.0024.007NBR SB-4775
R04015080815.0024.008NBR SB-4977
R04015081315.0025.003.00NBR SB-7229
R04015080615.0025.007NBR SB-4443
R04015081715.0031.123.10NBR SB-7477
R04015081615.7531.753.05NBR SB-7458
R04015080115.8720.622.61NBR SB-2043
R04015080315.8725.406NBR SB-2355
R04016083316.0022.003NBR SB-4163
R040160807 (Stock Item) 16.0022.004NBR SB-1861
R04016640116.0022.004FKM SB-3497
R04016110116.0022.005NBR SB-4755
R04016084116.0023.005.00NBR SB-6650
R04016083916.0023.007NBR SB-5496
R04016084016.0024.003NBR SB-6204
R04016080816.0024.004NBR SB-3846
R04016083716.0024.006NBR SB-4807
R04016083616.0025.005NBR SB-4722
R04016320116.0025.007EPDM SB-4127
R04016080616.0026.004NBR SB-2959
R04016083416.0028.004NBR SB-4444
R04016083516.0032.003NBR SB-4699
R04016080116.0032.007NBR SB-4810
R04016083816.0035.004.5NBR SB-4822
R04016640416.9025.406.35FKM SB-6367
R04017640117.0023.003FKM SB-3654
R04017080317.0023.003NBR SB-4042
R04017080117.0023.005.00NBR SB-2606
R04017081017.0023.007.00NBR SB-6552
R04017080717.0023.503.40NBR SB-5440
R04017080917.0024.004.30NBR SB-5914
R04017080617.0025.003NBR SB-1003
R04017080417.0025.005NBR SB-4156
R04017080817.0025.006NBR SB-5525
R04017640417.0026.003.00FKM SB-6508
R04017640517.0026.004.00FKM SB-6676
R04017080517.0027.007NBR SB-4438
R04017120117.0028.005.20NBR SB-3187
R04017640317.0032.007FKM SB-5600
R04017081117.0032.009.00NBR SB-6584
R04018080118.0024.003NBR SB-2078
R04018081318.0024.004NBR SB-5729
R04018081618.0024.005NBR SB-6368
R04018080418.0025.006NBR SB-3895
R04018080918.0025.007NBR SB-4788
R04018081418.0025.008NBR SB-5933
R04018080518.0025.505NBR SB-3934
R04018080618.0026.004NBR SB-4373
R04018081518.0026.004.50NBR SB-6164
R04018081218.0026.005NBR SB-5178
R04018081818.0026.005.70NBR SB-6760
R04018081718.0027.004NBR SB-3762
R04018A30118.0030.006NBR SB-2892
R04018040118.0030.007NBR SB-4906
R04018080218.3027.004NBR SB-3839
R04018080318.9426.974.4NBR SB-3861
R04019430119.0025.003.00SILICON SB-6503
R04019640119.0025.003.5FKM SB-4708
R04019080319.0025.005NBR SB-3316
R04019080619.0025.007NBR SB-5612
R04019080419.0026.007NBR SB-4723
R04019080519.0027.005NBR SB-4749
R04019080219.0525.403.17NBR SB-2719
R04020082220.0025.006.00NBR SB-7263
R04020081720.0025.007NBR SB-5880
R04020080120.0026.004NBR SB-540
R04020080120.0026.004NBR SB-5560
R04020082120.0026.004.00NBR SB-7140
R04020081620.0026.005NBR SB-5713
R0402008B420.0026.005.5NBR SB-2530
R04020080320.0026.006NBR SB-2905
R04020080720.0027.007NBR SB-3258
R04020081920.0027.503.80NBR SB-6689
R04020080920.0028.004NBR SB-1429
R04020080220.0028.004NBR SB-2130
R04020R10120.0028.005.00FKM SB-1138
R04020082020.0028.005.70NBR SB-6759
R04020084920.0028.006.30NBR SB-4999
R04020081020.0028.007NBR SB-4374
R04020640220.0030.003FKM SB-5237
R04020081320.0030.004NBR SB-4744
R04020081420.0030.004.5NBR SB-4808
R04020T90120.0032.007FKM SB-4001
R04020660120.0032.007FKM SB-7465
R04020640320.0035.007FKM SB-5601
R04021080121.0025.502.4NBR SB-2950
R04021080321.0027.004NBR SB-4724
R04021080121.0029.004NBR SB-2401
R04021080221.0029.005NBR SB-3702
R04021080521.0030.005.50NBR SB-6106
R04021640121.0030.007.00FKM SB-6637
R04022080422.0028.004NBR SB-172
R04022081422.0028.007NBR SB-4662
R04022082022.0028.009.00NBR SB-7351
R04022081022.0030.004NBR SB-586
R04022081722.0030.006NBR SB-5270
R04022081122.0030.008NBR SB-3797
R04022081922.0031.007.00NBR SB-6623
R04022081622.0032.005.50NBR SB-5102
R04022A30122.0034.006NBR SB-2891
R04022080122.0035.006NBR SB-1708
R04022080922.2029.504NBR SB-3550
R04022081322.2228.573.18NBR SB-4616
R04022081222.2231.759.52NBR SB-4005
R04022100122.2328.573.17NBR SB-1505
R04022081822.4028.005NBR SB-6298
R04022080822.9040.005.00NBR SB-2710
R04023080123.0028.003NBR SB-2322
R04023080223.0030.0010NBR SB-5840
R04023080123.5029.503.3NBR SB-4691
R04023080323.5030.005.00NBR SB-7490
R04024081024.0029.503.20NBR SB-7209
R04024080824.0030.007NBR SB-5890
R04024080924.0030.008.00NBR SB-6629
R04024080124.0031.004NBR SB-3537
R04024080424.0032.005NBR SB-2406
R04024080424.0032.006NBR SB-4786
R04024080524.0032.007NBR SB-5062
R04024080224.0032.008NBR SB-3907
R04024080324.0033.008NBR SB-4165
R04024080624.0034.004NBR SB-5090
R04024640124.0035.008FKM SB-5273
R04024S80124.2030.3010.00NBR SB-6790
R04024080324.8930.582.28NBR SB-2216
R04025082525.0030.004NBR SB-5754
R04025083025.0030.006.50NBR SB-6333
R04025080625.0030.007NBR SB-2961
R04025640225.0031.005FKM SB-4246
R04025T90125.0031.006.00FKM SB-7488
R04025082625.0031.008NBR SB-5834
R04025080225.0032.004NBR SB-1019
R04025410125.0032.004NBR SB-1430
R04025083125.0032.005NBR SB-6443
R04025081825.0032.006NBR SB-5021
R04025081125.0032.008NBR SB-3911
R04025082925.0032.009NBR SB-6136
R04027080425.0033.0010NBR SB-1395
R04025080325.0033.004NBR SB-1991
R04025640325.0033.005.50FKM SB-5239
R04025083325.0033.005.70NBR SB-6758
R04025082025.0033.006.50NBR SB-5094
R04025081525.0033.008NBR SB-4385
R04025082825.0035.003NBR SB-6137
R04025082325.0035.004NBR SB-1880
R04025660125.0035.007FKM SB-7466
R04025083525.0037.006.00NBR SB-6935
R04025082125.0037.007NBR SB-5103
R040250801425.0040.007NBR SB-4228
R04025083625.0047.005.00NBR SB-7408
R04025080925.0052.005NBR SC-3327
R04025082225.3035.006NBR SB-5160
R04025081025.4031.7512.7NBR SB-3805
R04025080725.4031.753.17NBR SB-2017
R04025081625.4031.753.18NBR SB-4615
R04025083225.4031.754.00NBR SB-6720
R04025081925.4031.756.35NBR SB-5071
R04025082725.4031.844NBR SB-6069
R04025081725.4033.206NBR SB-4830
R04025082425.4034.756.35NBR SB-5733
R04025081025.4038.107.93NBR SB-2354
R04025081225.4038.108.76NBR SB-4057
R04026080326.0031.003NBR SB-757
R04026080726.0032.004.00NBR SB-6850
R04026640126.0033.004FKM SB-3976
R04026080426.0034.004NBR SB-1840
R04026080326.0035.007NBR SB-4418
R04026080526.5037.304NBR SB-5346
R04026080626.6733.029.52NBR SB-6624
R04026100126.9434.926.35NBR SB-4239
R04027640127.0032.002.50FKM SB-4521
R04027081027.0033.003.00NBR SB-7043
R04027100227.0033.323NBR SB-3011
R04027110127.0033.353.2NBR SB-2294
R04027080927.0034.004NBR SB-5948
R04027080627.0036.006NBR SB-5105
R04027080827.0037.003NBR SB-5862
R04027100127.0037.003.1NBR SB-3012
R04027081127.0037.003.15NBR SB-7366
R04027640327.0037.003.2NBR SB-2970
R04027080527.0037.003.5NBR SB-4595
R04027640227.0037.203FKM SB-195
R04027450127.0037.203.30SILICON SB-5918
R04028083128.0034.007.00NBR SB-6514
R04028080128.0035.003NBR SB-2756
R0402808A928.0035.004NBR SB-329
R04028080728.0035.004.50NBR SB-2642
R04028082628.0035.005.20NBR SB-6139
R04028083028.0035.006NBR SB-6474
R04028081428.0035.008NBR SB-3903
R04028083528.0036.005.00NBR SB-7202
R04028660228.0036.007.00FKM SB-7207
R04028083428.0037.004.00NBR SB-6934
R04028083628.0037.007.00NBR SB-7248
R04028081228.0037.008NBR SB-3633
R04028083328.0038.004.00NBR SB-6903
R04028082428.0039.005NBR SB-5924
R04028083228.0039.005NBR SB-6591
R04028080928.0040.005NBR SB-3042
R04028100128.0042.004.7NBR SB-3189
R04028082728.1738.895NBR SB-6227
R04028640128.5035.002FKM SB-6197
R04028080628.5035.004NBR SB-1800
R04028082328.5035.005NBR SB-5881
R04028082128.5036.005NBR SB-5788
R04028080228.5040.005NBR SB-2374
R04028080828.5052.005NBR SC-2538
R04028082028.5639.004.50NBR SB-5356
R04028081028.5734.922.5NBR SB-3547
R0402808J228.5734.923.17NBR SB-5814
R04028081128.5739.005NBR SB-3548
R04028081928.5739.145NBR SB-105
R04028080228.5741.276.35NBR SB-3493
R04028081528.6041.806.50NBR SB-4078
R04028082528.8134.936.35NBR SB-6087
R04029080229.0035.004.00NBR SB-6904
R04029080329.0040.004.20NBR SB-7208
R04029080129.3653.983.96NBR SC-3172
R04030081430.0035.0010NBR SB-3910
R04030080430.0035.003NBR SB-755
R04030081630.0035.007NBR SB-4780
R04030640430.0036.004FKM SB-4703
R04030080430.0036.005NBR SB-2531
R04030081730.0036.007NBR SB-5009
R04030082430.0036.204.80NBR SB-6426
R04030082630.0036.504.80NBR SB-6940
R04030080630.0037.0010NBR SB-3025
R04030080630.0037.004NBR SB-1985
R04030080230.0037.004NBR SB-2250
R04030080530.0037.005NBR SB-2993
R04030640230.0037.007FKM SB-3321
R04030082130.0037.008NBR SB-5458
R04030081530.0038.0010NBR SB-4534
R04030081830.0038.004NBR SB-5230
R04030081030.0038.005NBR SB-3688
R04030081130.0038.006NBR SB-3896
R04030081930.0038.006.30NBR SB-149
R04030081330.0038.007NBR SB-3897
R04030080930.0038.506.5NBR SB-3335
R04030081230.0039.007NBR SB-3898
R04030100130.0040.003.8NBR SB-2821
R04030080330.0040.004NBR SB-1089
R04030080130.0040.004NBR SB-1915
R04030080830.0040.006NBR SB-3337
R04030082530.0040.006.00NBR SB-6936
R04030430130.0040.007SILICON SB-2625
R04030A30130.0042.006NBR SB-2893
R04030082030.0047.003.50NBR SB-1464
R04030640330.0047.004FKM SB-3683
R04030640730.0047.007FKM SB-5599
R04031040131.0041.004.00NBR SB-6487
R04031080231.0041.004.00NBR SB-7486
R04031080131.5041.507NBR SB-4811
R04031080931.6044.503.3NBR SB-3800
R04031081031.7538.103.17NBR SB-4622
R04031080431.7538.103.2NBR SB-2402
R04031100131.7538.105.00NBR SB-6982
R04031080631.8038.104.7NBR SB-892
R04032080732.0038.006NBR SB-4052
R04032081632.0038.904NBR SB-6157
R04032081132.0039.503.2NBR SB-4842
R04032081032.0040.004NBR SB-4829
R04032080932.0040.006NBR SB-4500
R04032081332.0040.008NBR SB-5535
R04032081532.0041.007NBR SB-5563
R04032081732.0041.904.50NBR SB-6158
R04032040132.0042.004NBR SB-6379
R04032040232.0042.604.20NBR SB-7428
R04032080832.0045.004NBR SB-1470
R04032081432.0045.005NBR SB-5555
R04032640132.0045.006.5FKM SB-4413
R04032081232.0052.005NBR SC-4422
R04033110133.0040.003NBR SB-2343
R04033080633.0040.004NBR SB-5845
R04033080833.0042.003.00NBR SB-6873
R04033100533.0046.003.80NBR SB-5328
R04033080733.0046.004NBR SB-6151
R04033080333.3039.673.2NBR SB-829
R04033640233.3045.904.80FKM SB-5962
R04033660133.3246.024FKM/BFT SB-5588
R04033660333.3439.683.50FKM SB-7254
R04033660233.3446.034.20FKM SB-7255
R04033100133.5046.004NBR SB-3020
R0433080133.5046.004NBR SB-537
R04033080533.7339.683.30NBR SB-5258
R04034080734.0040.004.00NBR SB-6849
R04034080534.0040.008NBR SB-4731
R04034080434.0042.0010NBR SB-4732
R04034040134.0042.604.20NBR SB-7513
R04034080234.0046.004NBR SB-2646
R04034080134.9244.456.34NBR SB-4284
R04035081135.0040.0010NBR SB-3153
R04035081135.0040.0010NBR SB-3541
R04035082735.0040.0012.00NBR SB-6628
R04035082635.0040.004.00NBR SB-6430
R04035081235.0040.005NBR SB-3639
R04035080435.0040.007NBR SB-224
R04035083035.0041.004.00NBR SB-6876
R04035083235.0042.002.50NBR SB-6931
R04035081335.0042.003NBR SB-3928
R04035640735.0042.003.00NBR SB-7294
R04035640135.0042.004NBR SB-2383
R04035100135.0042.004NBR SB-3179
R04035640635.0042.004FKM SB-6248
R04035082035.0042.005NBR SB-5022
R04035082235.0042.006NBR SB-5190
R04035081635.0042.008NBR SB-4709
R04035640835.0042.505.00FKM SB-7377
R04035081535.0043.006NBR SB-4203
R04035082135.0043.007NBR SB-381
R04035640335.0044.0010FKM SB-4951
R04035640135.0044.007FKM SB-3741
R04035083435.0045.003.00NBR SB-7342
R04035080435.0045.004NBR SB-1177
R04035080535.0045.005NBR SB-1982
R04035080935.0045.007NBR SB-3024
R04035A70135.0047.007NBR SB-2670
R04035100235.0048.004.7NBR SB-3188
R04035100335.0048.005.00NBR SB-7419
R04035640235.0052.003FKM SC-3914
R04035081935.0052.003.5NBR SC-4215
R04035081035.0055.007NBR SC-2756
R04035080735.0062.005NBR SC-2539
R04035081335.0062.009.4NBR SC-2297
12




For customised items please Click here
Sitemap Terms & Condition Privacy Policy Refund and Return Policy
GET THE MAX SPARE APP
IOS MAX SPARE APP
ANDROID MAX SPARE APP
Copyright 2021 by Max Spare Limited
