Max Spare : R05

Profile : Standard Rotary Shaft Seals

Details :

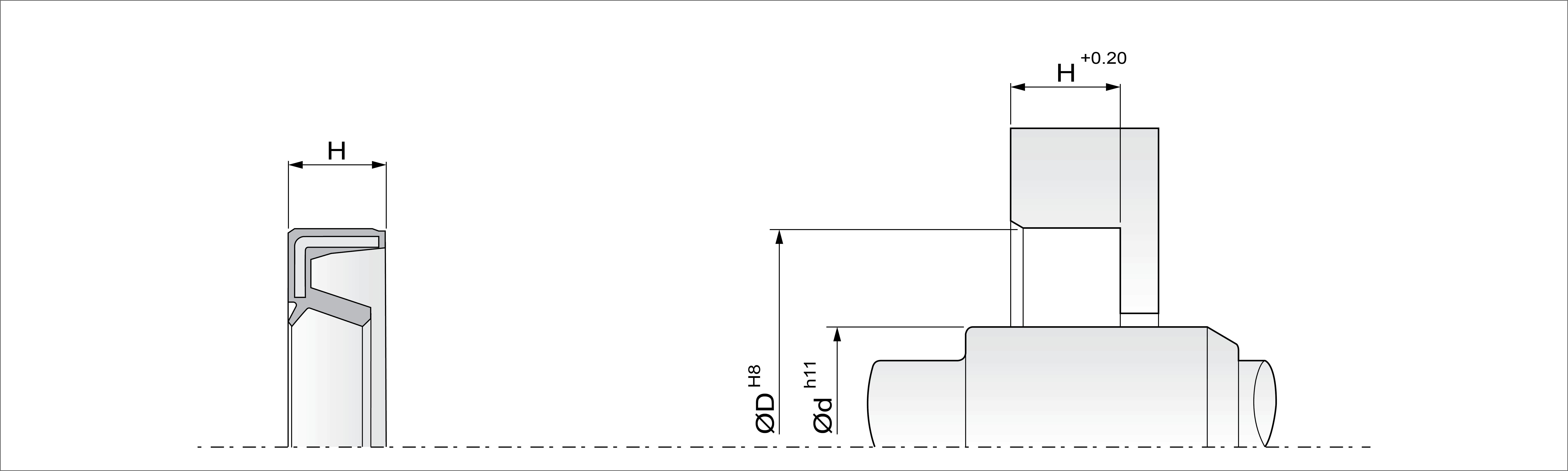

The R05 is similar to the R04 type rotary shaft seal but with an additional dust lip which is provided to avoid entry of light to medium dust and dirt

MATERIAL

NBR/MS

70/75 Shore A

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	10.0 Bar
Speed	:	5.0 m/s

SURFACE ROUGHNESS

The surface roughness of the housing bore shall be between Ra 1.6µm to Ra 3.2µm.

The seal contact surface of shaft shall be surface roughness between Ra 0.2µm to Ra 0.5µm.

COMPATIBILITY

Mineral oils, Grease

APPLICATION

Steel Mills
Ship Building
Pumps, Motors & Gear Box
Automotive Industries
Tool & Machine Industries

FEATURES

Easy to Installation
Perticularly robust static part
Highly wear resistant
Low Friction
Compatibility with the media to be seales
Any size upto 500mm available on request.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R050046402	4.00	12.00	4.00	FKM	SB-2799
R050050802	5.00	12.00	4	NBR	SB-5218
R050060801	6.00	11.00	4.50	NBR	SB-5308
R050060803	6.00	12.00	5.50	NBR	SB-9422
R050060804	6.00	14.00	5.00	NBR	SB-9646
R050066401	6.00	16.00	6	FKM	SB-5257
R050066402	6.00	18.00	5	FKM	SB-6310
R05006D501	6.00	19.00	4.00	HNBR	SB-8637
R050060802	6.30	19.00	3	NBR	SB-152
R050066403	6.35	12.85	3.175	FKM	SB-8059
R050070803	7.00	16.00	7.00	NBR	SB-9344
R050076402	7.00	16.00	8.00	FKM	SB-7264
R050070802	7.00	20.00	4.00	NBR	SB-8699
R050080802	8.00	14.00	4	NBR	SB-173
R050080803	8.00	15.00	3.00	NBR	SB-8767
R050086401	8.00	16.00	3.50	FKM	SB-7715
R050084301	8.00	16.00	4.00	SILICON	SB-4059
R050083201	8.00	16.00	5.50	EPDM	SB-2525
R050086402	8.00	16.00	6.00	FKM	SB-7716
R05008C101	8.00	18.00	5.00	XNBR	SB-7965
R050080804	8.00	22.00	4.00	NBR	SB-9546
R050090802	9.00	17.00	6	NBR	SB-5675
R050090803	9.00	17.50	4.00	NBR	SB-8808
R050092001	9.50	19.00	6.00	NEOPRENE	SB-7841
R050096401	9.50	19.00	8.00	FKM	SB-9516
R050106404	10.00	16.00	4.00	FKM	SB-9120
R050100802	10.00	16.00	5.00	NBR	SB-6560
R050106401	10.00	17.00	4	FKM	SB-6144
R050100803	10.00	18.00	5.00	NBR	SB-6828
R050106402	10.00	18.00	7.00	FKM	SB-7858
R050100806	10.00	19.00	5.50	NBR	SB-9475
R050100801	10.00	19.00	6	NBR	SB-5384
R050100805	10.00	19.00	6.50	NBR	SB-8653
R050116401	11.00	17.00	4.00	FKM	SB-2198
R050111001	11.70	19.10	4.65	NBR	SB-7765
R050120816	12.00	18.00	3.00	NBR	SB-9402
R050120812	12.00	18.50	4.50	NBR	SB-8638
R050120808	12.00	19.00	5.00	NBR	SB-7657
R050126403	12.00	19.00	5.00	FKM	SB-8590
R050126404	12.00	19.00	5.00	FKM	SB-8750
R050120809	12.00	20.00	10.00	NBR	SB-7820
R050126601	12.00	20.00	7.00	FKM	SB-7598
R050126405	12.00	21.00	3.00	FKM	SB-9000
R050126406	12.00	21.00	4.00	FKM	SB-9002
R050120811	12.00	28.00	10.00	NBR	SB-8580
R050120817	12.00	29.60	3.00	NBR	SB-9477
R050120805	12.40	18.00	6	NBR	SB-6025
R050120815	12.50	20.00	4.50	NBR	SB-9292
R050120814	12.50	20.00	6.30	NBR	SB-9293
R050126402	12.70	19.00	5.00	FKM	SB-4031
R050120806	12.70	19.02	4.19	NBR	SB-6122
R050120807	12.70	20.32	9.52	NBR	SB-7218
R050120813	12.70	21.50	6.40	NBR	SB-9191
R050120810	12.70	22.22	4.74	NBR	SB-7894
R050120804	12.70	22.22	6.35	NBR	SB-5654
R050134301	13.00	19.00	4	SILICON	SB-5643
R050136401	13.00	22.00	5.00	FKM	SB-8160
R050146403	14.00	19.00	5.00	FKM	SB-6522
R050146404	14.00	20.00	3.00	FKM	SB-8844
R050140801	14.00	20.00	3.2	NBR	SB-3750
R050140803	14.00	20.00	7.00	NBR	SB-7829
R050140806	14.00	20.00	8.00	NBR	SB-9437
R050141101	14.00	21.00	6.00	NBR	SB-6532
R050140805	14.00	22.00	3.00	NBR	SB-8426
R050140804	14.00	22.00	4.00	NBR	SB-8401
R050140802	14.00	23.00	4	NBR	SB-6243
R050143201	14.00	28.00	7.00	EPDM	SB-7663
R050156402	15.00	21.00	3.00	FKM	SB-7978
R050150806	15.00	21.00	4.00	NBR	SB-8012
R050150801	15.00	22.00	4	NBR	SB-123
R050150808	15.00	22.00	7.00	NBR	SB-8336
R050150809	15.00	22.50	6.00	NBR	SB-8809
R050150803	15.00	23.00	4.00	NBR	SB-7832
R050156404	15.00	23.00	5.00	FKM	SB-8540
R050150807	15.00	24.00	5.00	NBR	SB-8115
R05015T201	15.00	24.00	6.00	SILICON	SB-7350
R050156403	15.00	24.00	7.00	FKM	SB-8166
R050156405	15.00	24.00	9.00	FKM	SB-9297
R050150804	15.00	25.00	4.50	NBR	SB-7915
R050150802	15.00	26.00	7	NBR	SB-6196
R050150805	15.87	25.40	4.75	NBR	SB-7918
R050164301	16.00	22.00	4	SILICON	SB-6418
R050160805	16.00	22.00	5	NBR	SB-3027
R050166601	16.00	22.00	6.00	FKM	SB-6351
R050166403	16.00	24.00	3.00	FKM	SB-9090
R050161001	16.00	24.00	4	NBR	SB-5113
R050164302	16.00	24.00	5.00	SILICON	SB-7040
R050160807	16.00	24.00	5.50	NBR	SB-6705
R050166404	16.00	24.00	6.00	FKM	SB-2073
R05016T201	16.00	24.00	7.00	SILICON	SB-7720
R050171001	17.00	24.00	5.50	NBR	SB-7538
R050172001	17.00	24.00	7	NEOPRENE	SB-4195
R050170803	17.00	25.00	3	NBR	SB-6447
R050176601	17.00	25.00	6/6.50	FKM	SB-8216
R050170806	17.00	26.00	5.00	NBR	SB-8575
R050170804	17.00	26.00	6.00	NBR	SB-8086
R050170805	17.46	26.98	6.35	NBR	SB-8544
R050180804	18.00	24.00	3.00	NBR	SB-2708
R050186401	18.00	24.00	4	FKM	SB-6479
R050186403	18.00	24.00	7.00	FKM	SB-7056
R050180803	18.00	25.00	5.00	NBR	SB-7889
R050186404	18.00	25.00	7.00	FKM	SB-8765
R050186402	18.00	25.00	8.00	FKM	SB-6745
R050184301	18.00	26.00	4.00	SILICON	SB-8334
R050184303	18.00	26.00	4.50	SILICON	SB-9281
R050180802	18.00	26.00	5.00	NBR	SB-7626
R050184302	18.00	26.00	7.00	SILICON	SB-8645
R050190810	19.00	25.00	6	NBR	SB-883
R050196404	19.00	26.00	4.00	FKM	SB-9789
R050196403	19.00	26.00	5.00	FKM	SB-8528
R050196402	19.70	26.30	4.00	FKM	SB-8136
R050200806	20.00	25.00	8.00	NBR	SB-6621
R05020S801	20.00	26.00	4.00	NBR	SB-7138
R050206601	20.00	26.00	5.00/5.50	FKM	SB-216
R050200807	20.00	28.00	3.80	NBR	SB-6804
R050200808	20.00	28.00	4.00	NBR	SB-7172
R050206403	20.00	28.00	5.00	FKM	SB-6772
R050200804	20.00	28.00	5.70	NBR	SB-5001
R050206407	20.00	28.00	6.00	FKM	SB-2136
R050200814	20.00	28.00	7.00	NBR	SB-9029
R050206405	20.00	30.00	4.50	FKM	SB-7617
R050200801	20.00	30.00	5	NBR	SB-2104
R050200802	20.00	32.00	7	NBR	SB-3893
R050200809	20.00	35.00	3.00	NBR	SB-8118
R050200813	20.00	35.00	4.00	NBR	SB-8852
R05020D501	20.00	37.00	5	HNBR	SB-4039
R050200812	20.00	47.00	3.00	NBR	SB-8623
R050210802	21.00	25.50	3	NBR	SB-5003
R050210804	21.00	29.00	4.00	NBR	SB-2158
R050210803	21.20	27.50	6.70	NBR	SB-7364
R05021T901	21.50	31.00	7.00	FKM	SB-1053
R050220802	22.00	30.00	4	NBR	SB-6242
R05022T201	22.00	30.00	5.00	SILICON	SB-9044
R050226403	22.00	30.00	8.00	FKM	SB-2386
R050223201	22.00	34.00	7.00	EPDM	SB-2912
R050226402	22.00	40.00	7.00	FKM	SB-8828
R050230801	23.00	32.00	7.00	NBR	SB-8143
R050240803	24.00	30.00	7.00	NBR	SB-9491
R050240801	24.00	32.00	5.00	NBR	SB-7948
R05024S801	24.00	32.00	7.00	NBR	SB-9512
R050240802	24.00	35.00	6.00	NBR	SB-8766
R050256406	25.00	30.00	5.00	FKM	SB-6851
R05025T901	25.00	31.00	6.00	FKM	SB-7159
R050250811	25.00	32.00	10.00	NBR	SB-2751
R050256402	25.00	32.00	4	FKM	SB-5250
R050256403	25.00	32.00	5	FKM	SB-154
R050250806	25.00	32.00	7.00	NBR	SB-7274
R050256404	25.00	32.00	8	FKM	SB-5706
R050250809	25.00	33.00	4.00	NBR	SB-8394
R050252001	25.00	33.00	5.00	NBR	SB-6942
R050250807	25.00	33.00	7.00	NBR	SB-7698
R050250810	25.00	33.00	8.00	NBR	SB-8971
R050250802	25.00	34.00	6	NBR	SB-4289
R050256407	25.00	35.00	7.00	FKM	SB-8713
R050256410	25.00	40.00	4.00	FKM	SB-9105
R050250801	25.00	40.00	7	NBR	SB-3894
R050250808	25.00	52.00	4.50	NBR	SC-6917
R0502508H5	25.40	31.75	12	NBR	SB-5857
R050256409	25.40	31.75	3.17	FKM	SB-8872
R050260804	26.00	32.00	7.00	NBR	SB-8881
R050260803	26.00	34.00	4	NBR	SB-5454
R050270805	27.00	33.32	3.20	NBR	SB-6631
R050271001	27.00	35.00	6.00	NBR	SB-8036
R050270806	27.00	37.00	3.00	NBR	SB-6630
R050286403	28.00	35.00	5.00	FKM	SB-219
R050280808	28.00	36.00	4.00	NBR	SB-8642
R050280809	28.00	36.00	5.00	NBR	SB-9376
R050280805	28.00	38.00	4.00	NBR	SB-6970
R050280804	28.00	38.00	6.00	NBR	SB-6885
R050280806	28.00	47.00	4.50	NBR	SB-8074
R050280807	28.50	37.70	6.40	NBR	SB-8415
R050290802	29.00	37.00	5.00	NBR	SB-2798
R050290801	29.50	38.00	5.00	NBR	SB-8267
R050300802	30.00	36.00	5	NBR	SB-5176
R050300803	30.00	36.00	7	NBR	SB-5261
R050300801	30.00	37.00	4	NBR	SB-5124
R050306402	30.00	37.00	5.00	FKM	SB-7249
R050300806	30.00	38.00	5.00	NBR	SB-8309
R050300805	30.00	38.00	7.00	NBR	SB-6884
R050306404	30.00	40.00	3.00	FKM	SB-2573
R050306403	30.00	43.00	4.00	FKM	SB-7907
R050300804	30.00	47.00	7	NBR	SB-6195
R050310801	31.00	38.00	5	NBR	SB-6354
R050310802	31.75	38.10	3.17	NBR	SB-9497
R050311001	31.75	41.27	6.35	NBR	SB-7746
R05031T201	31.75	52.37	6.35	SILICON	SC-7450
R050326401	32.00	40.00	5.00	FKM	SB-8407
R050320801	32.00	40.00	7	NBR	SB-6089
R050320803	32.00	40.00	8.00	NBR	SB-9715
R050320402	32.00	45.00	7	NBR	SB-4038
R050320802	32.60	41.40	3.40	NBR	SB-8688
R050330801	33.00	40.00	3	NBR	SB-5651
R050336402	33.00	40.00	3.50	FKM	SB-5919
R050330804	33.00	40.00	8.00	NBR	SB-816
R050330802	33.00	46.00	4.00	NBR	SB-7768
R050341001	34.00	42.00	5.00/5.50	NBR	SB-9578
R050340802	34.76	47.19	4.00	NBR	SB-1365
R050350806	35.00	40.00	7	NBR	SB-5262
R05035L501	35.00	42.00	4	PU+NY	PPA-2787
R050350801	35.00	42.00	4	NBR	SB-4125
R050354301	35.00	43.00	8.00	SILICON	SB-8265
R050350808	35.00	60.32	6.35	NBR	SC-7364
R05035T201	35.00	62.00	13.00	SILICON	SC-6202
R050350807	35.00	62.00	4.00	NBR	SC-6096
R05035S801	35.00	70.00	8.00	NBR	SC-5936
R05036BF01	36.00	44.00	5.00	SILICON	SB-7964
R05038S801	38.00	45.00	3.50	NBR	SB-7470
R050380802	38.00	52.00	4.00	NBR	SC-7089
R050380801	38.10	46.03	4.76	NBR	SB-7808
R050390801	39.00	46.00	4.00	NBR	SB-7865
R050390802	39.00	46.00	8.00	NBR	SB-812
R050402001	40.00	45.00	8.00	NBR	SB-6941
R05040S801	40.00	47.00	4.00	NBR	SB-7137
R050400801	40.00	47.00	5	NBR	SB-4742
R050406405	40.00	47.00	7.00	FKM	SB-8641
R050400808	40.00	48.00	4.00	NBR	SB-9266
R050400803	40.00	48.00	8.00	NBR	SB-6890
R050406402	40.00	50.00	9.50	FKM	SB-6575
R050402002	40.00	56.00	8.00	NBR	SC-8284
R050400809	40.00	60.00	10.00	NBR	SC-8303
R050400802	40.00	62.00	7	NBR	SC-5345
R050410801	41.00	47.50	3.50	NBR	SB-6289
R050410901	41.00	51.00	5	NBR	SC-182
R050410802	41.27	50.80	6.35	NBR	SC-8307
R050426401	42.00	50.00	10.00	FKM	SB-8937
R050440801	44.45	57.15	4.77	NBR	SC-2587
R050450802	45.00	50.00	7.00	NBR	SB-6578
R050450803	45.00	52.00	10.00	NBR	SC-6681
R050454301	45.00	52.00	4	SILICON	SC-561
R050451001	45.00	52.00	4.00	NBR	SC-7282
R050450804	45.00	60.00	8.00	NBR/FABRIC	SC-140
R050502001	50.00	56.00	12.00	NEOPRENE	SC-6015
R050500803	50.00	58.00	4.00	NBR	SC-2557
R050500801	50.00	58.00	4.50	NBR	SC-5058
R05050S801	50.00	58.00	8.00	NBR	SC-7341
R050504302	50.00	68.00	8	SILICON	SC-3968
R050556402	55.00	63.00	5.00	FKM	SC-1003
R050556401	55.00	63.00	6	FKM	SC-5337
R050550802	55.00	72.00	4.00	NBR	SC-7136
R050570801	57.20	70.00	6	NBR	SC-5606
R050580801	58.00	65.00	10.00	NBR	SC-5769
R050586401	58.00	67.00	4.00	FKM	SC-6121
R050596401	59.00	68.00	4.80	FKM	SC-6344
R050600802	60.00	68.00	5.00	NBR	SC-6370
R050600801	60.00	68.00	8	NBR	SC-5373
R050620801	62.00	70.00	6.00	NBR	SC-6497
R050650801	65.00	72.00	10.00	NBR	SC-7081
R050656401	65.00	100.00	10.00	FKM	SD-419
R050680801	68.00	90.00	10.00	NBR	SD-4056
R050700801	70.00	83.50	8.50	NBR	SD-5357
R050720801	72.00	88.00	4.00	NBR	SD-5277
R050726402	72.00	91.00	4.80	FKM	SD-1805
R050730801	73.02	88.90	4.76	NBR	SD-4373
R050750801	75.00	90.00	8.00	NBR	SD-5631
R050800801	80.00	85.00	8.00	NBR	SD-3835
R050800802	80.16	104.77	12.30	NBR	SE-3079
R050846401	84.00	94.00	4.80	FKM	SD-4329
R050856401	85.00	98.00	8.35	FKM	SD-5552
R05085S801	85.00	100.00	13.00	NBR	SD-656
R050850801	85.00	105.00	13.00	NBR	SE-2298
R050886401	88.00	98.00	5	FKM	SD-3441
R05090S801	90.00	110.00	10.00	NBR	SE-2907
R050910801	91.00	100.00	12.00	NBR	SD-4778
R051140801	114.00	125.00	7.00	NBR	SE-3235
R051150801	115.00	140.00	12.00	NBR	SF-2069
R051236401	123.00	141.00	5.00	FKM	SF-2044
R051301001	130.00	160.00	12.00	NBR	SG-1669
R051656401	165.00	171.00	7.00	FKM	SG-234
R052351001	235.00	275.00	15.00	NBR	SM-672
R053100801	310.00	370.00	28.00	NBR	SR-1419

For customised items please Click here
