AIJ: Rotary Standard Seals Manufacturers, Suppliers, Exporters

Max Spare : R10

Profile : Standard Rotary Shaft Seals

MATERIALS
NBR / MS
MAX OPERATING CONDITION
Pressure : 0.5 Bar
Temperature : -30° to +100°
Speed : 10 m/s

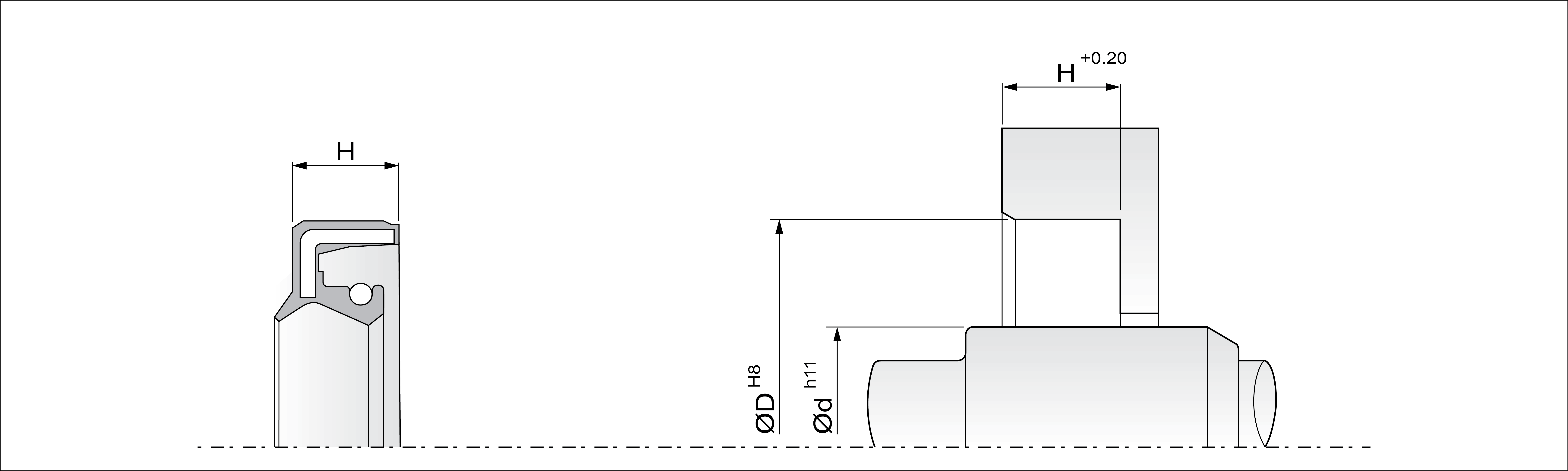

The AIJ is metal inserted , rubber covered ,spring loaded rotary shaft seal with wiping lip projected outside the groove which gives good wiping against high ingression of dust.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R100080801	8.00	16.00	6/7.5	NBR	SB-3406
R100110801	11.00	20.00	5.00	NBR	SB-9046
R100120801	12.00	22.00	6/6.50	NBR	SB-4899
R100150801	15.00	25.00	5/7	NBR	SB-5483
R100150803	15.00	26.00	5.00	NBR	SB-9045
R100150802	15.08	25.40	5.20/6.80	NBR	SB-5969
R10016U201	16.00	25.00	6	FKM	SB-6042
R100160801	16.00	30.00	6/7.5	NBR	SB-3098
R100161001	16.00	30.00	7.50	NBR	SB-5263
R100170802	17.46	28.58	5.80/6.30	NBR	SB-5305
R100176401	17.47	30.16	7.0/8.50	FKM	SB-5360
R100176501	17.47	30.16	7/8.00	FKM	SB-7198
R100170801	17.48	28.58	6.35/7	NBR	SB-4871
R10480180807	18.00	28.00	8	NBR	SB-2394
R10430180806	18.00	32.00	9	NBR	SB-208
R100190802	19.05	31.75	6.35	NBR	SB-5997
R100190801	19.05	34.60	6.30/7.30	NBR	SB-2973
R100200802	20.00	35.00	6.00/6.50	NBR	SB-6507
R100206601	20.00	38.00	8.00	FKM	SB-7987
R100220801	22.00	32.00	7	NBR	SB-2277
R100221001	22.00	35.00	7/8	NBR	SB-3140
R100226402	22.00	46.65	10.50	FKM	SB-9114
R100226401	22.20	34.00	6/7.50	FKM	SB-5027
R100251001	25.00	35.00	6/6.50	NBR	SB-5794
R100250802	25.00	36.00	7.5/9	NBR	SB-4604
R100256401	25.00	37.00	5.8/6.5	FKM	SB-4716
R100250806	25.00	40.00	10.00	NBR	SB-8608
R100251002	25.00	40.00	9	NBR	SB-6058
R100250803	25.00	42.00	6/6.30	NBR	SB-5306
R100250805	25.00	47.00	11	NBR	SB-6403
R100256404	25.00	47.00	11.00	FKM	SB-7798
R100250801	25.40	35.00	6.00/6.60	NBR	SB-3808
R100256402	25.40	35.00	6/6.50	FKM	SB-7178
R100250804	25.40	38.10	6.35	NBR	SB-5998
R100276401	27.00	42.00	7/10	FKM	SB-162
R100286401	28.00	57.50	10.00	FKM	SC-7732
R100300803	30.00	40.00	7/9	NBR	SB-3930
R10430300801	30.00	42.00	7	NBR	SB-2168
R100300805	30.00	47.00	7.50/9	NBR	SB-174
R100300806	30.00	50.00	10/15	NBR	SB-6141
R100300804	30.00	62.00	7	NBR	SC-4211
R100310801	31.75	47.62	7.60/10	NBR	SB-6057
R100316401	31.75	50.80	6.35	FKM	SC-5804
R10430330801	33.00	45.00	8	NBR	SB-2393
R100330801	33.00	55.00	8.00/13.00	NBR	SC-6551
R100340801	34.00	48.00	8.00/10.00	NBR	SB-8929
R10430350801	35.00	47.00	7	NBR	SB-1686
R100350803	35.00	47.00	7/9.00	NBR	SB-8897
R100350802	35.00	50.00	12.70/16.0	NBR	SB-7739
R10430380801	38.00	50.00	10	NBR	SB-2275
R100380802	38.00	52.00	7/8.5	NBR	SC-2745
R100386401	38.00	55.00	7.00/10.00	FKM	SC-7624
R100400801	40.00	52.00	8.5	NBR	SC-2412
R100406401	40.00	55.00	7/9.50	FKM	SC-5411
R10040D502	40.00	60.00	10	HNBR	SC-4014
R100410801	41.00	54.00	4	NBR	SC-5545
R100440801	44.00	55.00	8.00/13.00	NBR	SC-6550
R100450802	45.00	55.00	5	NBR	SC-4214
R100450801	45.00	62.00	9	NBR	SC-2918
R100456401	45.00	85.00	7/10	FKM	SD-2710
R100506401	50.80	72.00	8	FKM	SC-3726
R100500801	50.80	76.20	12/16	NBR	SD-2876
R100550801	55.00	90.00	10	NBR	SD-3594
R100571001	57.15	76.20	9.53	NBR	SD-1834
R100600801	60.00	80.00	7/7.50	NBR	SD-3081
R100620801	62.00	93.00	12.0/16.0	NBR	SD-3264
R100626401	62.00	120.00	8/12	FKM	SE-1394
R100686401	68.00	90.00	10.00	FKM	SD-4112
R100706601	70.00	90.00	7.00	FKM	SD-3821
R100700801	70.00	104.00	10.00/14.50	NBR	SE-2784
R100756401	75.00	120.00	8	FKM	SE-1678
R100800802	80.00	100.00	7.80	NBR	SD-3105
R100800801	80.00	105.00	5	NBR	SE-1652
R100806401	80.00	105.00	7.50/8.50	FKM	SE-2871
R100876401	87.29	107.95	9.52	FKM	SE-2126
R100900801	90.00	130.00	12	NBR	SF-462
R100954301	95.00	120.00	13	SILICON	SE-1594
R100950802	95.00	130.00	12.00	NBR	SF-1993
R100950801	95.00	130.00	16	NBR	SF-1007
R101000802	100.00	125.00	12.00/16.00	NBR	SE-2751
R101000801	100.00	125.00	13	NBR	SE-1776
R101001001	100.00	130.00	12/15	NBR	SF-1882
R101130801	113.00	160.00	13	NBR	SG-740
R101200801	120.00	170.00	14.00	NBR	SG-1479
R101251001	125.00	150.00	12	NBR	SF-1222
R101304301	130.00	160.00	15	SILICON	SG-916
R101336401	133.35	158.75	11/13	FKM	SG-1293
R101400802	140.00	170.00	15.00/20.00	NBR	SG-1801
R101400801	140.00	180.00	15	NBR	SH-710
R101606401	160.00	290.00	14.00	FKM	SN-707
R101650801	165.00	220.00	20	NBR	SJ-482
R101701001	170.00	190.00	8.50/9.50	NBR	SH-1128
R101856401	185.00	210.00	10	FKM	SJ-484
R10220D601	220.00	250.00	15	HNBR	SK-705
R10230D601	230.00	260.00	15	SPHN-80	SM-550
R102350801	235.00	275.00	15	NBR	SM-534
R102400801	240.00	280.00	18	NBR	SN-295
R102750801	275.00	310.00	15	NBR	SR-921
R102800801	280.00	324.00	20	NBR	SR-689
R103000801	300.00	340.00	15/20	NBR	SR-678
R10310D601	310.00	350.00	20	HNBR	SR-964
R103200801	320.00	360.00	18.3	NBR	SR-530
R10320D601	320.00	360.00	20	HNBR	SR-963
R103306401	330.00	370.00	14/19.50	FKM	SR-1479
R103750801	375.00	440.00	20	NBR	SS-1598
R103800801	380.00	424.00	20.5	NBR	SS-954
R104000801	400.00	430.00	12/16.00	NBR	SS-2605
R105046401	504.80	540.00	20	FKM	SS-1819
