AIK: Rotary Standard Seals Manufacturers, Suppliers, Exporters

Max Spare : R11

Profile : Standard Rotary Shaft Seals

MATERIALS
NBR / MS
MAX OPERATING CONDITION
Pressure : 0.5 Bar
Temperature : -30° to +100°
Speed : 10 m/s

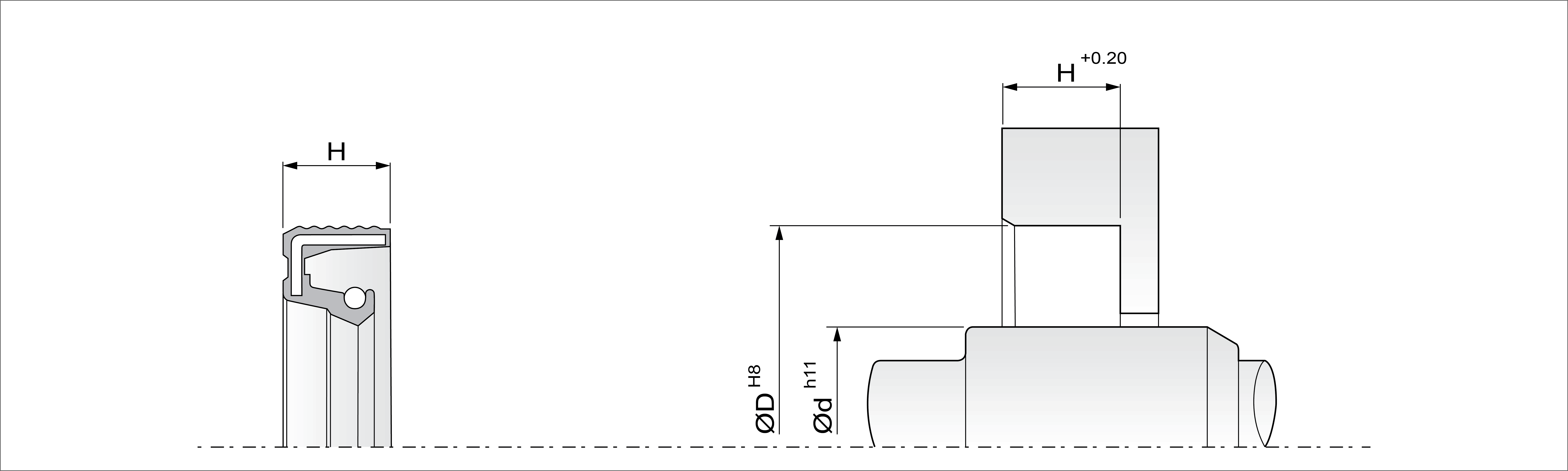

The AIK is metal inserted , rubber covered spring loaded seal with additional serration on outer diameter to assure sealing in the housing bore .

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R110080801	8.00	22.00	6	NBR	SB-3322
R110086401	8.00	24.00	7	FKM	SB-3257
R110100801	10.00	16.00	4	NBR	SB-3110
R110106401	10.00	22.00	7	FKM	SB-6079
R110100802	10.00	25.00	5.00	NBR	SB-7760
R110120803	12.00	26.00	7	NBR	SB-5504
R110120802	12.00	32.00	7	NBR	SB-3323
R110120802	12.00	32.00	7	NBR	SB-3422
R110120804	12.70	22.22	7.92	NBR	SB-6380
R110156401	15.00	24.00	7	FKM	SB-5773
R110166402	16.00	24.00	6.00	FKM	SB-6352
R110166401	16.00	24.00	7	FKM	SB-5114
R110170801	17.00	28.00	6	NBR	SB-4182
R110170802	17.00	30.00	7.00	NBR	SB-5885
R110180801	18.00	28.00	7	NBR	SB-5912
R110180802	18.00	30.00	6.00	NBR	SB-7357
R110206405	20.00	30.00	7	FKM	SB-6099
R110206406	20.00	31.00	7.30	FKM	SB-6119
R110206402	20.00	32.00	7	FKM	SB-3154
R110206403	20.00	35.00	7	FKM	SB-5115
R110206401	20.00	40.00	7	FKM	SB-3155
R110206404	20.00	47.00	7	FKM	SB-5982
R110226401	22.00	32.00	7	FKM	SB-5156
R110226402	22.00	40.00	7	FKM	SB-5981
R110240801	24.00	30.00	4.5	NBR	SB-4806
R110240805	24.00	36.00	9.00	NBR	SB-6964
R110240806	24.00	41.00	6.00	NBR	SB-7495
R110256401	25.00	40.00	7	FKM	SB-5116
R110250805	25.00	40.00	7.00	NBR	SB-7862
R110256405	25.00	42.00	6.00	FKM	SB-8103
R110256402	25.00	42.00	7	FKM	SB-5131
R110256403	25.00	47.00	7	FKM	SB-5326
R110250804	25.00	47.00	7.00	NBR	SB-7519
R110256404	25.00	47.00	8.50	FKM	SB-6100
R110266401	26.00	47.00	7.00	FKM	SB-6988
R110286402	28.00	40.00	7	FKM	SB-3245
R110286401	28.00	47.00	7	FKM	SB-3156
R110280802	28.00	52.00	7.00	NBR	SC-6441
R110306402	30.00	42.00	7	FKM	SB-3494
R110306404	30.00	45.00	8	FKM	SB-5457
R110300801	30.00	47.00	10.00	NBR	SB-6639
R110306405	30.00	47.00	7	FKM	SB-5531
R110300801	30.00	47.00	7.00	NBR	SB-7287
R110306401	30.00	62.00	7	FKM	SC-2986
R110326401	32.00	50.00	10	FKM	SB-5155
R110326402	32.00	52.00	7.00	FKM	SC-6947
R110340801	34.93	60.30	9.50	NBR	SC-5572
R110350802	35.00	47.00	7	NBR	SB-3677
R110350801	35.00	50.00	6	NBR	SB-3405
R110356402	35.00	50.00	7	FKM	SB-3347
R110350805	35.00	52.00	10.00	NBR	SC-5874
R110356401	35.00	52.00	7	FKM	SC-2523
R110350803	35.00	52.00	7.00	NBR	SC-5843
R110356405	35.00	55.00	7	FKM	SC-5159
R110366401	36.00	50.00	7	FKM	SB-5173
R110360801	36.00	52.00	7	NBR	SC-5428
R110386401	38.00	58.00	10	FKM	SC-3226
R110386402	38.00	60.00	6.50/8.30	FKM	SC-5742
R110406402	40.00	52.00	7	FKM	SC-3274
R110400807	40.00	55.00	6.00	NBR	SC-4034
R11006401	40.00	55.00	7	FKM	SC-2902
R110406403	40.00	55.00	8	FKM	SC-4007
R110406404	40.00	62.00	6	FKM	SC-4035
R110400806	40.00	62.00	7.00	NBR	SC-6268
R110400805	40.00	95.00	8.50	NBR	SD-3998
R110426401	42.00	55.00	6	FKM	SC-197
R110426404	42.00	55.00	8.00	FKM	SC-6717
R110420801	42.00	62.00	6	NBR	SC-4955
R110426402	42.00	62.00	7.00	FKM	SC-5711
R110456403	45.00	55.00	8	FKM	SC-4008
R110456406	45.00	60.00	10.00	FKM	SC-6638
R110450801	45.00	60.00	8	NBR	SC-4792
R110450804	45.00	62.00	7.00	NBR	SC-6546
R110456402	45.00	62.00	8.00	FKM	SC-3761
R110456404	45.00	65.00	10	FKM	SC-4780
R110456401	45.00	65.00	8	FKM	SC-2903
R11045T901	45.00	68.00	10.00	FKM	SC-6826
R110456405	45.00	85.00	10.00	FKM	SD-3875
R110486401	48.00	62.00	8	FKM	SC-3892
R110486402	48.00	63.00	6.50	FKM	SC-6405
R110486403	48.00	64.00	6.50	FKM	SC-6406
R110500803	50.00	62.00	7	NBR	SC-5457
R110506401	50.00	65.00	8	FKM	SC-2760
R110506601	50.00	68.00	7.00	FKM	SC-6796
R110500801	50.00	70.00	10	NBR	SC-2849
R110506402	50.00	70.00	8	FKM	SC-4527
R110506404	50.00	72.00	7	FKM	SC-5073
R110526402	52.00	68.00	8.00	FKM	SC-5752
R110526401	52.00	72.00	8	FKM	SC-5347
R110530801	53.84	82.55	10.80	NBR	SD-3759
R110550803	55.00	68.00	8.00	NBR	SC-6512
R110550801	55.00	70.00	8	NBR	SC-4988
R110550802	55.00	72.00	7.00	NBR	SC-6425
R110556401	55.00	72.00	8	FKM	SC-4009
R110550804	55.00	80.00	10.00	NBR	SD-4527
R110556402	55.00	80.00	8	FKM	SD-3287
R110556601	55.00	80.00	8	FKM	SD-3708
R110556403	55.00	80.00	8	FKM	SD-3711
R110556405	55.00	85.00	8.00	FKM	SD-4671
R110556404	55.00	100.00	12.00	FKM	SD-4013
R110570801	57.00	72.00	6	NBR	SC-5136
R110580801	58.00	72.00	8	NBR	SC-5281
R110606408	60.00	74.00	7.50	FKM	SC-4519
R110606404	60.00	75.00	10	FKM	SC-3903
R110606409	60.00	75.00	7.50	FKM	SC-5004
R110606401	60.00	75.00	8	FKM	SC-3126
R110606406	60.00	80.00	10	FKM	SD-2983
R110606402	60.00	80.00	7	FKM	SD-2246
R110606403	60.00	80.00	8	FKM	SD-2921
R110600801	60.00	85.00	10	NBR	SD-3351
R110606407	60.00	85.00	8	FKM	SD-3049
R110606405	60.00	90.00	10	FKM	SD-2640
R11060T901	60.00	100.00	10.00	FKM	SD-4691
R110626401	62.00	93.00	12	FKM	SD-3002
R110636401	63.00	85.00	10	FKM	SD-2632
R110630801	63.50	82.58	9.52	NBR	SD-3750
R110656403	65.00	85.00	10	FKM	SD-123
R110656401	65.00	85.00	12	FKM	SD-2605
R110656402	65.00	90.00	10	FKM	SD-2704
R110650801	65.00	95.00	10.00	NBR	SD-4291
R110650802	65.00	100.00	10.00	NBR	SD-4432
R110686401	68.00	85.00	10	FKM	SD-2323
R110700803	70.00	85.00	10	NBR	SD-1555
R110706403	70.00	85.00	10.00	FKM	SD-4026
R110706601	70.00	90.00	10.00	FKM	SD-2641
R110706402	70.00	100.00	10	FKM	SD-3399
R110290726401	72.00	95.00	10	NBR	SD-1110
R110750802	75.00	90.00	10	NBR	SD-3786
R110756601	75.00	95.00	10.00	FKM	SD-4017
R11075Q701	75.00	95.00	13	NBR	SD-2471
R110756401	75.00	95.00	9.5/10	FKM	SD-1705
R110750803	75.00	100.00	10.00	NBR	SD-4280
R110756402	75.00	100.00	13	FKM	SD-115
R110806401	80.00	100.00	10	FKM	SD-2178
R110800801	80.00	105.00	13	NBR	SE-1626
R110800803	80.00	110.00	10.00	NBR	SE-2428
R110846403	84.50	98.00	13	FKM	SD-3528
R110846401	84.50	107.00	13	FKM	SE-2054
R110846402	84.50	112.00	18	FKM	SE-2053
R110850801	85.00	110.00	10.00	NBR	SE-2426
R110906402	90.00	110.00	10	FKM	SE-1509
R110906401	90.00	110.00	12	FKM	SE-1297
R110906401	90.00	110.00	12.00	FKM	SE-2599
R110900802	90.00	115.00	10	NBR	SE-1289
R110900803	90.00	120.00	12	NBR	SE-1838
R110900801	90.00	140.00	13	NBR	SF-959
R110946401	94.00	104.00	13	FKM	SE-2062
R110950801	95.00	109.50	7.00	NBR	SE-2450
R110956403	95.00	110.00	12	FKM	SE-1749
R110956405	95.00	115.00	10.00	FKM	SE-2496
R110956401	95.00	115.00	12	FKM	SE-1508
R110956402	95.00	120.00	12	FKM	SE-1552
R110956404	95.00	125.00	13	FKM	SE-1823
R110966401	96.00	107.00	13	FKM	SE-2063
R111006402	100.00	120.00	12	FKM	SE-878
R111000802	100.00	120.00	8.00	NBR	SE-2429
R111006403	100.00	125.00	12	FKM	SE-1166
R111006401	100.00	130.00	12	FKM	SF-1698
R111006404	100.00	175.00	13	FKM	SG-1176
R111036401	103.00	122.00	10.00	FKM	SE-2282
R111100802	110.00	130.00	12	NBR	SF-1233
R111100801	110.00	130.00	12	NBR	SF-944
R111100803	110.00	140.00	14	NBR	SF-774
R111100804	110.00	150.00	12.00	NBR	SF-2062
R111156601	115.00	140.00	12.00	FKM	SF-687
R111200803	120.00	150.00	12	NBR	SF-1404
R111206401	120.00	150.00	13	FKM	SF-1672
R111200801	120.00	155.00	15	NBR	SG-603
R111250803	125.00	150.00	12	NBR	SF-1610
R111200804	125.00	150.00	15	NBR	SF-1523
R111256401	125.00	160.00	12	FKM	SG-1181
R111300801	130.00	160.00	15	NBR	SG-1108
R111306401	130.00	170.00	12	FKM	SG-717
R111356401	135.00	170.00	12	FKM	SG-704
R111400801	140.00	170.00	12	NBR	SG-1141
R111456601	145.00	175.00	15.00	FKM	SG-1539
R111606401	160.00	190.00	15	FKM	SH-986
R111706401	170.00	200.00	15	FKM	SH-754
R11180Q701	180.00	210.00	15	NBR	SJ-476
R112000802	200.00	230.00	15.00	NBR	SK-818
R11200	200.00	240.00	20	NBR	SK-351
R112100802	210.00	240.00	15	NBR	SK-716
R112150801	215.00	240.00	12.00	NBR	SK-372
R112206401	220.00	250.00	11	FKM	SK-373
R112200801	220.00	250.00	15	NBR	SK-644
R112300801	230.00	260.00	15	NBR	SM-566
R112406401	240.00	270.00	15	FKM	SM-323
R112906401	290.00	334.00	20	FKM	SR-569
R113406401	340.00	384.00	20	FKM	SS-1030
R114001101	400.00	440.00	19.50	NBR	SS-1961
