AIL: Rotary Standard Seals Manufacturers, Suppliers, Exporters

Max Spare : R13

MATERIALS
NBR / MS
MAX OPERATING CONDITION
Pressure : 0.5 Bar
Temperature : -30° to +100°
Speed : 10 m/s

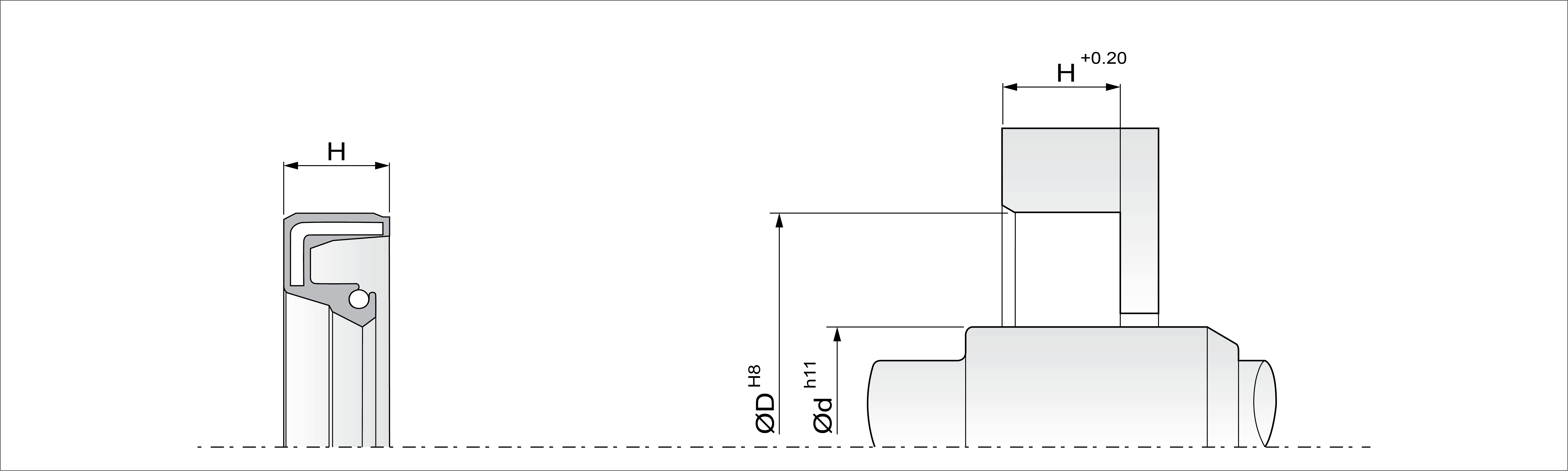

AIL is metal inserted,rubber covered and encapsulated spring within a lip which prevents spring from falling out during installation.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R130136401	13.45	26.97	7.25	FKM	SB-2714
R130320801	32.00	52.00	9	NBR	SC-5595
R130350801	35.00	58.00	6.00	NBR	SC-6893
R13350386401	38.10	52.38	9.52	FKM	SC-2275
R130386401	38.10	57.15	9.52	FKM	SC-3990
R130406401	40.00	62.00	7.00	FKM	SC-6737
R130470801	47.00	85.00	10	NBR	SD-1914
R130506401	50.00	63.00	5.50	FKM	SC-3788
R130576401	57.00	75.00	12	FKM	SC-2492
R130654301	65.00	95.00	13	SILICON	SD-2741
R130726401	72.00	85.00	7	FKM	SD-1866
R130766401	76.20	100.01	7.94	FKM	SE-1239
R130780801	78.00	110.00	13	NBR	SE-2107
R130804301	80.00	110.00	12	SILICON	SE-1696
R130804302	80.00	110.00	13	SILICON	SE-1779
R130906401	90.00	105.00	10	FKM	SE-1667
R130954301	95.00	120.00	12	SILICON	SE-933
R131000801	100.00	120.00	12	NBR	SE-390
R131004301	100.00	130.00	13	SILICON	SF-1499
R131056401	105.00	130.00	13	FKM	SF-1465
R1312004303	120.00	136.00	10	NBR	SF-1510
R131204301	120.00	150.00	13	SILICON	SF-1411
R131204302	120.00	150.00	13	SILICON	SF-1500
R131256401	125.00	145.00	13	FKM	SF-973
R131400801	140.00	160.00	13	NBR	SG-1423
R131470801	147.00	175.00	13	NBR	SG-734
R131850801	185.00	225.00	16.00	NBR	SJ-969
R132006401	200.00	226.00	16	FKM	SK-531
R132200801	220.00	260.00	16	NBR	SM-629
R132500801	250.00	290.00	16	NBR	SN-584
R132546401	254.00	285.75	15.87	FKM	SN-373
R313688603	368.30	412.75	15.87	FKM/FABRIC	SS-2160
R134121001	412.75	450.85	17.44/21.44	NBR	SS-1767
R134576401	457.20	508.00	25.40	FKM	SS-1720
R136900801	690.00	744.00	25	NBR	SS-2580
R137100801	710.00	760.00	20	NBR	SS-1799
R137360801	736.60	787.40	25.4	NBR	SS-524
R138500801	850.00	900.00	22	NBR	SS-1723
R138820801	882.00	933.00	22	NBR	SS-1722
R139330801	933.45	996.95	25.4	NBR	SS-523
R139990801	1009.65	1073.15	22.23	NBR	SS-577

For customised items please Click here
