ACF: Rotary Standard Seals Manufacturers, Suppliers, Exporters

Max Spare : R20

MATERIALS
NBR / MS
MAX OPERATING CONDITION
Pressure : 0.5 Bar
Temperature : -30° to +100°
Speed : 10 m/s

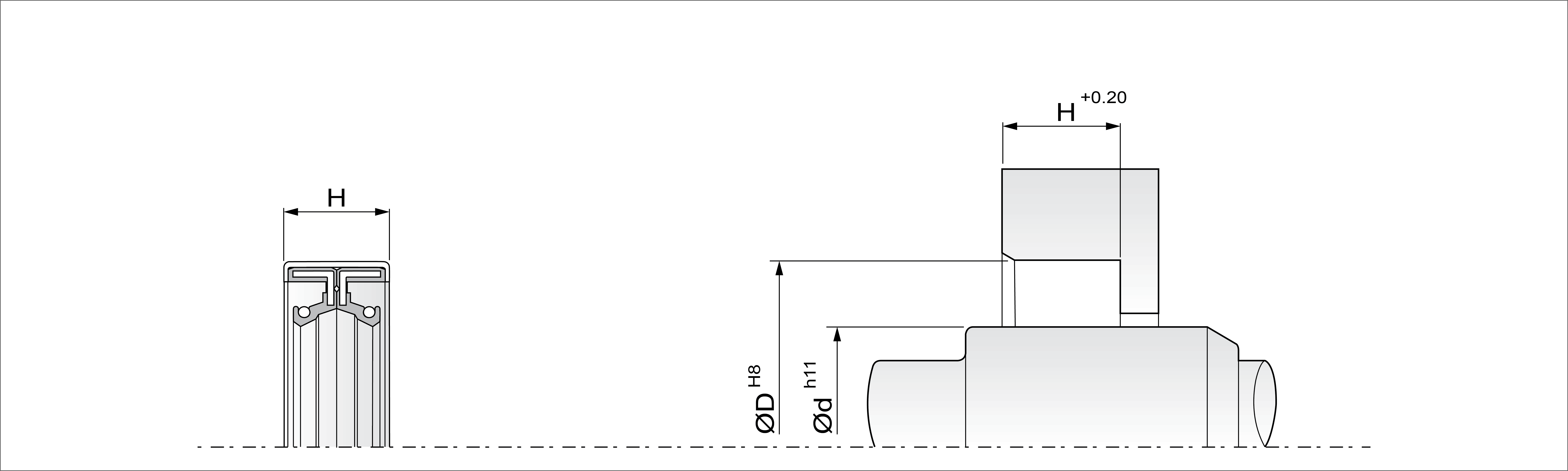

The ACF is also similar to ACE but is most suitable for large diameters because of its 2 Metal Cups.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R200170801	17.00	30.00	9	NBR	SB-3376
R200286601	28.50	45.00	8.50	FKM	SB-6498
R200321001	32.00	45.00	10.00	NBR	SB-6955
R200340801	34.92	57.15	9.52	NBR	SC-6803
R200410801	41.27	60.32	16.27	NBR	SC-5102
R200500801	50.00	72.00	13	NBR	SC-2670
R200530801	53.97	76.20	17.45	NBR	SD-5244
R200550801	55.00	78.00	18	NBR	SD-3098
R200751001	75.00	100.00	12	NBR	SD-3720
R200950805	95.00	120.00	17	NBR	SE-794
R201050802	105.00	133.00	8.5	NBR	SF-851
R201230801	123.82	152.40	23.01	NBR	SG-1369
R201500801	150.00	180.00	30	NBR	SH-450
R201556401	155.00	190.00	15	FKM	SH-519
R203401001	340.00	380.00	20	NBR	SS-2041
R204850801	485.00	516.00	9	NBR	SS-1689

For customised items please Click here
