Max Spare : R22

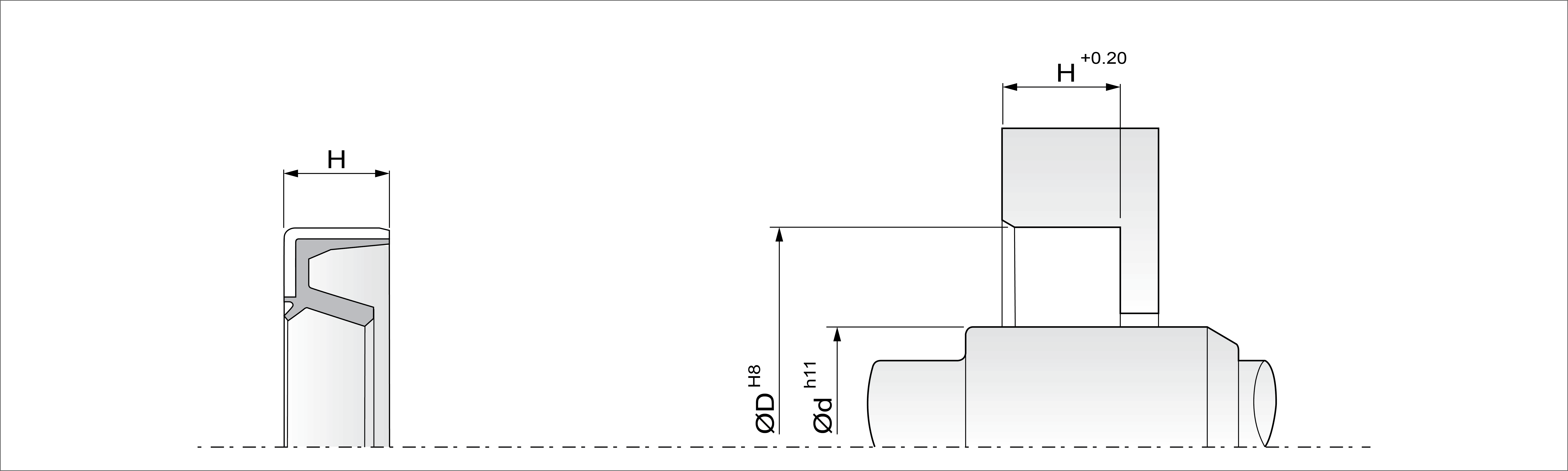

Profile : Standard Rotary Shaft Seals

Details :

The R22 is metal encased but with additional dust lip which is provided to avoid entry of light to medium dust and dirt.

MATERIAL

NBR/MS

70/75 Shore A

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	10.0 Bar
Speed	:	5.0 m/s

SURFACE ROUGHNESS

The surface roughness of the housing bore shall be between Ra 1.6µm to Ra 3.2µm.

The seal contact surface of shaft shall be surface roughness between Ra 0.2µm to Ra 0.5µm.

COMPATIBILITY

Mineral oils, Grease

APPLICATION

Steel Mills
Ship Building
Pumps, Motors & Gear Box
Automotive Industries
Tool & Machine Industries

FEATURES

Easy to Installation
Perticularly robust static part
Highly wear resistant
Low Friction
Compatibility with the media to be seales
Any size upto 500mm available on request.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R220123201	12.00	20.00	4.00	EPDM	SB-8825
R220120804	12.00	20.00	5.00	NBR	SB-8159
R220120801	12.00	21.00	4.00	NBR	SB-6926
R220120803	12.70	21.00	8.00	NBR	SB-8148
R220140801	14.00	20.00	4.00	NBR	SB-7036
R220146401	14.00	20.00	6.00	FKM	SB-7496
R220150801	15.00	21.00	3	NBR	SB-5514
R220160803	16.00	22.00	4.00	NBR	SB-8998
R220160802	16.00	24.00	6.00	NBR	SB-6692
R220160801	16.00	25.00	3	NBR	SB-5762
R220170801	17.00	23.50	3.4	NBR	SB-3546
R220170802	17.00	24.00	4.00	NBR	SB-8635
R220190801	19.00	25.50	5.00	NBR	SB-6425
R220196401	19.05	25.40	3.17	FKM	SB-8262
R220190802	19.05	28.57	4.76	NBR	SB-7944
R220190803	19.05	31.75	3.18	NBR	SB-8679
R220200803	20.00	26.00	4.00	NBR	SB-537
R220200801	20.00	28.00	4	NBR	SB-5760
R220251001	25.00	32.00	4	NBR	SB-4333
R220250801	25.00	40.00	4.00	NBR	SB-6719
R220260801	26.00	34.00	4.00	NBR	SB-6616
R220260802	26.00	38.00	6.00	NBR	SB-8505
R220271001	27.00	33.70	4.3	NBR	SB-2604
R220270802	27.00	35.00	6.00	NBR	SB-8272
R220280801	28.00	39.00	6.00	NBR	SB-8655
R220286401	28.57	38.10	4.74	FKM	SB-9184
R220301001	30.00	37.00	4	NBR	SB-5679
R220300802	30.00	40.00	6.00	NBR	SB-9631
R220330801	33.33	41.27	3.96	NBR	SB-7785
R220350801	35.00	42.00	5.00	NBR	SB-6980
R220351001	35.00	45.00	4	NBR	SB-4532
R220350802	35.00	48.00	5.00	NBR	SB-8417
R220360801	36.00	46.00	6.00	NBR	SB-8470
R220370802	37.00	42.00	4.80	NBR	SB-5338
R220370801	37.59	61.97	4.57	NBR	SC-4599
R220386401	38.10	52.32	3.04	FKM	SC-538
R220380802	38.10	57.15	3.17	NBR	SC-8106
R220380801	38.50	47.90	3.4/4	NBR	SB-5499
R22040S801	40.00	80.00	10.00	NBR	SD-1682
R220410801	41.00	54.00	4	NBR	SC-5432
R220410901	41.27	50.80	5.00	NBR	SC-6478
R220450802	45.00	57.00	10	NBR	SC-4808
R22050T901	50.80	66.72	7.92	FKM	SC-2432
R220540801	54.00	73.00	6.00/9.50	NBR	SC-2285
R220600804	60.00	67.00	4.00	NBR	SC-4207
R220600803	60.00	68.00	9	NBR	SC-3420
R220600805	60.00	78.00	7.00	NBR	SD-5168
R220620801	62.00	114.00	10/14.50	NBR	SE-2115
R220700801	70.00	82.00	4.00	NBR	SD-4904
R220760801	76.20	85.72	9.52	NBR	SD-3988
R220820801	82.55	107.95	9.52	NBR	SE-2265
R221056101	105.00	140.00	12.00	FKM	SF-2311
R221105501	110.00	140.00	8	ACM	SF-1589
R221306401	130.00	155.00	5.00	FKM	SG-1974
