Max Spare : R28

MATERIALS
NBR / MS
MAX OPERATING CONDITION
Pressure : 0.5 Bar
Temperature : -30° to +100°
Speed : 10 m/s

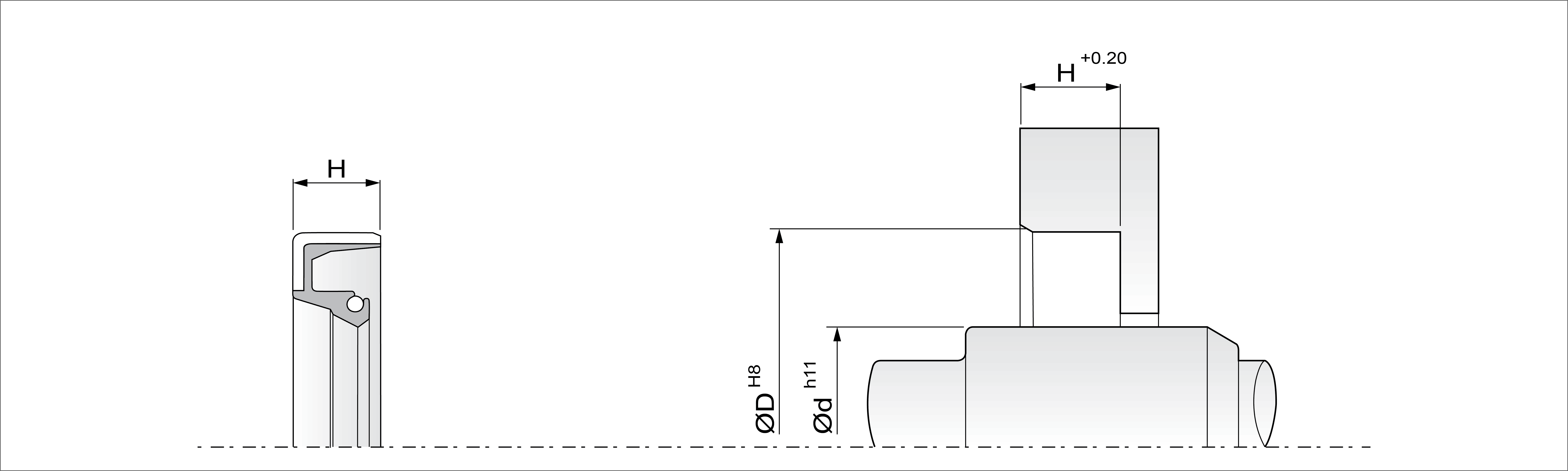

ACN is metal encased with encapsulated spring within a lip which prevents spring from falling out during installation.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R280250801	25.40	38.10	6.35	NBR	SB-8139
R280640801	64.00	80.00	10.00	NBR	SD-4198
R280901001	90.00	110.00	13	NBR	SE-942
R280906401	90.00	110.00	15.00	FKM	SE-2726
R281016401	101.60	127.00	11.91	FKM	SF-1547
R281050801	105.00	130.00	12	NBR	SF-1047
R281076401	107.21	133.35	15.87	FKM	SF-2211
R281154301	115.00	140.00	13	SILICON	SF-1800
R281270801	127.00	155.58	12.70	NBR	SG-1326
R281340801	134.95	161.93	12.70	NBR	SG-1216
R281436401	143.00	180.00	14.00	FKM	SH-1282
R281490801	149.22	174.63	12.70	NBR	SG-1273
R281581001	158.75	184.15	12.70	NBR	SH-1475
R281800801	180.00	210.00	15	NBR	SJ-470
R282000801	200.00	230.00	15	NBR	SK-342
R282200802	220.00	250.00	15	NBR	SK-746
R282200801	220.00	260.00	20	NBR	SM-588
R282700801	270.00	310.00	18	NBR	SR-1011
R282901001	290.00	330.00	18	NBR	SR-927
R283000801	300.00	360.00	25	NBR	SR-1100
R28317C101	317.50	349.25	15.87	XNBR	SR-774
R283200801	320.00	380.00	16	NBR	SS-766
R283600801	360.00	400.00	39.00	NBR	SS-2644
R284400801	440.00	480.00	20	NBR	SS-831
R235700801	570.00	620.00	22	NBR	SS-2582
R28610801	610.00	670.00	23	NBR	SS-2058
R286350801	635.00	685.00	20	NBR	SS-2581
R288700801	870.00	920.00	25.00	NBR	SS-2810
R289990802	1104.00	1155.00	22	NBR	SS-2366
R289990801	1136.00	1186.00	25	NBR	SS-2190
