R87: Rotary Face Sealing Shaft Seal Manufacturers, Suppliers, Exporters

Max Spare : R87

Profile : Standard Rotary Shaft Seals

Details :

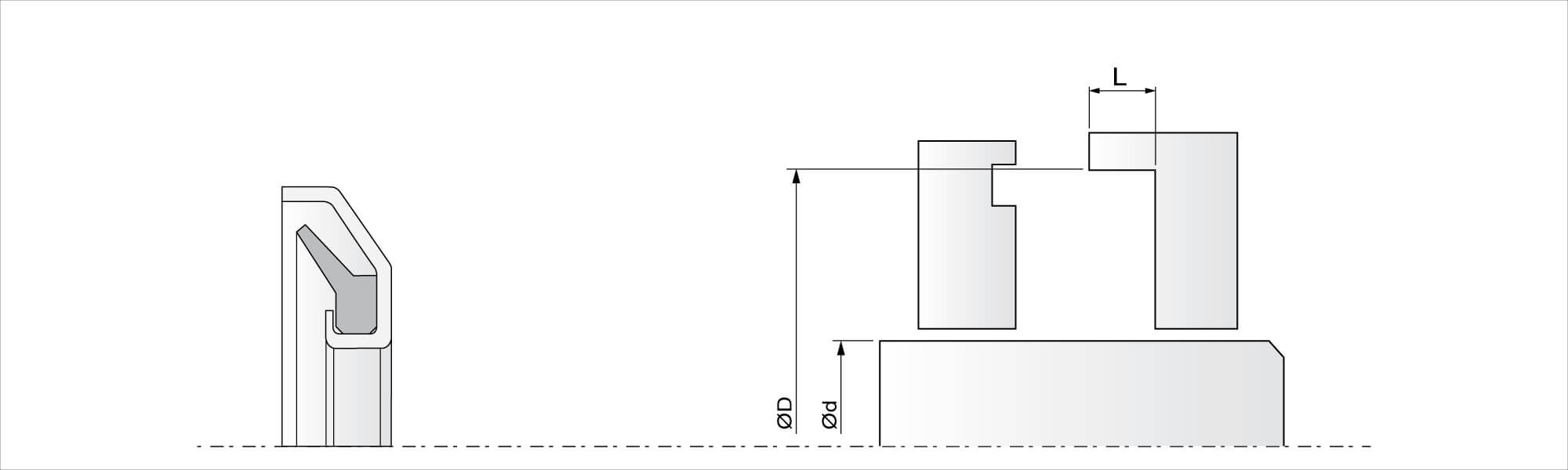

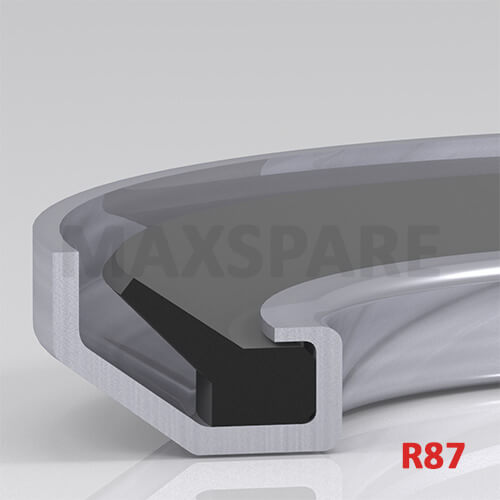

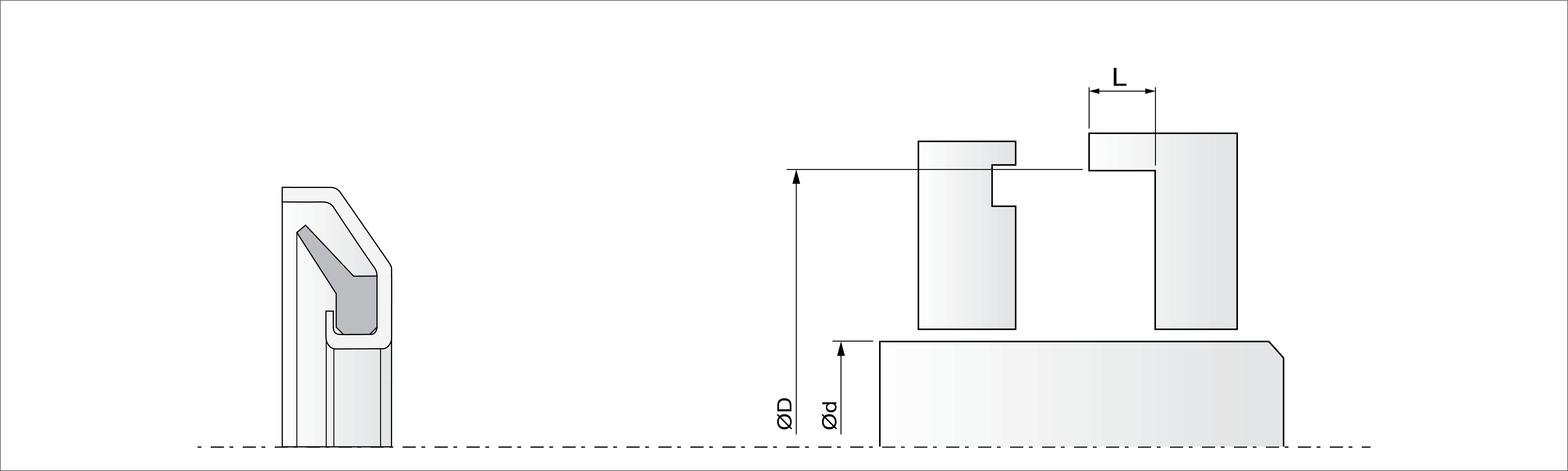

The R87 axial seals consist of an outer metal case and a moulded elastomer sealing element. It is engineered to rotate while maintaining its proper sealing function making it compatible in both dynamic and static application. The function of this seal is to protect housing from dirt, dust and splash water. This seal is spread on to the metal ring but nor bonded to it, an axial rim collar helps to hold the ring in place.

MATERIAL

Nitrile Rubber + Mild Steel

FKM + Mild Steel

(SS 304 / SS 316 on request)

OPERATING CONDITIONS

Temperature Range	:	NBR : -30°C to +100°C
		FKM : -30 C to + 220 C
Pressure	:	N.A.
Speed	:	20.0 m/s

COMPATIBILITY

Mineral oils, bio-oils, water-soluble & water-glycol fluids.

APPLICATION

Machine Tools, Electric motors, Gearboxes, Pumps, Construction Machinery, Agricultural machinery, Washing machines, Transmissions, Prop Shaft, etc.

FEATURES

The good dynamic sealing.
Easy Installation.
No additional axial block required.
Reliable protection against external contamination.
Good in combination with rotary shaft seals.
The metal ring protects the elastomer sealing element
against damage.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R870206401	20.00	37.00	4/6.00	FKM	SB-8289
R87020M101	20.00	37.00	6.00	HNBR	SB-8973
R870206402	20.00	48.00	4.50	FKM	SB-8702
R870254301	25.00	42.00	4/6	SILICON	SB-5765
R870304301	30.00	48.00	6	SILICON	SB-5339
R870304302	30.00	50.00	6/8	SILICON	SB-5764
R870356501	35.00	53.00	4.50/6.50	FKM	SC-2605
R87040M101	40.00	58.00	3.50/6.50	HNBR	SC-7440
R870404301	40.00	58.00	4.5	SILICON	SC-4170
R870406401	40.00	58.00	4.50	FKM	SC-7419
R870400801	40.00	58.00	4.50/6.50	NBR	SC-7315
R870406402	40.00	60.00	4.50	FKM	SC-7423
R870436401	43.30	65.30	7.50	FKM	SC-7885
R87045M101	45.00	63.00	3.50/6.50	HNBR	SC-7441
R870450801	45.00	63.00	4.5/6.00	SILICON	SC-4975
R870456401	45.00	63.00	4.50	FKM	SC-7421
R870502001	50.00	72.00	4.5/7.5	NEOPRENE	SC-3225
R87050M101	50.00	72.00	4.50/7.50	HNBR	SC-7442
R870506403	50.00	72.00	5.50	FKM	SC-7422
R870550801	55.00	77.00	5.50	NBR	SD-2745
R870556402	55.00	77.00	5.50	FKM	SD-5153
R870550802	55.00	77.00	5.50	NBR	SD-5160
R870600801	60.00	82.00	4.5/7.5	NBR	SD-2013
R87060M101	60.00	82.00	4.50/7.50	HNBR	SD-5166
R870606401	60.00	82.00	5.50	FKM	SD-5154
R870606402	60.00	82.00	7.50	FKM	SD-5155
R870650802	65.00	87.00	4.50/7.50	NBR	SD-4256
R870656401	65.00	87.00	5.5	FKM	SD-2746
R870656402	65.00	87.00	5.50	FKM	SD-5151
R870700803	70.00	92.00	4.5/7.5	NBR/FABRIC	SD-2689
R870700801	70.00	92.00	4.50/7.50	NBR	SD-2307
R870700804	70.00	92.00	4.50/7.50	NBR	SD-3260
R870706401	70.00	92.00	5.50	FKM	SD-3323
R870706402	70.00	92.00	5.50	FKM	SD-5152
R87075M101	75.00	97.00	7.50	HNBR	SD-5421
R870800801	80.00	102.00	7.5	NBR	SE-1450
R870850801	85.00	107.00	5.50	NBR	SE-2913
R87085M101	85.00	107.00	7.50	HNBR	SE-3031
R870900801	90.00	112.00	5.50	NBR	SE-1830
R870950801	95.00	117.00	5.50	NBR	SE-2660
R871006401	100.00	122.00	5.50	FKM	SE-1932
R871010801	101.50	122.00	5.50	NBR	SE-2775
R871050801	105.00	125.00	5.50	NBR	SE-2584
R871056402	105.00	143.00	5.50	FKM	SF-2357
R872040801	204.00	233.00	4.50/7.50	NBR	SK-122
