Profile : Standard Rotary Shaft Seals


Spareage : RA3

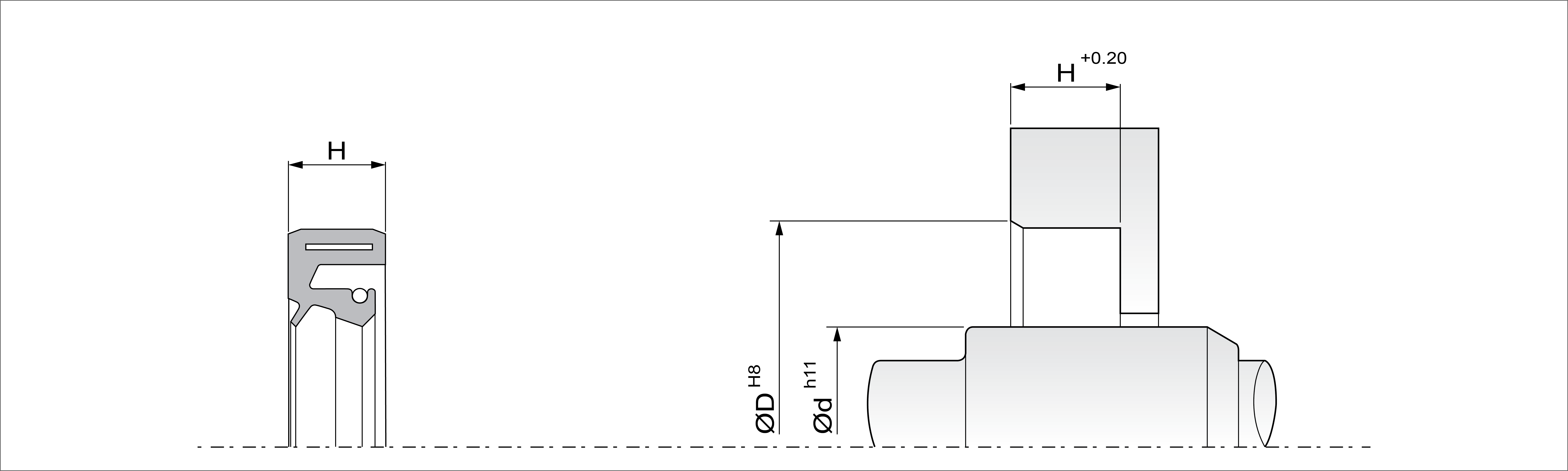

RA3 Assembly

Details :
RA3 seal is completely in a rubber body with a metal band inside. This seal also used for self retaining.The sealing lip is also pre-loaded with a garter spring an additional dust lip which is provided to avoid entry of light to medium dust and dirt.
MATERIAL
NBR/SS : 70/75 Shore A
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 0.5 Bar
Speed : 10.0 m/s
SURFACE ROUGHNESS
The surface roughness of the housing bore shall be between Ra 1.6µm to Ra 3.2µm.
The seal contact surface of shaft shall be surface roughness between Ra 0.2µm to Ra 0.5µm.
COMPATIBILITY
Mineral oils, Grease
APPLICATION
  • Steel Mills
  • Ship Building
  • Chemical industries
  • Food industries
FEATURES
  • Perticularly robust static part
  • Highly wear resistant
  • Over pressure requires the usage of endless seals
  • Any size upto 500mm available on request.

Manufactured by: Max Spare Limited
Product ID: 451i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
RA3050T50150.0060.007.00EPDM     SC-8053
RA3055080155.0083.0013.00NBR     SD-4884
RA3062640162.7088.3010.00FKM     SD-5633
RA3065080165.0090.0013.00NBR     SD-4182
RA31300801130.00160.0014NBR     SG-1499
RA31506401150.00180.0015.00FKM     SH-555
RA31656401165.00190.0014FKM     SH-1031
RA32660801266.70317.5019.05NBR     SR-1579




For customised items please Click here
