R57: Rotary Teflon Lip Seals (Sealing Solutions)

Max Spare : R57

Profile : Teflon Lip Seals

Details :

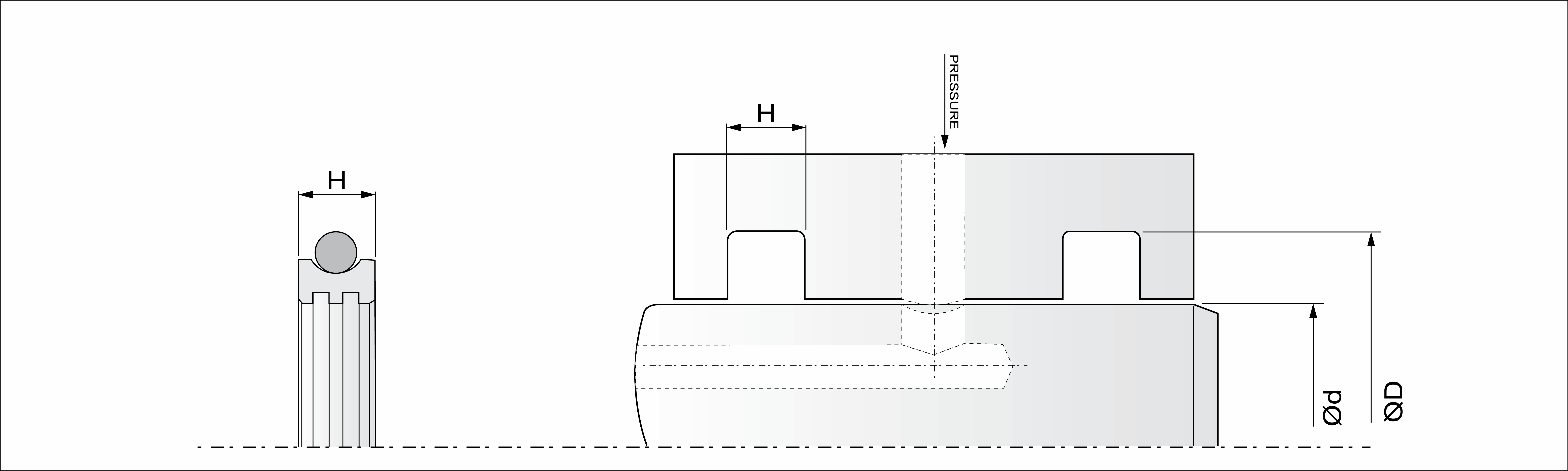

The R57 is a double-acting internal sealing rotary glyd ring for rotary joints that make rotating or swinging motion. This consists of one composite PTFE sealing ring and an elastomeric O-ring as a pre-load element. It is suitable for applications where the pressure alternate from one side of the seal to the other side.

MATERIAL

Seal ring :	Bronze filled PTFE (BFT)
	Carbon Filled PTFE (CAT)
	Virgin PTFE
O-Ring :	NBR 70/75 Shore

	A FKM 70/75 Shore A

OPERATING CONDITIONS

Temperature Range	:	NBR : -30° C to + 100° C
		FKM : -30 C to + 220 C
Pressure	:	300 Bar
Speed	:	2.0 m/s

SURFACE ROUGHNESS

Dynamic surface	:	0.05 - 0.2 µmRa
Static surface	:	=1.6 µmRa

COMPATIBILITY

Mineral oils, bio-oils, water-soluble & water-glycol fluids.

APPLICATION

Construction equipment, Hammer breaker, excavator, bulldozer, Hydraulic equipment, pneumatic cylinders, etc

FEATURES

Good efficiency due to low friction.
High abrasion resistance.
Excellent wear resistance and dimension stability.
No crawling and stick-slip free performance.
Simple groove and small sizes.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
R570056401	5.98	18.50	5.85	FKM/BFT	ATE-260
R570056401	5.98	18.50	5.85	FKM	FRA-6866
R570060801	6.00	17.00	4.20	NBR/BFT	ATE-275
R570086401	8.00	12.90	2.20	FKM/BFT	ATE-279
R570097003	9.10	14.00	2.20	NBR/BFT	ATE-263
R570097002	9.50	13.50	3.20	BFT	ATE-208
R570117001	11.00	15.90	2.20	NBR/BFT	ATE-142
R570126401	12.00	16.90	2.20	FKM/BFT	ATE-138
R570120801	12.00	16.90	2.20	NBR/BFT	ATE-162
R570147003	14.00	22.50	3.20	EPDM	CS-954
R570157001	15.00	19.90	2.20	NBR/BFT	ATE-187
R570150801	15.00	19.90	2.20	NBR/BFT	ATE-277
R570167001	16.00	20.90	2.20	NBR/BFT	ATE-247
R570166901	16.00	22.00	3.70	PTFE	ATE-265
R570177001	17.00	21.90	2.20	NBR/BFT	ATE-182
R570180802	18.00	22.90	2.20	NBR/BFT	ATE-217
R570186402	18.00	22.90	2.20	FKM/BFT	ATE-284
R570200801	20.00	27.50	3.20	NBR/BFT	ATE-156
R570200803	20.00	27.50	3.20	CAT	ATE-199
R570207001	20.00	30.70	4.20	NBR/BFT	ATE-262
R570220801	22.00	29.50	3.20	NBR/BFT	ATE-280
R570220802	22.00	29.70	3.20	PTFE	ATE-200
R570220803	22.00	40.00	8.50	NBR/BFT	ATE-252
R570247002	24.00	31.20	3.20	NBR/BFT	ATE-194
R570250801	25.00	32.50	3.20	NBR/BFT	ATE-107
R570250802	25.00	32.50	3.20	CAT	ATE-198
R570256401	25.00	32.50	3.20	FKM/BFT	ATE-273
R570256402	25.00	32.50	3.20	FKM/BFT	ATE-291
R570250805	25.00	32.50	3.20	PU	PUB-2183
R570250806	25.00	32.50	3.20	PU	PUB-239
R57025L501	25.00	33.00	2.93	PU	PUB-298
R570280801	28.00	35.50	3.20	NBR/BFT	ATE-125
R570297301	29.80	33.80	2.80	CAT	ATE-197
R570307302	30.00	34.00	3	CAT	ATE-195
R570300802	30.00	37.50	3.20	NBR/BFT	ATE-120
R570306401	30.00	37.50	3.20	FKM/BFT	ATE-145
R570306402	30.00	37.50	3.20	CAT	ATE-146
R57030T901	30.00	37.50	3.20	FKM	ATE-286
R570300805	30.10	35.00	2.20	NBR/BFT	ATE-153
R570327002	32.00	38.40	4.40	NBR/BFT	ATE-141
R570327001	32.00	39.50	3.20	NBR/BFT	ATE-123
R570320801	32.00	39.50	3.20	CAT	ATE-180
R570327302	32.00	40.00	6.35	CAT	ATE-222
R570320802	32.50	40.00	3.20	NBR/BFT	ATE-213
R570357004	35.00	41.50	3.80	NBR/BFT	ATE-237
R570357003	35.00	42.00	6.50	FKM/BFT	ATE-212
R570350803	35.00	42.50	3.20	NBR/BFT	ATE-109
R570350802	35.00	42.50	3.20	CAT	ATE-128
R570357002	35.00	42.50	3.20	NBR/BFT	ATE-129
R570350805	35.00	47.00	4.20	CAT	ATE-274
R570350804	35.00	52.00	6	NBR/BFT	ATE-251
R570360801	36.00	43.50	3.20	NBR/BFT	ATE-130
R570360802	36.00	43.50	3.20	NBR+PU	PUB-1274
R570367001	36.00	46.00	4.20	NBR/BFT	ATE-149
R570377901	37.10	47.25	4.55	NBR	ATE-294
R570386403	38.00	45.30	3.20	CAT	ATE-196
R570385901	38.00	49.00	4.20	PU	PUB-851
R57038Y501	38.00	53.50	6.30	PU	PUC-740
R570397001	39.00	45.00	3.20	NBR/BFT	ATE-188
R570390801	39.34	50.34	4.20	NBR/BFT	ATE-191
R570407003	40.00	46.00	4	NBR/BFT	ATE-243
R570400801	40.00	51.00	4.20	NBR/BFT	ATE-111
R570400802	40.00	51.00	4.20	CAT	ATE-114
R570406401	40.00	51.00	4.20	FKM/BFT	ATE-278
R57040L502	40.00	51.00	4.20	PU	ATE-282
R570400807	40.00	51.00	5.60	NBR/BFT	ATE-268
R57045L501	45.00	52.50	3.20	PU	PUC-490
R570456403	45.00	53.00	3.20	FKM/BFT	ATE-231
R570450802	45.00	55.00	4.20	NBR/BFT	ATE-216
R570450806	45.00	56.00	3.20	NBR/BFT	ATE-207
R570456401	45.00	56.00	4.20	FKM/BFT	ATE-113
R570457001	45.00	56.00	4.20	NBR/BFT	ATE-116
R570470802	47.30	55.00	5	CAT	ATE-158
R570487901	48.00	56.00	4.55	HYT-HYTREL	ATE-292
R570507301	50.00	57.00	3.20	CAT	ATE-179
R570500801	50.00	61.00	4.20	NBR/BFT	ATE-112
R570500805	50.00	61.00	4.20	CAT	ATE-205
R57050L501	50.00	61.00	4.20	PU	PUC-115
R57050L502	50.00	61.00	4.20	PU	PUC-1641
R570500806	50.00	61.80	6.20	NBR/FABRIC	ATE-267
R570520802	52.00	63.00	4.20	NBR/BFT	ATE-204
R570540801	54.00	65.00	4.20	NBR/BFT	ATE-118
R570550801	55.00	66.00	4.20	NBR/BFT	ATE-177
R570560805	56.00	66.00	4.20	CAT	ATE-178
R57056L501	56.00	66.50	4.20	PU	PUC-1587
R570560801	56.00	67.00	4.20	NBR/BFT	ATE-244
R570566001	56.00	67.00	4.20	CPU	ATE-257
R570570801	57.17	67.89	4.26	NBR/BFT	ATE-164
R570586404	58.00	68.70	4.20	FKM/BFT	ATE-272
R570586403	58.00	74.00	6.30	CAT	ATE-181
R570597002	59.00	70.00	4.20	NBR/BFT	ATE-202
R570597001	59.90	70.30	8.90	BFT	ATE-176
R570600806	60.00	69.90	6	NBR/BFT	ATE-227
R570600802	60.00	71.00	4.20	NBR/BFT	ATE-144
R570606406	60.00	71.00	4.20	FKM/BFT	ATE-160
R570600804	60.00	71.00	4.20	CAT	ATE-190
R570606405	60.00	71.00	4.20	FKM+PU	CS-1675
R570606410	60.00	71.00	4.20	PU	PUC-542
R570600805	60.00	75.10	6.30	NBR/BFT	ATE-152
R570600807	60.00	75.50	6.30	NBR/BFT	ATE-253
R570627001	62.00	71.00	7	BFT	ATE-266
R57063E302	63.00	73.00	7.60	BFT	ATE-289
R570630801	63.00	74.00	4.20	NBR/BFT	ATE-115
R570630803	63.00	74.00	4.20	CAT	ATE-157
R570630802	63.00	74.00	8.10	NBR/BFT	ATE-269
R57063J801	63.29	66.69	3.88	NYLON	PUC-572
R570650804	65.00	76.00	4.20	NBR/BFT	ATE-108
R570656402	65.00	76.00	4.20	FKM/BFT	ATE-185
R570657302	65.00	76.00	4.20	AFLAS	CS-239
R570650801	65.00	80.00	6.30	NBR/BFT	ATE-206
R570656401	65.00	80.50	6.30	FKM/BFT	ATE-161
R570680801	68.00	80.00	6.10	NBR/BFT	ATE-124
R570700801	70.00	81.00	4.20	NBR/BFT	ATE-117
R570700804	70.00	92.00	9.50	NBR/BFT	ATE-137
R57073J801	73.02	76.32	4.77	NYLON	PUD-406
R570750801	75.00	86.00	4.20	NBR/BFT	ATE-163
R570756401	75.00	88.30	5	FKM/BFT	ATE-241
R570750803	75.00	90.50	6.30	NBR/BFT	ATE-184
R57075GL01	75.00	90.50	6.30	PU	PUD-155
R57076E301	76.10	88.00	10	BFT	ATE-281
R570800802	80.00	87.60	3.35	NBR/BFT	ATE-169
R570800806	80.00	87.60	3.35	CAT	ATE-221
R570806601	80.00	90.00	6	FKM/BFT	ATF-170
R570807006	80.00	90.00	7.70	NBR/BFT	ATE-170
R570800803	80.00	91.00	4.20	NBR/BFT	ATE-174
R570807002	80.00	91.00	4.20	FKM/BFT	ATE-201
R570800808	80.00	91.50	3.50	NBR/BFT	ATE-256
R570806902	80.00	92.30	4.20	PTFE	ATE-229
R570806901	80.00	92.30	9.20	PTFE	ATE-230
R570800807	80.00	95.00	3.50	NBR/BFT	ATE-239
R570807005	80.00	95.50	6.30	NBR/BFT	ATE-136
R570800809	80.00	97.00	6	NBR/BFT	ATE-259
R570840802	84.00	95.00	4.20	NBR/BFT	ATE-234
R570857001	85.00	96.00	4.20	NBR/BFT	ATE-119
R570850802	85.00	101.10	6.30	CPU	ATE-183
R570907001	90.00	101.00	4.20	NBR/BFT	ATE-110
R570906401	90.00	101.00	4.20	FKM/BFT	ATE-132
R570907002	90.00	101.00	5	FKM/BFT	ATE-127
R570900802	90.00	102.00	4	NBR/BFT	ATE-218
R570907004	90.00	105.00	6.304	NBR/BFT	ATE-223
R570900801	90.00	105.50	6.30	NBR/BFT	ATE-219
R570900805	90.00	107.00	6	NBR/BFT	ATE-258
R57092GL01	92.40	107.90	6.30	PU	PUE-824
R570947001	94.75	100.95	3.90	BFT	ATE-154
R570950801	95.00	106.00	4.20	BFT	ATE-122
R570950804	95.00	107.00	4.20	NBR/BFT	ATE-285
R570956402	95.00	113.50	9.50	FKM/BFT	ATE-242
R570980801	98.00	108.00	4.80	NBR/BFT	ATE-283
R571000805	100.00	107.60	3.35	NBR/BFT	ATE-168
R571000806	100.00	107.60	3.35	CAT	ATE-220
R571000809	100.00	111.00	4.10	NBR	ATE-297
R571000804	100.00	111.00	4.20	NBR/BFT	ATE-139
R571000808	100.00	115.50	6.30	NBR/BFT	ATE-249
R57101J801	101.60	105.00	4.80	NYLON	PUE-229
R571057002	105.00	115.00	4.80	NBR/BFT	ATE-165
R571100801	110.00	121.00	4.20	NBR/BFT	ATE-135
R571107901	110.00	121.00	4.20	HYT-HYTREL	ATE-293
R571100804	110.00	130.00	10	NBR/BFT	ATE-214
R571146401	114.00	125.00	6.90	NYLON	PFC-200
R571157701	115.00	122.80	2.95	GLT	ATE-209
R571150801	115.00	126.00	4.20	NBR/BFT	ATE-238
R571200802	120.00	127.60	3.35	NBR/BFT	ATE-167
R571200801	120.00	131.00	4.20	NBR/BFT	ATE-103
R571257001	125.00	130.00	4.20	BFT	ATE-211
R571257002	125.00	136.00	4.20	NBR/BFT	ATE-225
R571256402	125.00	140.00	6.30	GRT	ATE-150
R571257004	125.00	140.00	6.30	FKM/BFT	ATE-261
R571306401	130.00	140.00	3.80	FKM/BFT	ATE-101
R571300801	130.00	141.00	4.20	NBR/BFT	ATE-151
R571320801	132.00	145.00	6	NBR+UHMW	ATE-134
R571350801	135.00	145.00	6	NBR/BFT	ATE-203
R571350802	135.00	146.00	6	NBR/BFT	ATE-215
R571350803	135.00	146.50	4.20	CAT	ATE-240
R571366401	136.00	146.00	5	FKM/BFT	ATE-147
R571407301	140.00	144.00	2.90	CAT	ATE-228
R571400802	140.00	151.00	4.20	NBR/BFT	ATE-126
R571400803	140.00	151.00	4.20	CAT	ATE-186
R571407002	140.00	155.50	6.30	FKM/BFT	ATE-290
R571460803	146.00	157.00	4.20	NBR/BFT	ATE-226
R571500801	150.00	160.00	4.20	NBR/BFT	ATE-287
R571507001	150.00	161.00	4.20	NBR/BFT	ATE-104
R571556401	155.00	163.00	5.85	FKM	FRB-184
R571600801	160.00	171.00	4.20	NBR/BFT	ATE-106
R571607303	160.00	171.00	4.20	CAT	ATE-248
R571607301	160.00	177.50	4.50	CAT	ATE-166
R571800801	180.00	191.00	4.20	GRT	ATE-189
R571800802	180.00	191.00	4.20	NBR/BFT	ATE-250
R571800805	180.00	191.00	4.20	CAT	ATE-254
R571810805	181.00	195.00	5.50	NBR/BFT	ATE-143
R571896601	189.90	192.90	9.50	PTFE	ATE-173
R571900802	190.00	201.00	4.20	NBR/BFT	ATE-105
R571900801	190.00	201.00	6.30	PTFE	ATE-133
R571900805	190.00	205.00	10	NBR	CS-2849
R571900810	190.00	207.00	6.30	NBR	CS-955
R571896601T	192.90	207.00	9.50	FKM	FRC-324
R572000803	200.00	215.50	6.30	CAT	ATE-193
R572000802	200.00	215.50	6.30	NBR/BFT	ATE-271
R572050801	205.00	216.00	4.20	NBR/BFT	ATE-270
R572200801	220.00	235.50	6.30	NBR/BFT	ATE-295
R572257001	225.00	234.00	5.70	BFT	ATE-236
R572400801	240.00	255.50	6.30	NBR/BFT	ATE-102
R57259L501	259.80	271.80	7.80	PU	ATE-246
R572756401	275.00	290.50	6.30	FKM/BFT	ATE-172
R572807001	280.00	301.00	8.10	NBR/BFT	ATE-210
R572957001	295.00	310.00	6.30	FKM/BFT	ATE-288
R573000801	300.00	315.50	6.30	NBR/BFT	ATE-276
R573000802	300.00	321.00	8.10	NBR/BFT	ATE-296
R573080801	308.00	335.00	7.60	PTFE	ATE-121
R573080802	308.00	335.00	7.60	PU	ATE-298
R573100801	310.00	331.00	8.10	NBR/BFT	ATE-233
R573108001	310.00	340.00	23.00	NBR	CS-571
R573207001	320.00	341.00	8.10	NBR/BFT	ATE-192
R573500801	350.00	371.00	8.10	NBR/BFT	ATE-232
R574006401	400.00	415.50	6.30	FKM/BFT	ATE-171
R574000801	400.00	421.00	8.10	NBR/BFT	ATE-255
R574400801	440.00	461.00	8.10	NBR/BFT	ATE-148
R574600801	460.00	481.00	8.10	NBR/BFT	ATE-155
R574900801	490.00	518.00	9.50	GRT	ATE-131
R575000801	500.00	521.00	8.10	NBR/BFT	ATE-245
R575300802	530.00	551.00	8.1	NBR/BFT	ATE-175
R575453201	545.00	566.00	8.10	GLT	ATE-224
R575500801	550.00	568.00	9.40	NBR/BFT	ATE-235
R575900801	590.55	615.69	8.94	CAT	ATE-264
R576007001	600.00	621.00	8.10	NBR/BFT	ATE-140
R576807401	680.00	708.00	9.50	GRT	ATE-159
