Profile : Teflon Lip Seals

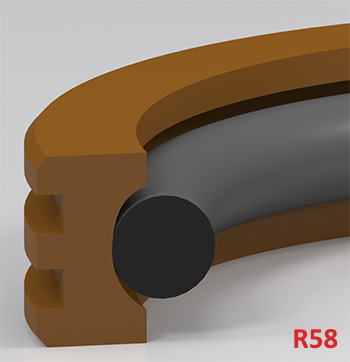

Spareage : R58

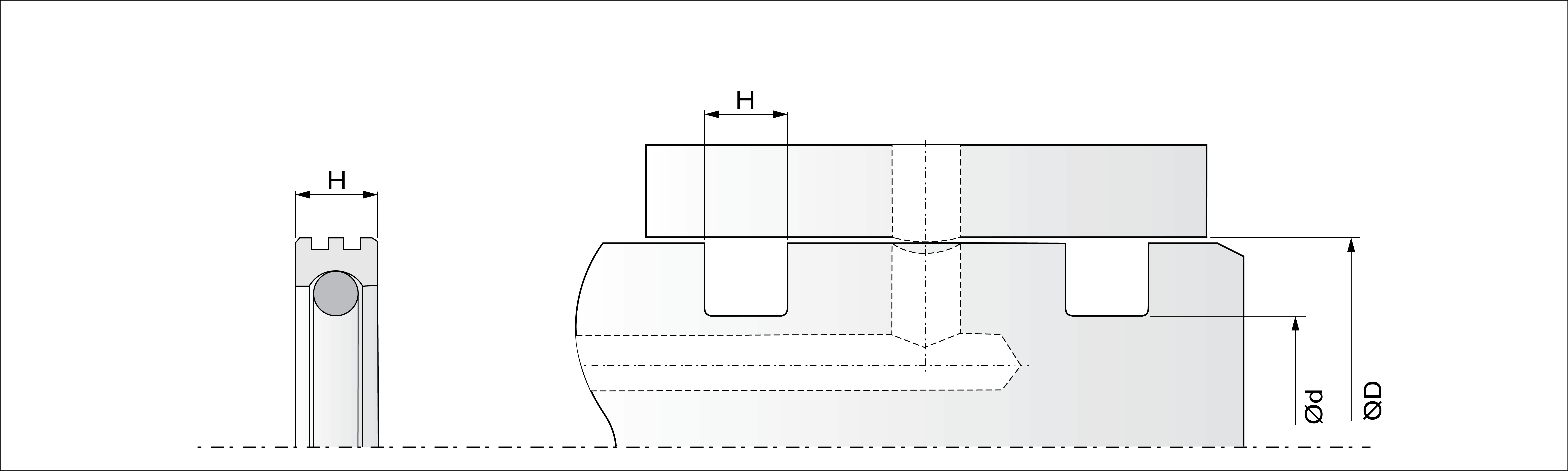

R58 Assembly

Details :
The R58 is a double-acting external sealing rotary glyd ring for rotary joints that make rotating or swinging motion. This consists of one composite PTFE sealing ring and an elastomeric O-ring as a pre-load element. It is suitable for applications where the pressure alternate from one side of the seal to the other side.
MATERIAL
Seal ring : Bronze filled PTFE (BFT)
Bronze filled PTFE (BFT)
Carbon Filled PTFE (CAT)
Virgin PTFE
O-Ring : NBR 70/75 Shore A
FKM 70/75 Shore A
OPERATING CONDITIONS
Temperature Range : NBR : -30° C to + 100° C
FKM : -30 C to + 220° C
Pressure : 300 Bar
Speed : 2.0 m/s
SURFACE ROUGHNESS
Dynamic surface : 0.05 - 0.2 µmRa
Static surface : ≤1.6 µmRa
COMPATIBILITY
Mineral oils, bio-oils, water-soluble & water-glycol fluids.
APPLICATION
  • Construction equipment, Hammer breaker, excavator, bulldozer, Hydraulic equipment, pneumatic cylinders, etc
FEATURES
  • Good efficiency due to low friction.
  • High abrasion resistance.
  • Excellent wear resistance and dimension stability.
  • No crawling and stick-slip free performance.
  • Simple groove and small sizes.

Manufactured by: Max Spare Limited
Product ID: 131i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
R58014080114.5022.003.20NBR/BFT     ATF-146
R58015080115.1020.002.20NBR/BFT     ATF-160
R58017080117.1022.002.20NBR/BFT     ATF-105
R58019080119.0025.003NBR/BFT     ATF-109
SG1020730120.0023.006CAT     GB-2080
R58020080720.1025.002.20NBR/BFT     ATF-102
R58023080223.7030.403.80NBR/BFT     ATF-144
SG1025810125.0029.0010PHENOLIC FABRIC     GB-2096
R58025080225.1030.002.20NBR/BFT     ATF-117
PG1029K20129.6032.008.85NYLON     GA-2316
R58030640130.0042.506.30FKM/BFT     ATF-141
R56030740530.0047.0010GRT     ATA-342
R58030080430.0047.006NBR/BFT     ATF-149
R58030080130.1035.002.20NBR/BFT     ATF-108
R58030080530.1035.002.20PTFE     ATF-162
R58030640230.1035.002.20PTFE     ATF-163
R58030080230.1035.002.20NBR/PU     PPA-1432
R58030080330.1035.502.20NBR/PU     PPA-1433
R58032080132.5040.003.20NBR/BFT     ATF-104
R58034080234.0040.003.70CAT     ATF-128
R58034080134.5042.003.20NBR/BFT     ATF-125
R58034640134.5042.003.20FKM/BFT     ATF-167
R58035700135.0042.503.20NBR/BFT     ATF-140
SG1036700136.0041.005.60BFT     GB-2049
R58037080137.5045.003.20NBR/BFT     ATF-124
R58040080140.5048.003.20NBR/BFT     ATF-123
R58042080142.5050.003.20NBR/BFT     ATF-116
SG1045700845.0051.004BFT     GB-2070
R58047080147.5055.003.20NBR/BFT     ATF-103
R58047080247.5060.006.20NBR/BFT     ATF-157
R58049080149.0060.004.20PU     PUC-215
PG1050701450.0057.206BFT     GA-2487
R58052080152.5060.003.20NBR/BFT     ATF-106
R58052660252.5062.006.00FKM     FRA-924
R58053660153.0062.006FKM/BFT     ATF-169
R58055080155.5063.003.20NBR/BFT     ATF-115
R58057080157.5065.003.20NBR/BFT     ATF-127
R58057640157.5065.003.20CAT     ATF-139
R58062080262.0080.006NBR/BFT     ATF-153
R58062080362.5070.003.20NBR/BFT     ATF-118
R58062080762.5075.006.50NBR/BFT     ATF-156
R58063080163.0074.004.20NBR/BFT     ATF-152
R58067080167.5075.003.20NBR/BFT     ATF-154
R58069080169.0080.004.20NBR/BFT     ATF-113
SG1070707070.0075.005.60BFT     GA-2414
R58074080174.0085.004.20NBR/BFT     ATF-165
R58079080179.0090.004.20NBR/BFT     ATF-112
R58082080182.0088.003.70CAT     ATF-129
R58083K10183.0088.902.93NYLON     PFB-994
R58084080284.0095.004.20NBR/BFT     ATF-142
P45084081084.00100.007.80BFT     PTA-834
R58084080184.50100.006.30NBR/BFT     ATF-130
R58084640184.50100.006.30FKM/BFT     ATF-145
R58088080188.90101.6012.06PTFE     ATF-164
R58089080189.00100.004.20NBR/BFT     ATF-151
R58089080389.00100.004.20NBR     CS-1139
RC8090U60190.00120.0011.60SILICON     ATD-137
R58094080194.00105.004.20NBR/BFT     ATF-119
R58099080199.00110.004.20NBR/BFT     ATF-126
R581006401100.00113.004.20FKM/BFT     ATF-136
R581000802100.00113.004.20CAT     ATF-147
R581040801104.00115.004.20NBR+PU     PUE-496
R581050801105.00116.004.20NBR/BFT     ATF-159
R581090801109.00120.004.20NBR/BFT     ATF-111
R581140801114.00125.004.20NBR/BFT     ATF-138
R581157001115.80127.004.06FKM/BFT     ATF-122
R581187001118.00132.004.00FKM/BFT     FRB-342
R581206401120.00132.004.00FKM/BFT     FRB-350
R58121K101121.00127.002.95NYLON     PFC-435
R581220801122.00134.004.20NBR/BFT     ATF-137
R581220803122.00135.004.20CAT     ATF-148
R58122K101122.70127.004.76NYLON     PFC-434
R581240801124.50140.006.30NBR/BFT     ATF-131
R581297301129.00140.004.20CAT     ATF-150
R581350801135.00146.004.20NBR/BFT     ATF-158
R581406601140.00160.006.30FKM/BFT     ATF-121
RC81400801140.00170.0013CAT     ATD-135
R581447001144.50160.006.30FKM/BFT     ATF-107
R581440801144.50160.006.30NBR/BFT     ATF-114
R581640801164.50180.006.30CAT+NBR     ATF-120
R581686401168.00175.004.20FKM     FRB-185
R581740801174.50190.006.30NBR/BFT     ATF-132
R58175J801175.65179.705.95NYLON     PFC-116
R581840801184.50200.006.30NBR/BFT     ATF-110
SG11938101193.65200.0019.05PHENOLIC FABRIC     GB-2071
R581990801199.00215.006NBR/BFT     ATF-133
R582020801202.00220.007NBR     ATF-155
W392200802220.00236.0011.50CAT     WTB-159
R582340802234.50250.006.30NBR/BFT     ATF-168
R582796401279.00300.008.10FKM/BFT     ATF-161
R582840801284.50300.006.30NBR/BFT     ATF-101
R582920801292.00306.0012PTFE     ATF-143
R583040802304.50320.006.30GRT     ATF-166
R586050801605.50630.008.10NBR/BFT     ATF-135
R586820801682.00710.009.50NBR/BFT     ATF-134
