VRE: Rotary V Rings Manufacturers, Suppliers, Exporters

Max Spare : V04

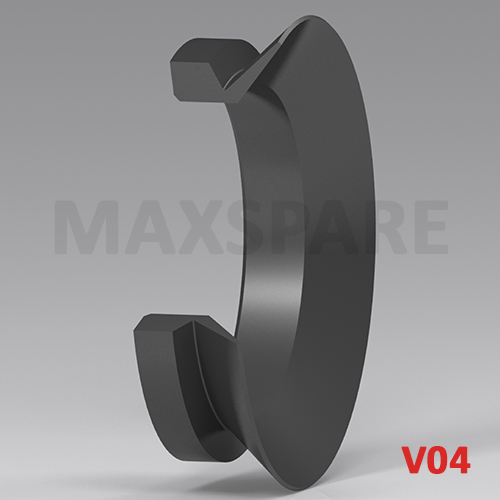

Profile : V-Rings

MATERIALS
NBR
MAX OPERATING CONDITION
Pressure :
Temperature : -30° to +100°
Speed :10 m/s

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
V040181001	18.00	25.50	3.8/7.50	NBR	VR-909
V040280701	28.00	35.00	9.00/13.00	NBR	VR-211
V040363001	36.00	46.00	5.50/12.50	EPDM	VR-735
V040493001	49.00	59.00	5.50/12.50	EPDM	VR-733
V040633001	63.00	75.00	6.80/11.20	EPDM	VR-736
V040850701	85.00	125.00	10/25	NBR	VR-505
V041840801	184.00	228.20	8.00/15.00	NBR	VR-161
V041983001	198.00	228.00	14.30/35.70	EPDM	VR-734
V041986301	198.00	258.00	32.50/65	FKM	VR-748
V042136301	213.00	273.00	32.5/65	FKM	VR-413
V042150801	215.00	259.00	8.00/23.00	NBR	VR-169
V042473001	247.00	277.00	14.30/35.70	EPDM	VR-732
V042600801	260.00	304.00	10.00/20.00	NBR	VR-159
V042941901	294.00	354.00	32.5/65	NEOPRENE	VR-362
V042990701	299.00	359.00	32.50/65	NBR	VR-815
V043046301	304.00	364.00	32.50/65.00	FKM	VR-889
V043280801	328.00	378.00	19.50/30.00	NBR	VR-155
V043526301	352.00	412.00	32.5/65	FKM	VR-463
V043760701	376.00	436.00	32.5/65.00	NBR	VR-154
V043916301	391.00	451.00	32.5/65	FKM	VR-397
V044010701	401.00	461.00	32.5/65	NBR	VR-455
V044106301	410.00	470.00	32.50/65.00	FKM	VR-894
V044290701	429.00	489.00	32.5/65	NBR	VR-454
V044340701	434.00	494.00	32.50/65.00	NBR	VR-814
V044680701	468.00	528.00	32.5/65	NBR	VR-452
V044886301	488.00	548.00	32.50/65.00	FKM	VR-943
V044976301	497.00	557.00	32.50/65.00	FKM	VR-890
V04020701	502.00	562.00	32.50/65	NBR	VR-749
V045266301	526.00	586.00	32.50/65	FKM	VR-378
V045360701	536.00	596.00	32.50/65	NBR	VR-807
V045410701	541.00	601.00	32.5/65	NBR	VR-774
V045550701	555.00	615.00	32.50/65.00	NBR	VR-450
V045656301	565.00	625.00	32.5/65	FKM	VR-435
V045820701	582.00	642.00	32.5/65	NBR	VR-492
V046120701	612.00	672.00	32.50/65.00	NBR	VR-958
V046500701	650.00	710.00	32.5/65.00	NBR	VR-228
V046600701	660.00	720.00	32.50/65	NBR	VR-706
V047200701	720.00	762.00	32.5/65	NBR	VR-421
V048056301	805.00	865.00	32.50/65	FKM	VR-388
V048800701	880.00	940.00	32.50/65	NBR/FABRIC	VR-319
V049420701	942.00	1002.00	32.50/65	NBR	VR-725
V04	1065.00	1125.00	65	NBR	VR-296
